CAUTION
GI-11prose procedureINSTALLATION OF MOBILE TWO-WAY RADIO SYSTEM
If a mobile two-way radio system is installed improperly or if a high-powered type is used, the EGI system and other systems may be affected.
When the vehicle is to be equipped with a mobile two-way radio, observe the following precautions:

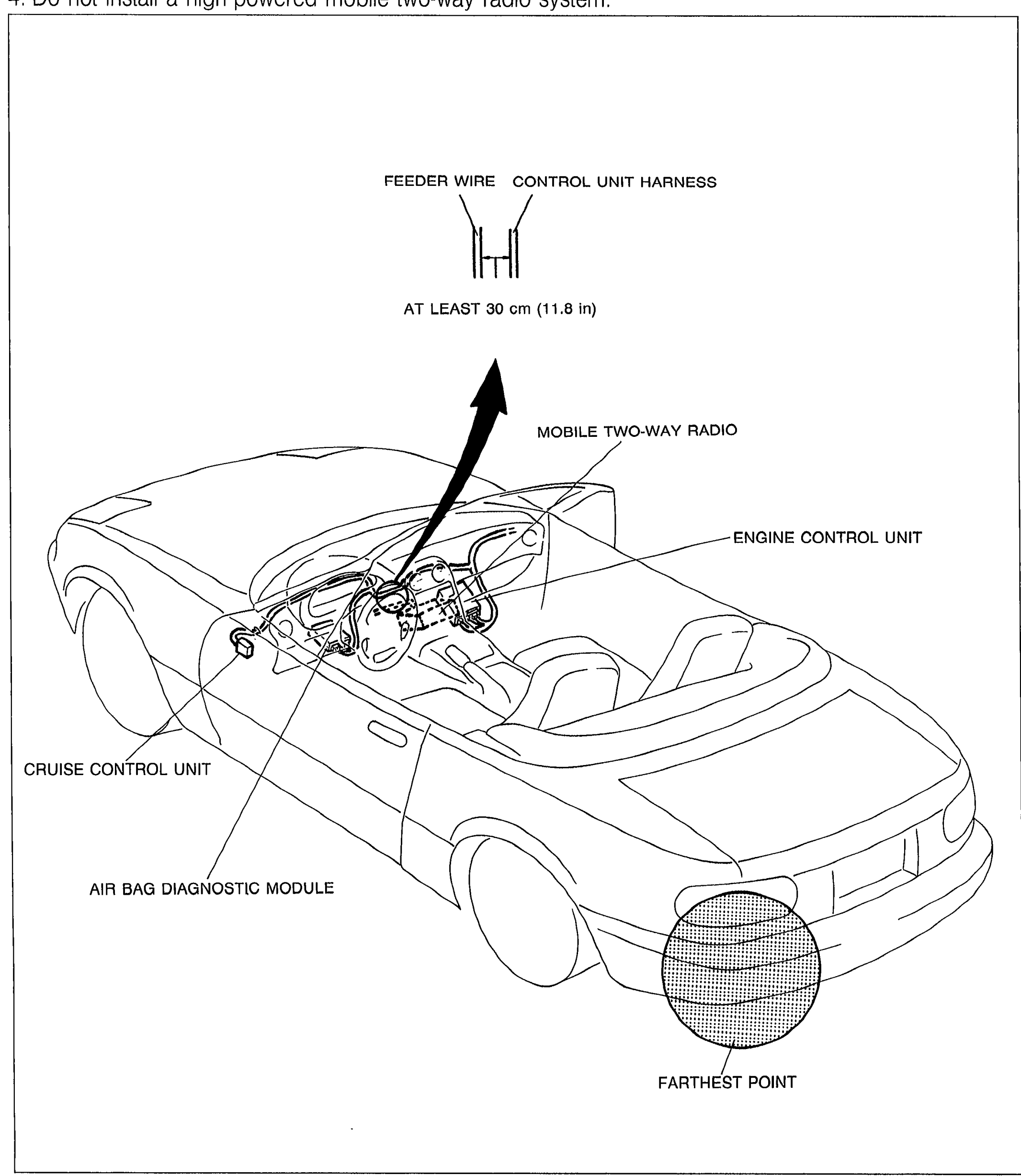

- 1Install the antenna at the farthest point from control units.
![Cutaway view of MX-5 showing component locations for mobile two-way radio installation. Callouts: FEEDER WIRE and CONTROL UNIT HARNESS (top, with 'AT LEAST 30 cm [11.8 in]' clearance arrow); MOBILE TWO-WAY RADIO (center, mounted between seats); ENGINE CONTROL UNIT (passenger-side area); CRUISE CONTROL UNIT (driver-side floor); AIR BAG DIAGNOSTIC MODULE (center floor); FARTHEST POINT (rear, with shaded antenna mount location).](/images/page-0013_fig1.png)
05UGIX-013 - 2Install the antenna feeder as far as possible from the control unit harnesses (at least 30 cm [11.8 in]).
- 3Ensure that the antenna and feeder are properly adjusted.
- 4Do not install a high-powered mobile two-way radio system.
