CAUTION (continued)
GI-16prose procedureInspection (continued)

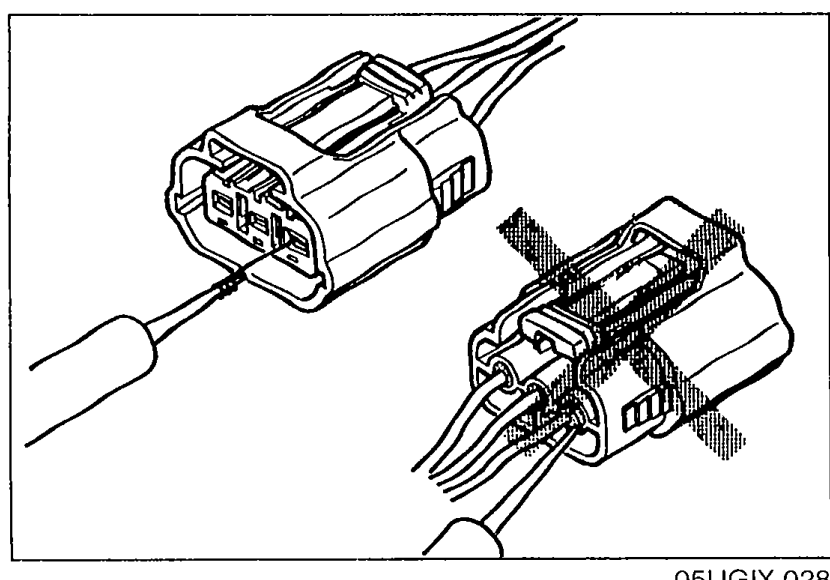

- 2Check the terminals of waterproof connectors from the connector side, as they cannot be accessed from the wire harness side.
05UGIX-028
CAUTION
Use fine wire to prevent damage to the terminal.
Do not damage the terminal when inserting the tester lead.
Terminals
Inspection
Pull lightly on individual wires to check that they are secured in the terminal.
Replacement of terminals
Use the appropriate tools to remove the terminal as shown. When installing the terminal, be sure to insert it until it locks securely.
<Female>
Insert a thin piece of metal from the terminal side of the connector, and then, with the terminal locking tab pressed down, pull the terminal out from the connector.
<Male>
Same as the female type.
Sensors, Switches, and Relays
Handle sensors, switches, and relays carefully. Do not drop them or strike them against other objects.
