CAUTION — Wire Harness, Fuse Replacement

GI-17prose procedure
Continued from GI-16

Wire Harness

Wiring color codes

Two-color wires are indicated by a two-color code symbol. The first letter indicates the base color of the wire and the second the color of the stripe.

Wiring color codes

B
COLORBlack
BR
COLORBrown
G
COLORGreen
GY
COLORGray
L
COLORBlue
LB
COLORLight Blue
LG
COLORLight Green
O
COLOROrange
P
COLORPink
R
COLORRed
V
COLORViolet
W
COLORWhite
Y
COLORYellow

Fuse

Replacement

  1. 1
    When replacing a fuse, be sure to replace it with one of the specified capacity.
    If a fuse again fails after it has been replaced, the circuit probably has a short and the wiring should be checked.
  2. 2

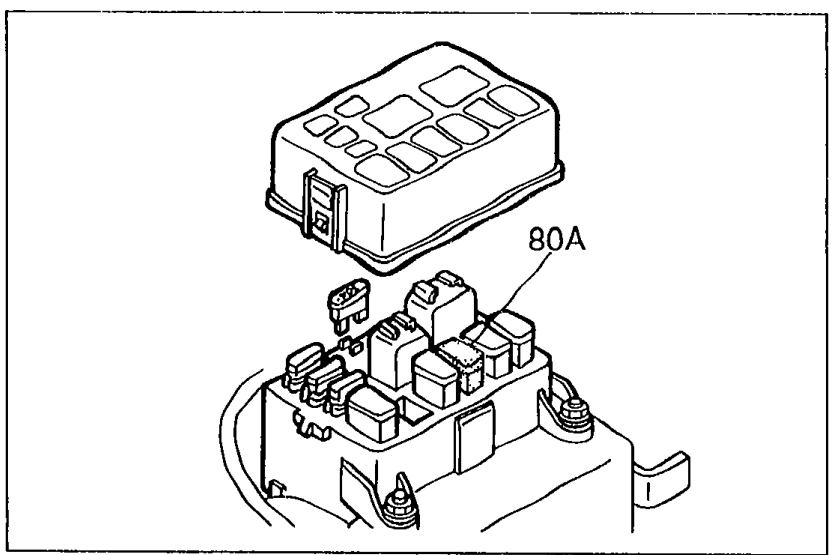

    Be sure the negative battery terminal is disconnected before replacing a main fuse (80A).
    Fuse box with a callout pointing to the 80A main fuse.
    05UGIX-031
  3. 3

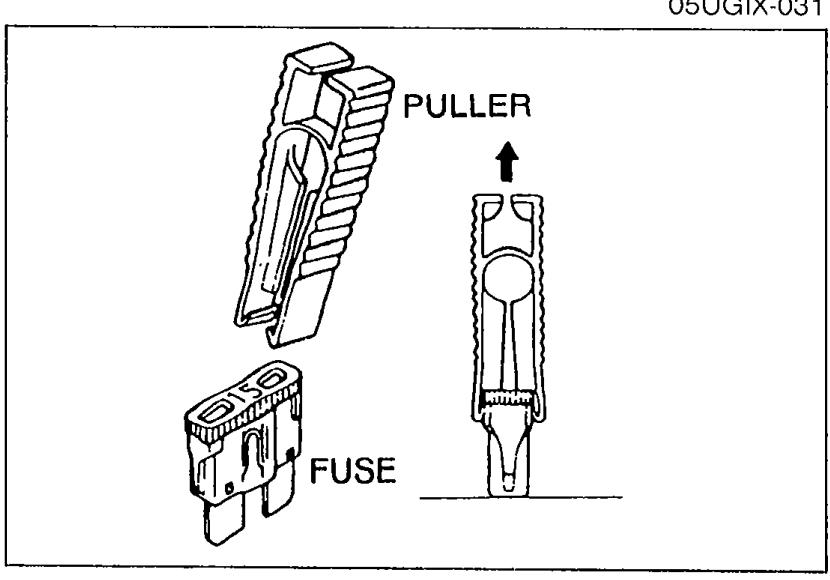

    When replacing a pullout fuse, use the fuse puller supplied in the fuse box cover.
    Pullout fuse and supplied fuse PULLER tool, with arrows showing the puller engaging the fuse for removal.
    9MUGIX-032
