ENGINE SPEED SENSING POWER STEERING — DRIVE BELT
N-22prose procedureRemoval note
Pressure pipe
Mark the pressure pipe for reference during installation before loosening.
DRIVE BELT
Inspection
Drive belt inspection
- 1Check the drive belt for wear, cracks, and fraying. Replace if necessary.

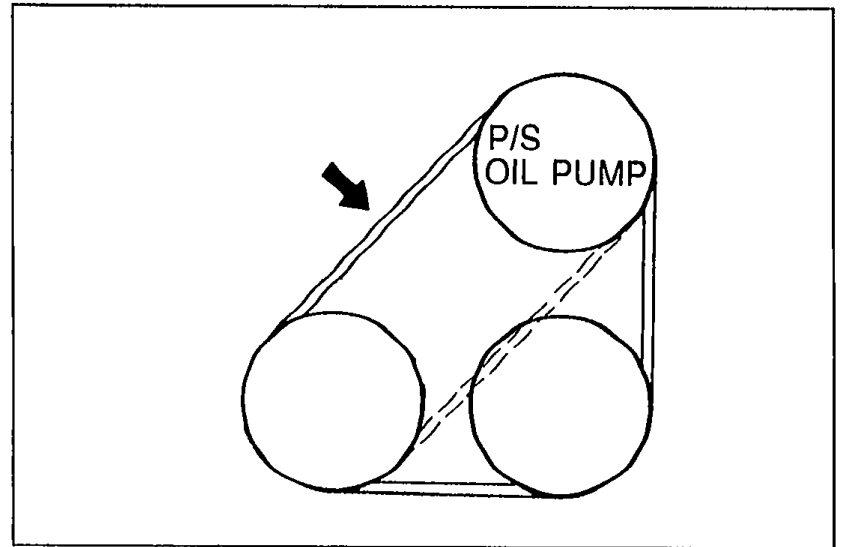

- 2Check the drive belt deflection by applying mode rate pressure (98 N, 10 kg, 22 lb) midway between the pulleys. Adjust if necessary.Belt tension can be measured between any pulleys.
05U0NX-038
| Specification | Value |
|---|---|
| Deflection (new)Depressed at 98 N (10 kg, 22 lb) | 8—9 mm (0.31—0.35 in)mm |
| Deflection (used)Depressed at 98 N (10 kg, 22 lb) | 9—10 mm (0.35—0.39 in)mm |
| Tension (new) | 491—589 N (50—60 kg, 110—132 lb)N |
| Tension (used) | 422—491 N (43—50 kg, 95—110 lb)N |
Deflection (new)Depressed at 98 N (10 kg, 22 lb)
8—9 mm (0.31—0.35 in)mm
Deflection (used)Depressed at 98 N (10 kg, 22 lb)
9—10 mm (0.35—0.39 in)mm
Tension (new)
491—589 N (50—60 kg, 110—132 lb)N
Tension (used)
422—491 N (43—50 kg, 95—110 lb)N
Adjustment
Drive belt adjustment

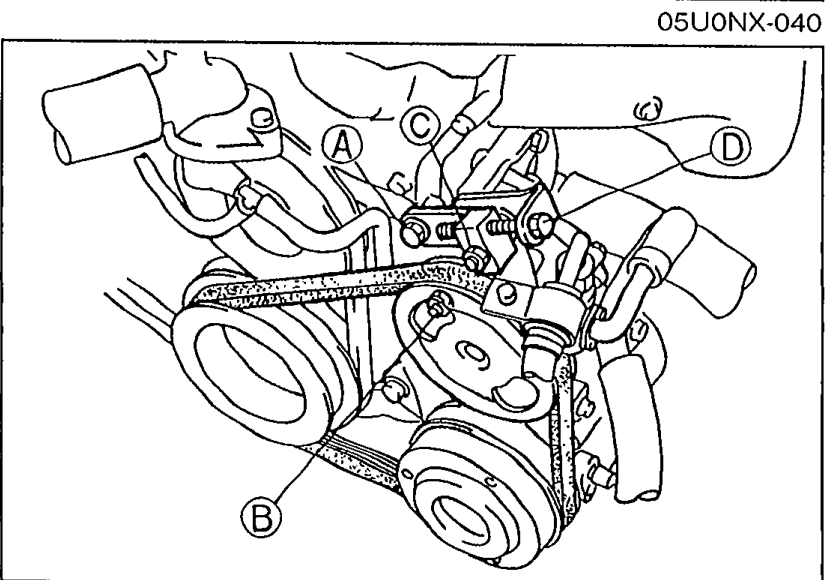

- 1Loosen P/S oil pump bolt (A) and nuts (B) and (C). Adjust the belt deflection by turning the adjusting bolt (D).
05U0NX-040
| Specification | Value |
|---|---|
| Tightening torque (A)P/S oil pump bolt | 31 - 46N·m |
| Tightening torque (B)Nut | 36 - 54N·m |
| Tightening torque (C)Nut | 19 - 25N·m |
Tightening torque (A)P/S oil pump bolt
31 - 46N·m
Tightening torque (B)Nut
36 - 54N·m
Tightening torque (C)Nut
19 - 25N·m
Replacement
Drive belt replacement

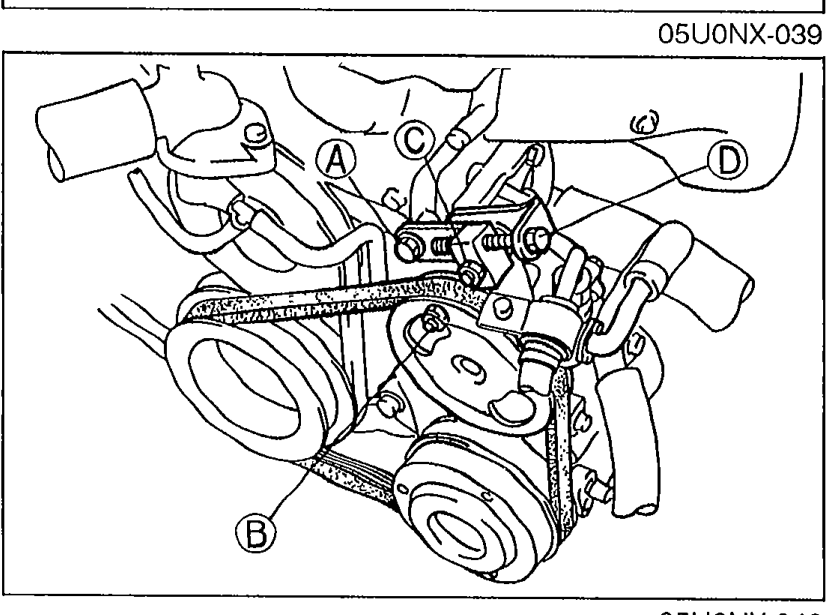

- 1Loosen bolt (A), nuts (B) and (C), and adjusting bolt (D).
05U0NX-041 - 2Remove and replace the drive belt.
- 3Adjust the deflection (tension). (Refer to above.)
