MANUAL STEERING
N-7prose procedureRemoval note: Tie-rod end
- 1Loosen the tie-rod end nut.

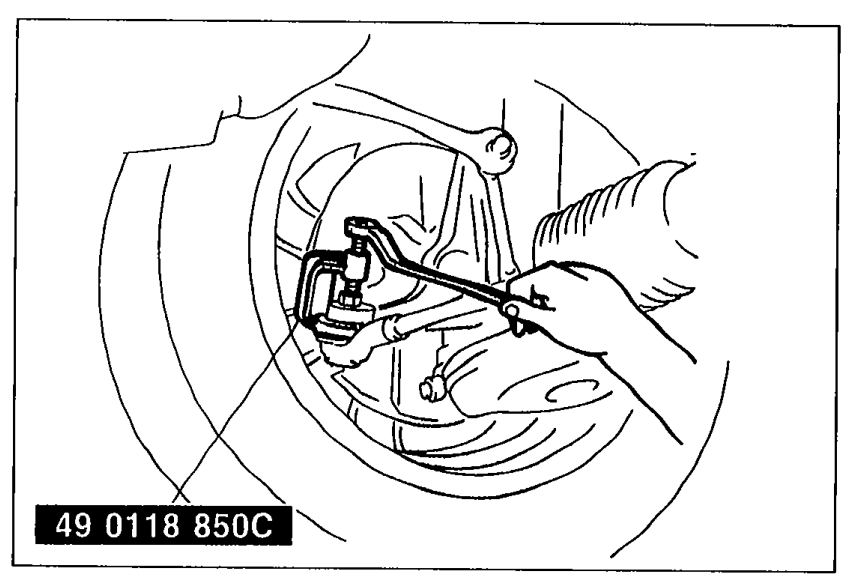

- 2With the nut protecting the tie-rod end stud, separate the tie-rod end from the steering knuckle with the SST.
9MU0NX-032
Locknut
Before loosening the locknut from the tie-rod end, make a mark for reference when tightening.
Tie-rod end boot
CAUTION
Do not scar the part where the boot is attached to the tie-rod end.
Secure the tie-rod end in a vise. Place a chisel against the boot and hold it at the angle shown. Remove the boot by tapping it with a hammer.
Installation note: Tie-rod end boot
Put a small amount of grease (lithium base) into the new boot and set it onto the tie-rod end. Press the boot onto the tie-rod end with the SST and a press.
