OIL PUMP
D-13prose procedureAssembly Note
Oil seal
Oil seal assembly
- 1Apply a small amount of clean engine oil to the lip of a new oil seal.
- 2Push the oil seal slightly in by hand.

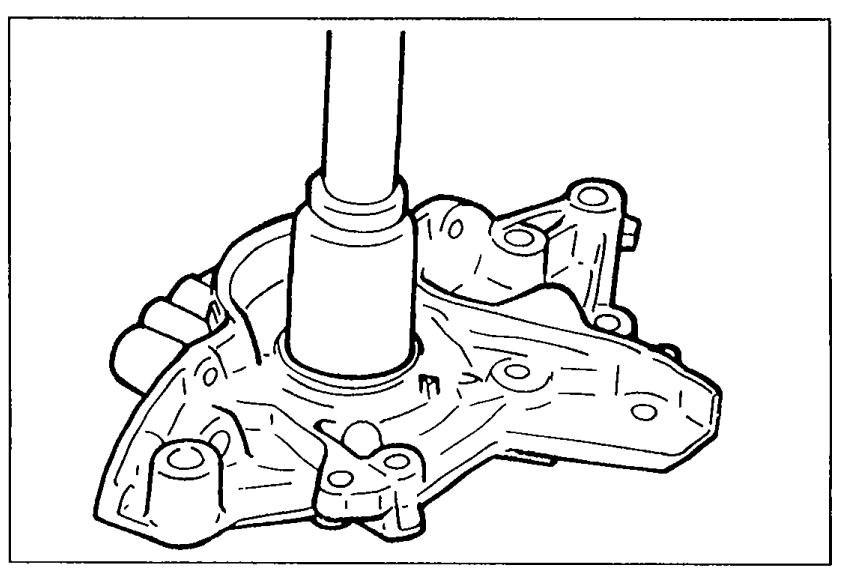

- 3Press the oil seal in evenly with a suitable pipe.
05U0DX-035
CAUTION
The oil seal must be pressed in until it is flush with the edge of the oil pump body.
| Specification | Value |
|---|---|
| Oil seal outer diameter | 44 mm (1.73 in) |
Oil seal outer diameter
44 mm (1.73 in)
