OIL PRESSURE

D-4prose procedure

PREPARATION

Part number	Name	Usage
49 0187 280	Gauge, oil pressure	For inspection of oil pressure

49 0187 280

NameGauge, oil pressure

UsageFor inspection of oil pressure

1

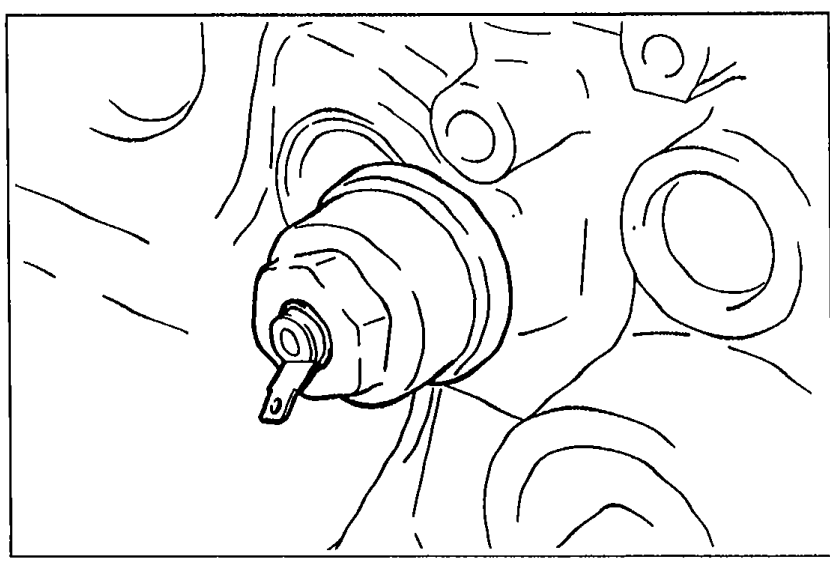

Remove the oil pressure gauge sender unit.
05U0DX-007
2

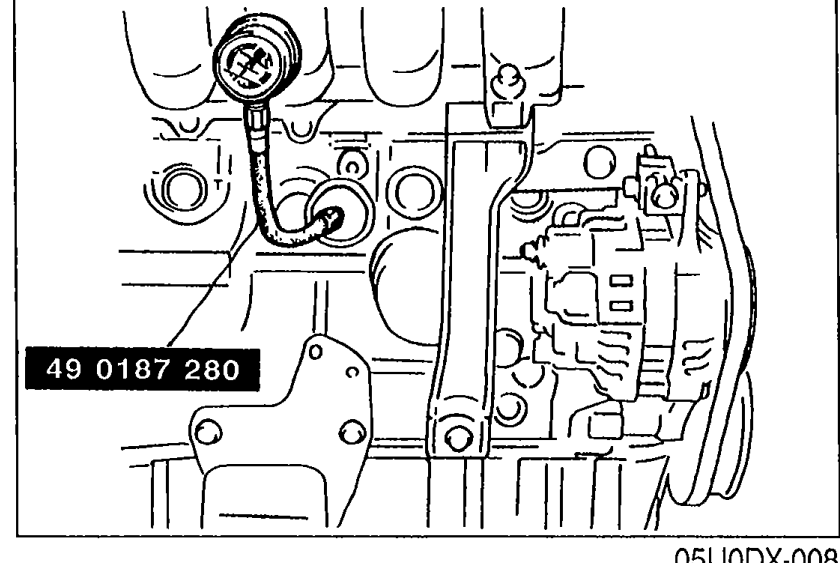

Screw the SST into the oil pressure gauge sender unit installation hole.
05U0DX-008
3
Warm up the engine to normal operating temperature.
4
Run the engine at 1,000 rpm and 3,000 rpm, and note the gauge reading.
5
If the pressure is not as specified, check for the cause and repair. (Refer to Troubleshooting Guide.)
6
Remove the SST and install the oil pressure gauge sender unit.

Specification	Value
Oil pressure1,000 rpm	196—294 kPa (2.0—3.0 kg/cm², 28—43 psi)
Oil pressure3,000 rpm	294—392 kPa (3.0—4.0 kg/cm², 43—57 psi)
Tightening torque (oil pressure gauge sender unit)	12 - 18N·m

Oil pressure1,000 rpm

196—294 kPa (2.0—3.0 kg/cm², 28—43 psi)

Oil pressure3,000 rpm

294—392 kPa (3.0—4.0 kg/cm², 43—57 psi)

Tightening torque (oil pressure gauge sender unit)

12 - 18N·m
