WATER PUMP

E-10prose procedure
Continued from E-9

Removal Note

P/S oil pump

P/S Oil Pump Removal Note

  1. 1
    Remove the P/S oil pump with the hoses still connected.

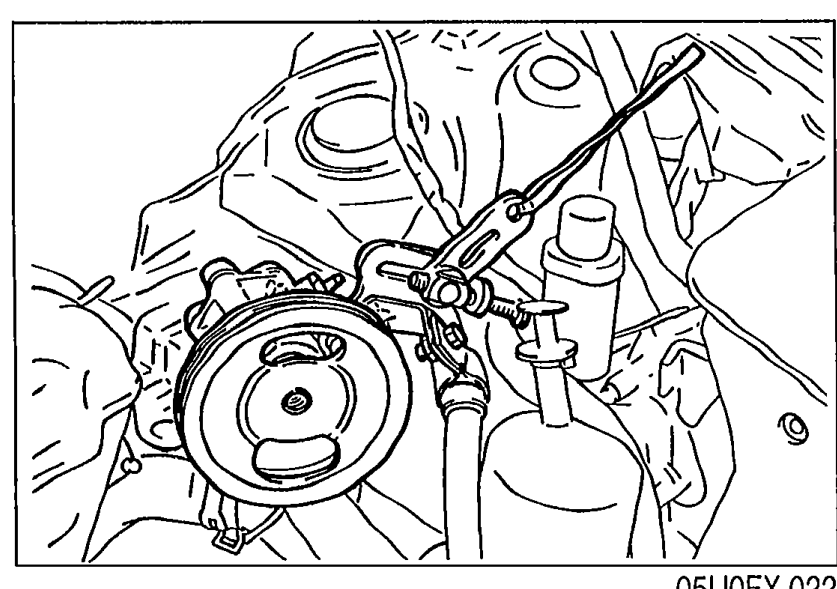

    Engine bay illustration showing the P/S (power steering) oil pump in place with its pulley visible and hoses connected, for the Removal Note step (remove pump with hoses still connected).
    05U0EX-022
  2. 2
    Position the pump away from the engine and affix it with wire.

Steps After Installation

Steps After Installation (Water Pump)

  1. 1
    Fill the radiator with the specified amount and type of engine coolant. (Refer to page E-5.)
  2. 2
    Connect the negative battery cable.
  3. 3
    Start the engine and check for leaks.
