THERMOSTAT
E-8prose procedureREMOVAL / INSPECTION / INSTALLATION
CAUTION
• Obtain the code number and deactivate the audio anti-theft system before disconnecting the battery. (Refer to page T-113.)
• Position the hose clamp in the original location on the hose, and squeeze the clamp lightly with large pliers to ensure a good fit.

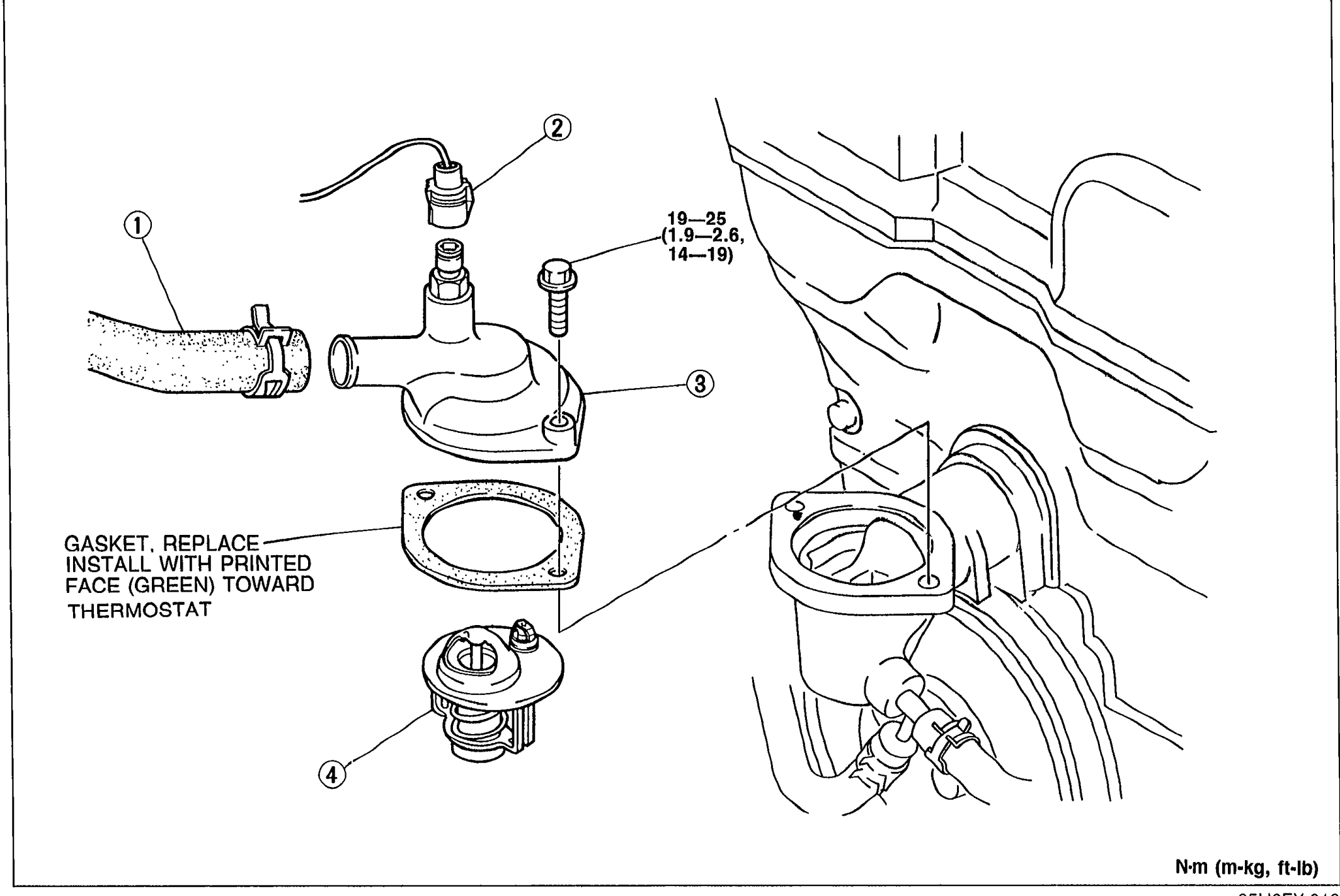

Thermostat Removal / Installation
- 1Disconnect the negative battery cable.
- 2Drain the engine coolant.
- 3Remove in the order shown in the figure.
05U0EX-018 - 4Install in the reverse order of removal.Gasket: replace. Install with printed face (green) toward thermostat.
| Specification | Value |
|---|---|
| Thermostat cover | ≈186 - 245N·m |
Thermostat cover
186 - 245N·m
Removal/Installation callouts
1
PartRadiator hose upper
2
PartWater thermoswitch connector
3
PartThermostat cover
4
PartThermostat (Inspection ... page E-8)
INSPECTION

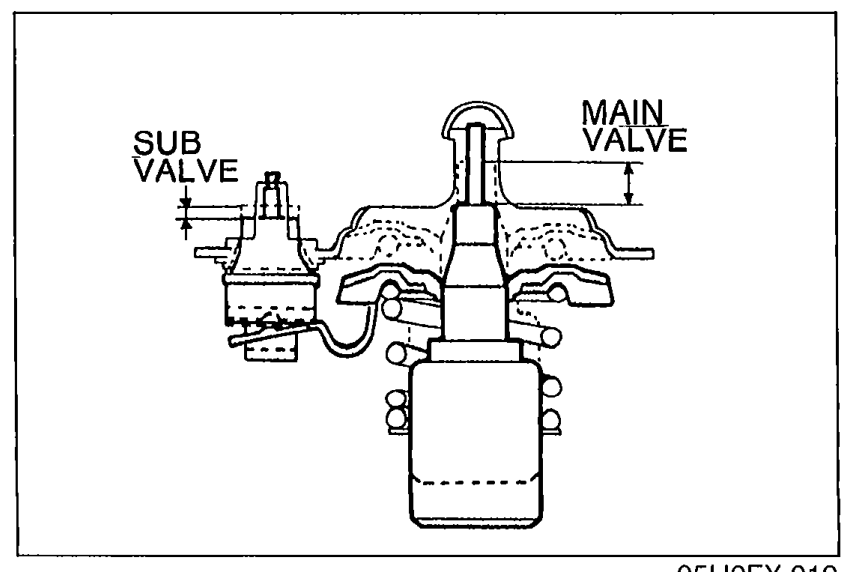

Thermostat Inspection
- 1Visually check that the thermostat valve is airtight.
05U0EX-019 - 2Place the thermostat and a thermometer in water.
- 3Heat the water and check the following: initial-opening temperature, full-open temperature, and full-open lift.
| Specification | Value |
|---|---|
| Initial-opening temperature (Main) | 86.5—89.5°C (188—193°F) |
| Initial-opening temperature (Sub) | 83.5—86.5°C (182—188°F) |
| Full-open temperature | 100°C (212°F) |
| Full-open lift (Main) | 8.0mm (0.31 in) min. |
| Full-open lift (Sub) | 1.5mm (0.06 in) min. |
Initial-opening temperature (Main)
86.5—89.5°C (188—193°F)
Initial-opening temperature (Sub)
83.5—86.5°C (182—188°F)
Full-open temperature
100°C (212°F)
Full-open lift (Main)
8.0mm (0.31 in) min.
Full-open lift (Sub)
1.5mm (0.06 in) min.
