ELECTRIC COOLING FAN SYSTEM

E-11wiring diagram

WITH A/C variant shown in dashed outline on system circuit (A/C relay, pressure switch, magnetic clutch, A/C switch, additional fan motor).

SYSTEM CIRCUIT

System Inspection

  1. 1
    Jump across the fan test (TFA) terminal and the ground (GND) terminal of the diagnosis connector.

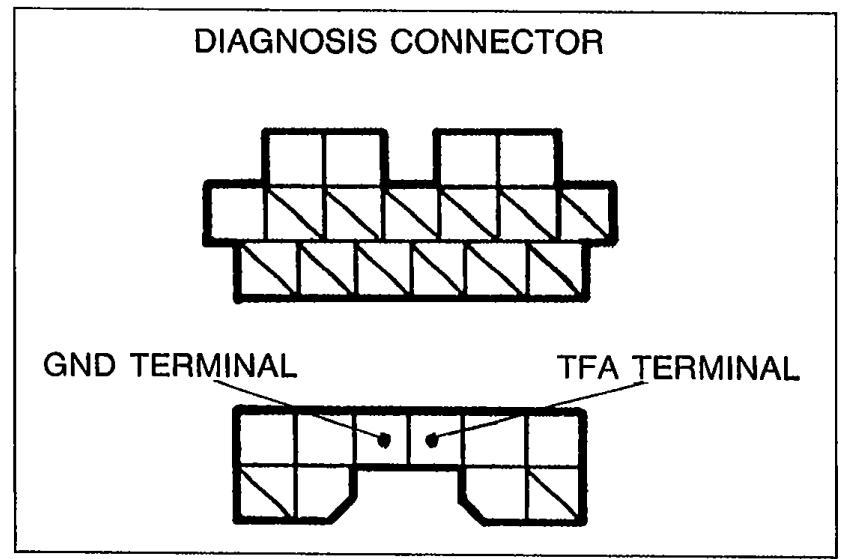

    Diagnosis connector pin layout showing GND TERMINAL and TFA TERMINAL positions on the connector face.
    05U0EX-024
  2. 2
    Turn the ignition switch ON and verify that the fan operates. If the fan does not operate, inspect the cooling fan system components and wire harness.
  3. 3

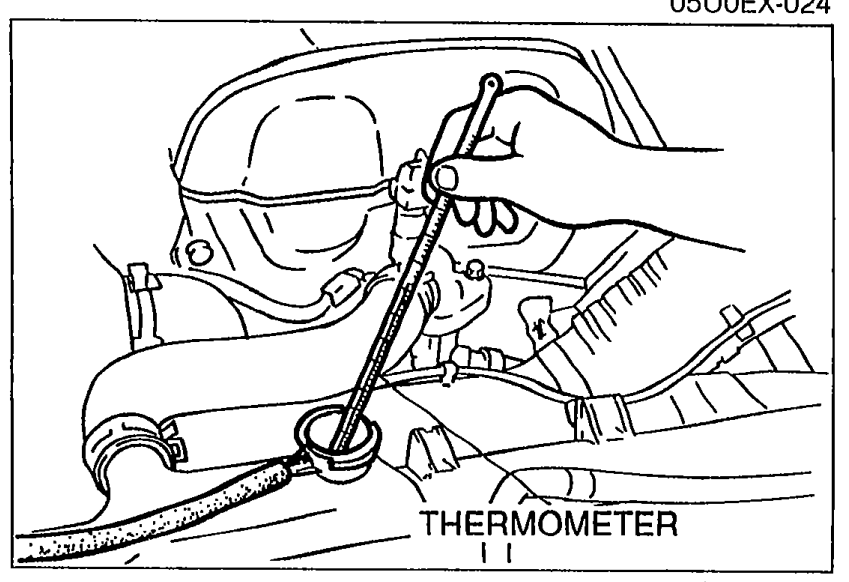

    Remove the radiator cap and place a thermometer in the radiator filler neck.
    Illustration of a thermometer placed in the radiator filler neck, used to monitor coolant temperature during the fan operation test.
    05U0EX-025
  4. 4
    Start the engine.
  5. 5
    Verify that the fan operates when the coolant temperature reaches approx. 97 degrees C (207 degrees F). If the fan does not operate, check the water thermoswitch. (Refer to page E-13.)
