THERMOSTAT, WATER PUMP

E-9prose procedure

Steps After Installation

Steps After Installation (Thermostat)

1
Fill the radiator with the specified amount and type of engine coolant. (Refer to page E-5.)
2
Connect the negative battery cable.
3
Start the engine and check for leaks.

WATER PUMP

REMOVAL / INSTALLATION

CAUTION

• Obtain the code number and deactivate the audio anti-theft system before disconnecting the battery. (Refer to page T-113.) • Do not disassemble the water pump. If a problem is found, replace the pump as a unit.

Water Pump Removal / Installation

1
Disconnect the negative battery cable.
2
Drain the engine coolant.
3

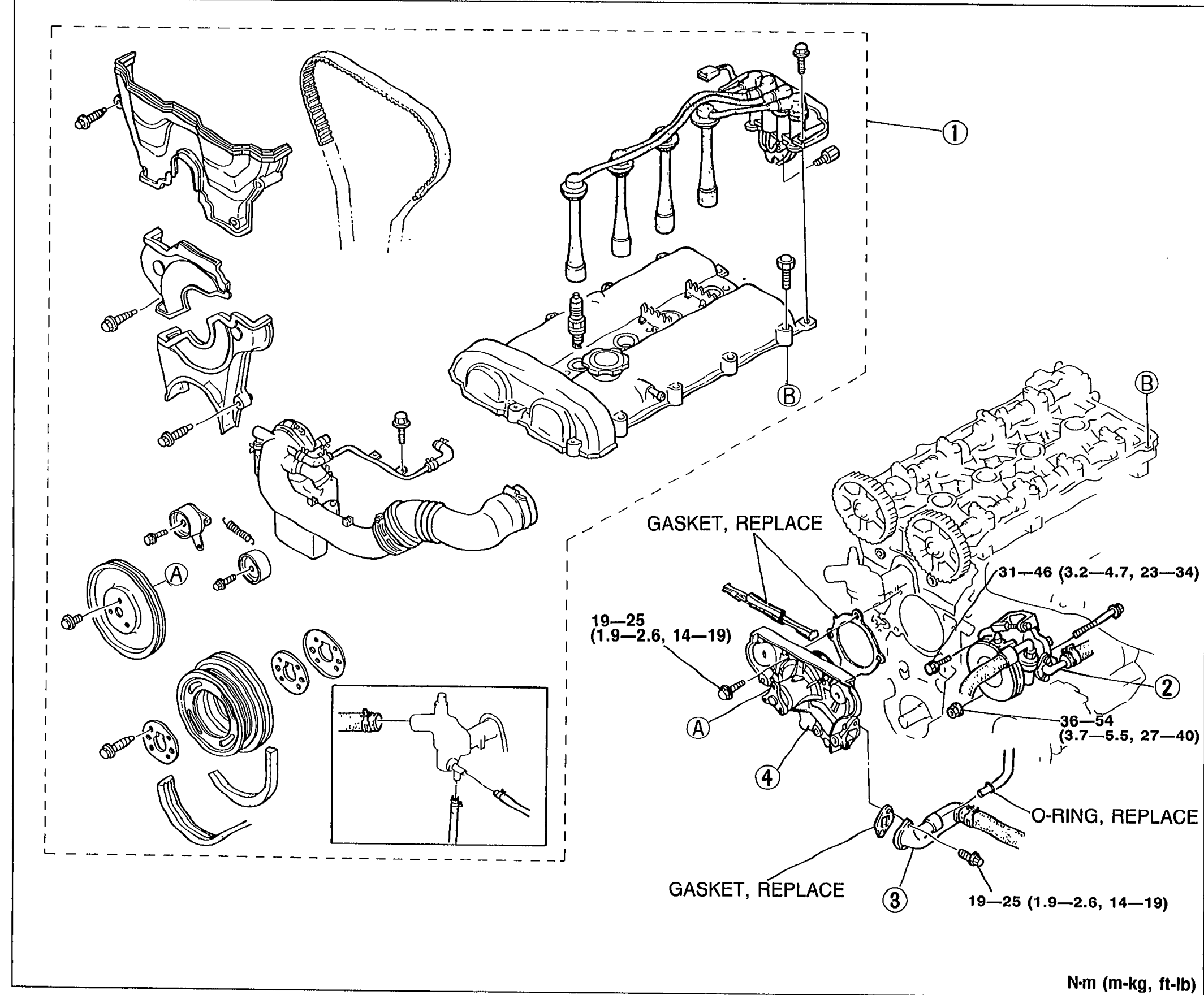

Remove in the order shown in the figure, referring to Removal Note.
05U0EX-021
4
Install in the reverse order of removal.
Replace gaskets and O-ring.

Specification	Value
Water pump bolt torque (typical)two locations on water pump	≈186 - 245N·m
Upper bolt	≈304 - 451N·m
Fastener	≈353 - 530N·m

Water pump bolt torque (typical)two locations on water pump

186 - 245N·m

Upper bolt

304 - 451N·m

Fastener

353 - 530N·m

Removal/Installation callouts

No.	Part	Note
1	Timing belt	Service ... page B-12
2	P/S oil pump	Removal Note ... page E-10
3	Water inlet pipe
4	Water pump	Inspect for cracks, damaged mounting surface, bearing condition, and leakage

PartTiming belt

NoteService ... page B-12

PartP/S oil pump

NoteRemoval Note ... page E-10

PartWater inlet pipe

Note

PartWater pump

NoteInspect for cracks, damaged mounting surface, bearing condition, and leakage
