CLUTCH UNIT, RELEASE BEARING, CLUTCH COVER, CLUTCH DISC

H-17prose procedure

Clutch disc

1
Clean the clutch disc splines and main drive gear splines, and apply Mori White TA No.2 or equivalent organic molybdeum grease.
05U0HX-029
2

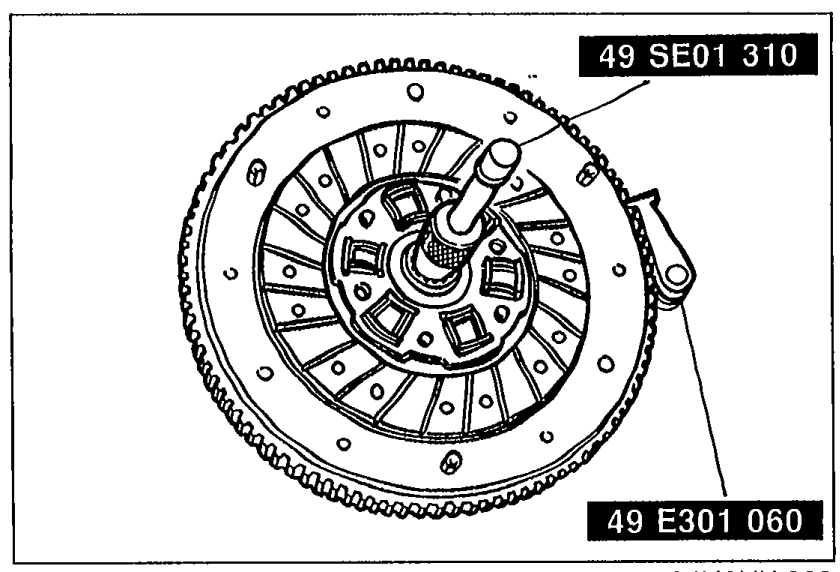

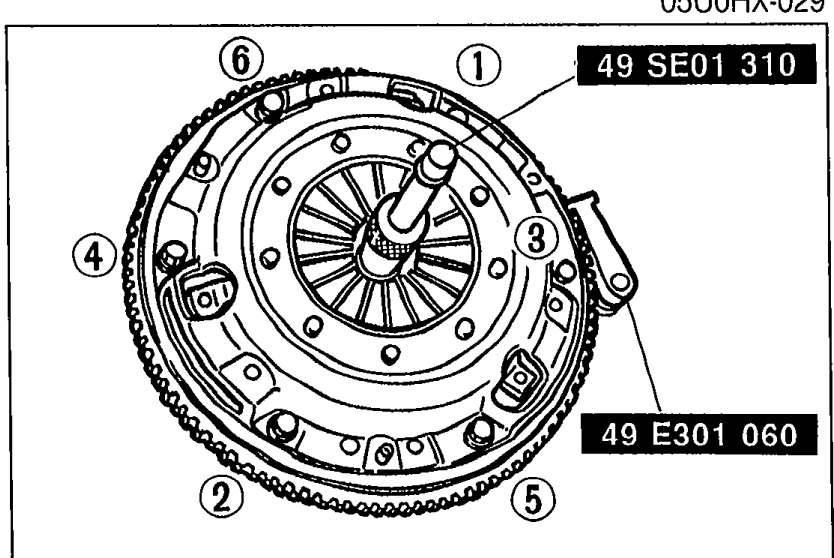

Hold the clutch disc in position with the SST.

Specification	Value
Clutch cover bolts	18 - 26N·m

Clutch cover bolts

18 - 26N·m

NOTE

The clutch release bearing is a sealed bearing and must not be washed in solvent.

Turn the bearing while applying force in the axial direction. If the bearing sticks or has excessive resistance, replace it.

NOTE

Minor scoring or burning should be removed with emery paper.

1
Inspect the contact surface of the clutch disc for scoring, cracks, and burning, repair or replace as necessary.
05U0HX-031
2
Inspect the contact surface of the clutch release bearing for wear and cracks.
3
If there is wear or cracks, replace the clutch cover.

NOTE

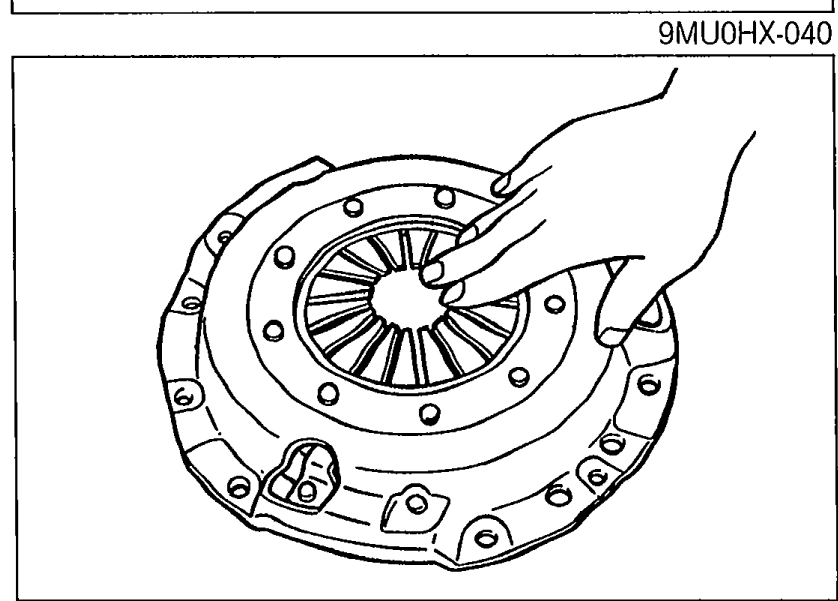

Use sandpaper if the trouble is minor.

1

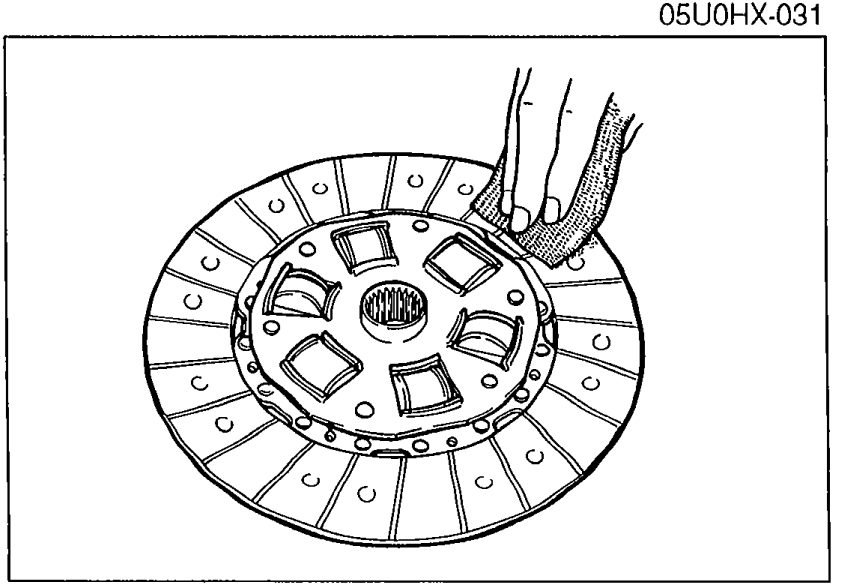

Inspect the lining surface for burning and oil contamination. Replace the clutch disc if it is badly burned or oil soaked.
05U0HX-032
2
Inspect for loose facing rivets or torsion rubbers. Replace the clutch disc if any are loose.
