CLUTCH PEDAL, CLUTCH MASTER CYLINDER

H-7prose procedure
Continued from H-6

Removal Note

Spring

Removal Note — Spring

  1. 1
    Place the clutch pedal assembly in the vise.

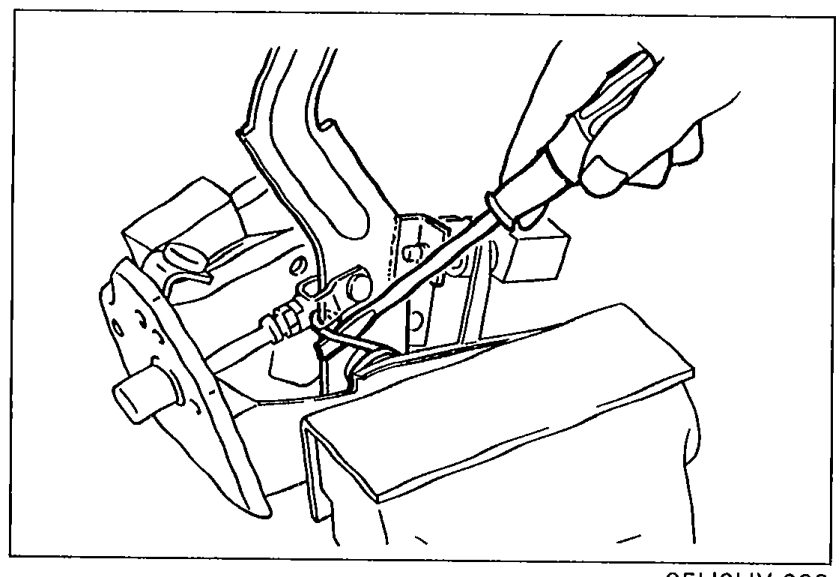

    Photo of the clutch pedal assembly held in a vise, technician using pliers to pry the return spring off the clutch pedal during removal.
    05U0HX-008
  2. 2
    Pry the spring off the clutch pedal as shown in the figure.

Installation Note

Spring

Installation Note — Spring

  1. 1
    Place the clutch pedal assembly in the vise.

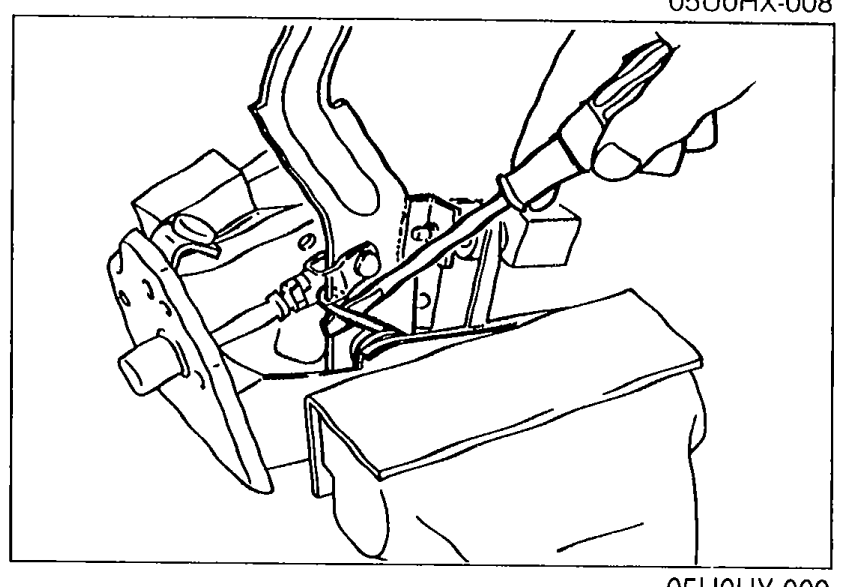

    Photo of the clutch pedal assembly in the vise during installation, with the technician prying the return spring back onto the clutch pedal.
    05U0HX-009
  2. 2
    Pry the spring on the clutch pedal as shown in the figure.
  3. 3
    Adjust the clutch pedal height and free play after installation. (Refer to page H-5.)

CLUTCH MASTER CYLINDER

PREPARATION

SST

SST

49 0259 770B
NameWrench, flare nut
UsageFor disconnecting and connecting clutch pipe
