CLUTCH PEDAL - Adjustment

H-5prose procedure

ADJUSTMENT

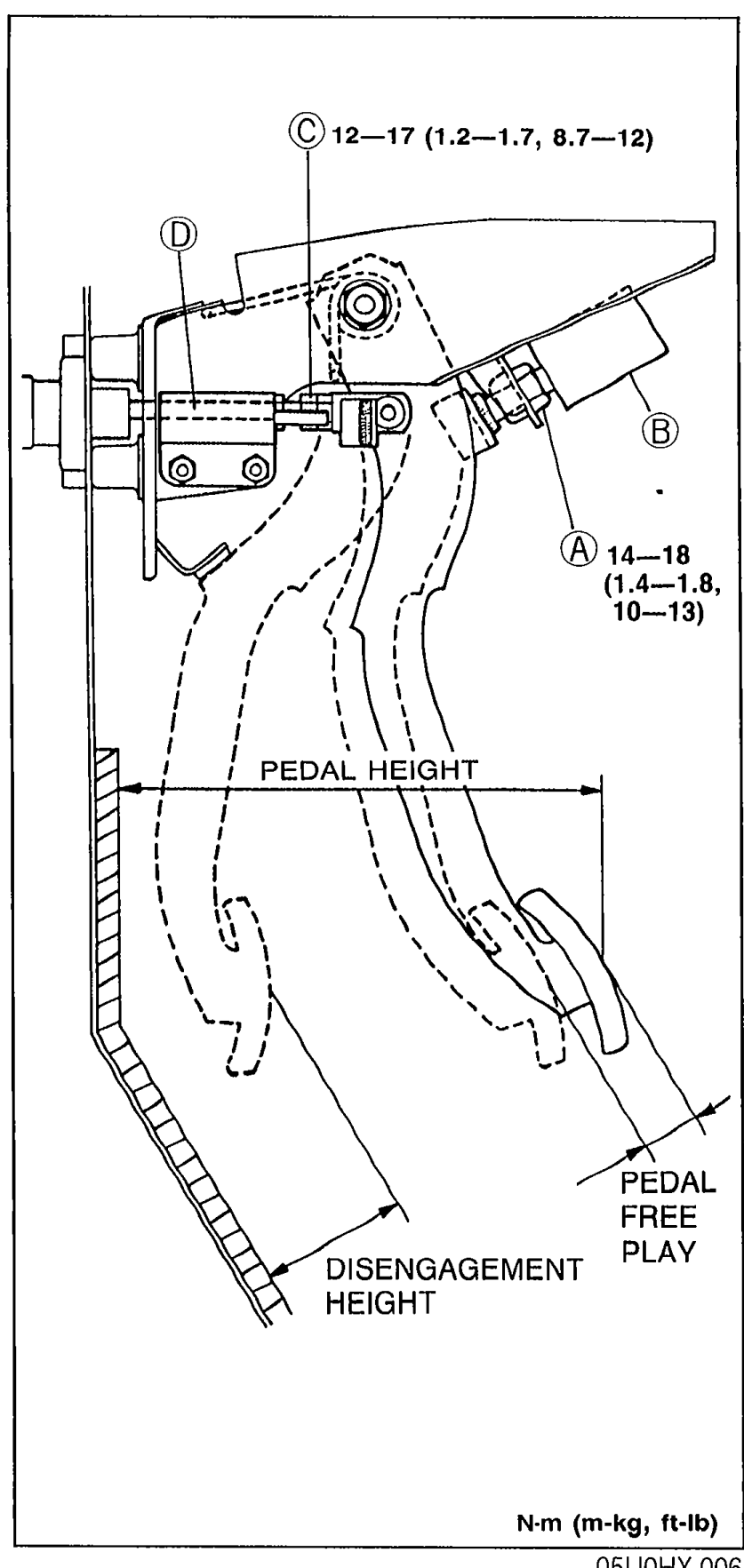

Measure the distance from the upper surface of the pedal pad to the carpet.

Specification	Value
Pedal heightWith carpet	175—185mm (6.89—7.28 in)

Pedal heightWith carpet

175—185mm (6.89—7.28 in)

If necessary, adjust the pedal height.

1
Loosen locknut A and turn clutch switch B until the height is correct.
05U0HX-006
2
Tighten locknut A.
Tightening torque: 14—18 N·m (1.4—1.8 m-kg, 10—13 ft-lb)
3
After adjustment, inspect the pedal free play.

Depress the clutch pedal by hand until clutch resistance is felt.

Specification	Value
Pedal free play	0.6—3.1mm (0.02—0.12 in)
Total pedal free play	5—13mm (0.20—0.51 in)

Pedal free play

0.6—3.1mm (0.02—0.12 in)

Total pedal free play

5—13mm (0.20—0.51 in)

If necessary, adjust the pedal free play.

1
Loosen locknut C and turn push rod D until pedal free play is correct.
2
Verify that the disengagement height as measured from the upper surface of the pedal to the carpet is correct when the pedal is fully depressed.
Minimum disengagement height: 68 mm (2.68 in) (With carpet)
3
Tighten locknut C.
Tightening torque: 12—17 N·m (1.2—1.7 m-kg, 8.7—12 ft-lb)
4
After adjustment, inspect the pedal height.

Specification	Value
Minimum disengagement heightWith carpet, pedal fully depressed	68mm (2.68 in)

Minimum disengagement heightWith carpet, pedal fully depressed

68mm (2.68 in)
