CHARGING SYSTEM - Battery Replacement (continued)

G-11prose procedure
Continued from G-10

Battery Replacement (continued)

  1. 11
    Trim off the shadded area of the battery cover as shown for proper fitting to new battery.

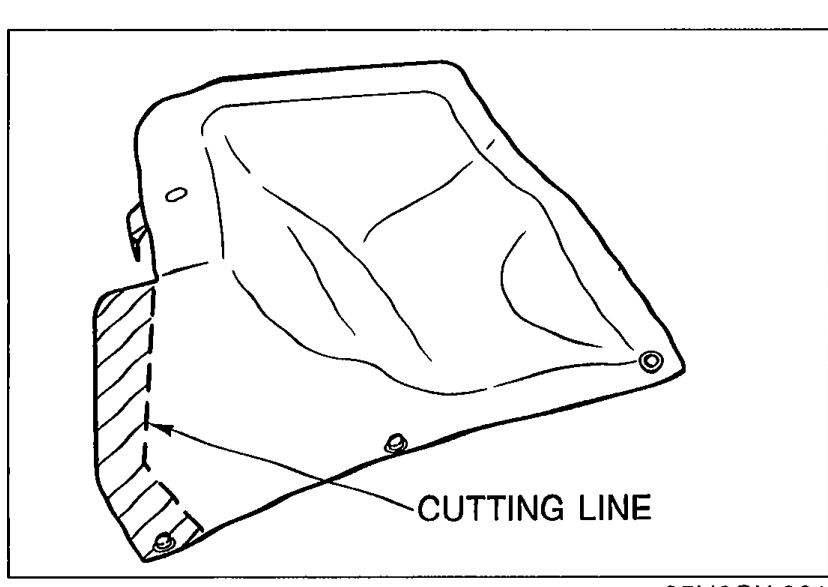

    Battery cover illustration showing the shaded/hatched area at the lower-left edge labelled 'CUTTING LINE', indicating the portion to trim off for proper fitment to the new battery.
    05U0GX-021
  2. 12
    Install the battery cover as shown.

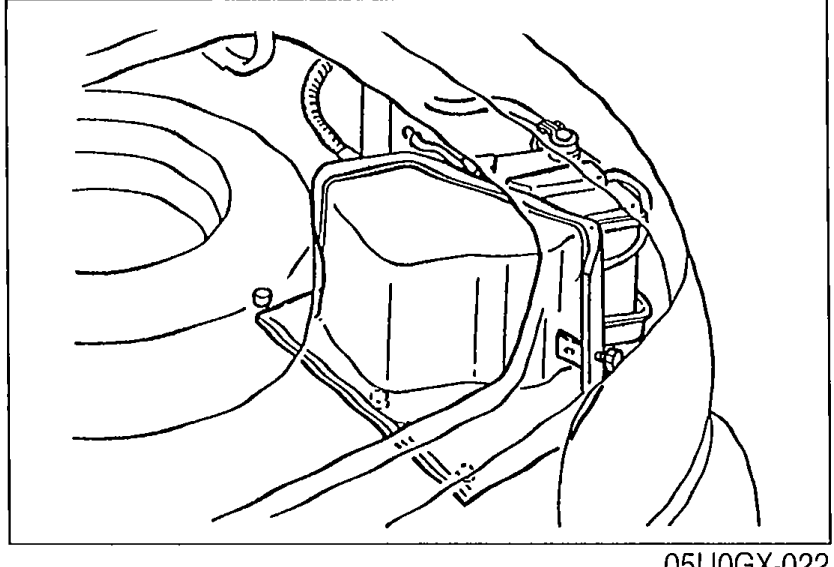

    Engine bay view showing the battery cover installed over the new battery in its tray.
    05U0GX-022
