STARTING SYSTEM - Inspection - Armature
G-27prose procedureInspection
Armature
Armature Inspection

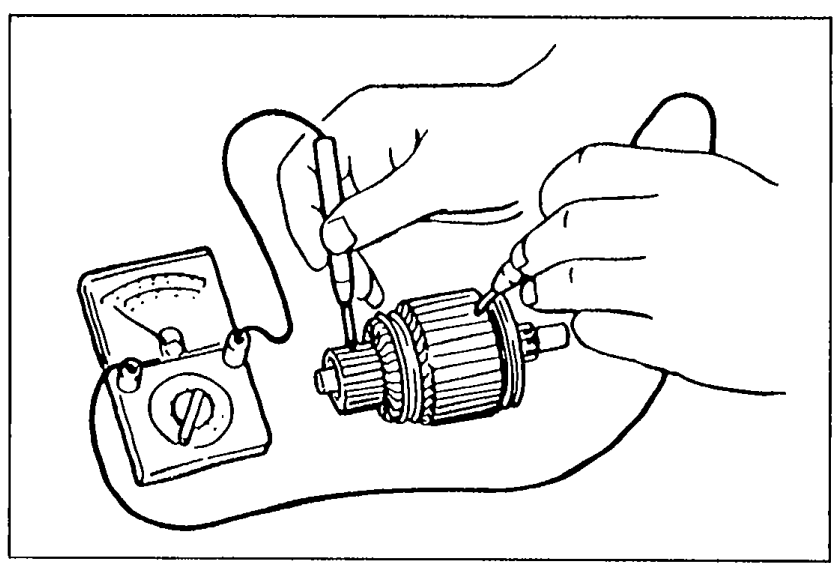

- 1Ground of armature coil: Check for no continuity between the commutator and the core with an ohmmeter. Check the entire circumference of the commutator. Replace the armature if there is continuity.

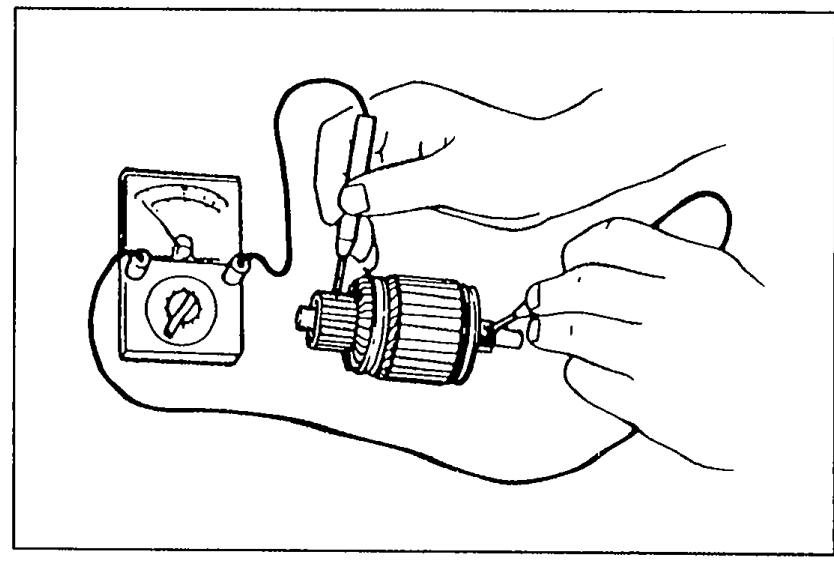

05U0GX-064 - 2Insulation of armature coil: Check for no continuity between the commutator and the shaft with an ohmmeter. Check the entire circumference of the commutator. Replace the armature if there is continuity.

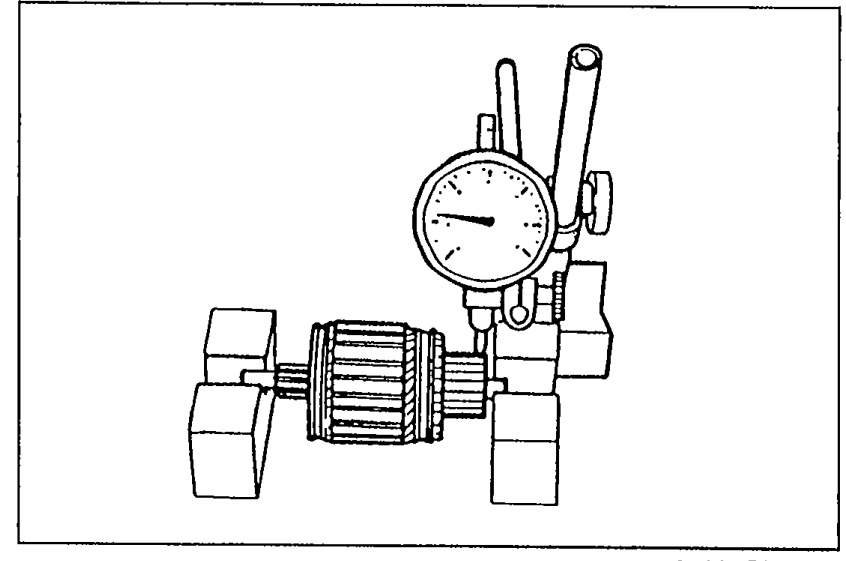

05U0GX-065 - 3Runout of commutator: (1) Place the armature on V blocks, and measure the runout with a dial gauge. (2) Repair with a lathe if the runout is small or replace the armature if necessary.

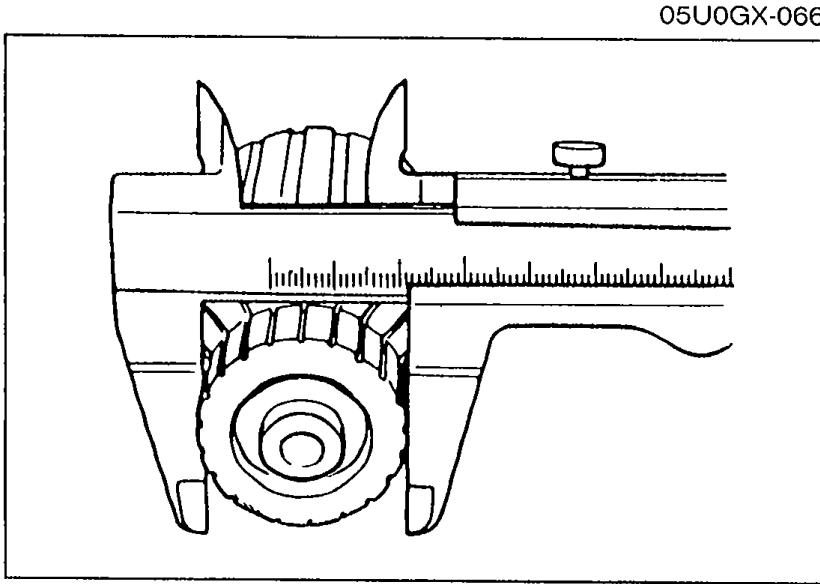

05U0GX-066 - 4Outer diameter of commutator: Replace the armature if the outer diameter of the commutator is at the grind limit or less.
05U0GX-067 - 5Roughness of commutator surface: If the commutator surface is dirty, wipe it with a cloth; if it is rough, repair it with a lathe or fine sandpaper.

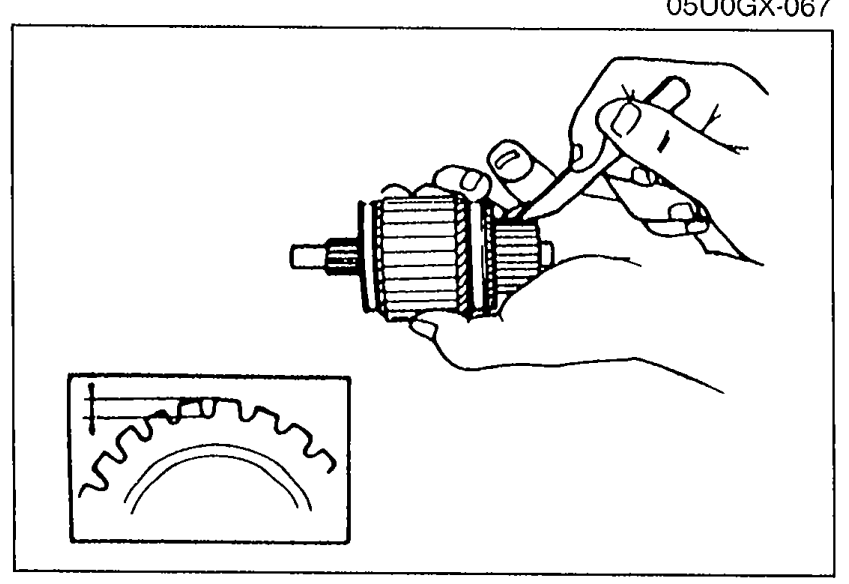

- 6Segment groove depth: If the depth of the molding between segments is at the depth limit or less, undercut the grooves to the standard depth.
05U0GX-068
| Specification | Value |
|---|---|
| Runoutcommutator | 0.03mm (0.001 in) |
| Grind limitcommutator outer diameter | 30.8mm (1.21 in) |
| Standard depthsegment groove | 0.5—0.8mm (0.020—0.031 in) |
| Depth limitsegment groove | 0.2mm (0.008 in) |
Runoutcommutator
0.03mm (0.001 in)
Grind limitcommutator outer diameter
30.8mm (1.21 in)
Standard depthsegment groove
0.5—0.8mm (0.020—0.031 in)
Depth limitsegment groove
0.2mm (0.008 in)
