CHARGING SYSTEM - BATTERY
G-8prose procedureBATTERY
CAUTION
Obtain the code number and deactivate the audio anti-theft system before disconnecting the battery. (Refer to page T-113.)
Inspection
WARNING
The negative battery cable must be removed first and installed last.
Battery Voltage Check
- 1Disconnect the battery cables from the battery.

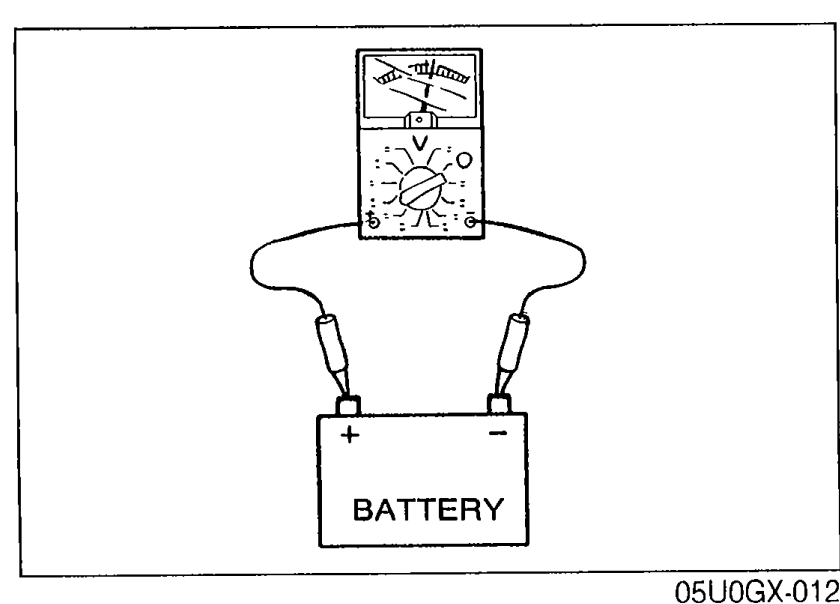

- 2Connect a voltmeter to the battery.
05U0GX-012
VOLTAGE CHECK
1
VOLTAGE CHECK
12.0—12.6V
12.0—12.6V branch
12.0—12.6V branch
Charge by referring to charging procedure, and recheck voltage after charging (Refer to page G-9)
Above 12.6V
Battery OK
Below 12.0V
2
Quick-charge (20A) for time specified in table below, and recheck voltage
Below 12.0V
Replace battery
Above 12.0V
3
Charge by referring to charging procedure, and recheck voltage after charging (Refer to page G-9)
Above 12.4V
same as step 1
Below 12.4V
4
Charge again by referring to charging procedure, and recheck voltage after charging (Refer to page G-9)
Above 12.4V
same as step 1
Below 12.4V
Replace battery
Quick-charge (20A) time by battery voltage
Below 11.0V
Charging time75 min.
11.0—11.5V
Charging time50 min.
11.5—12.0V
Charging time30 min.
