STARTING SYSTEM — STARTER
G-24prose procedureSTARTER
CAUTION
Obtain the code number and deactivate the autio anti-theft system before disconnecting the battery. (Refer to page T-113.)
Removal / Installation

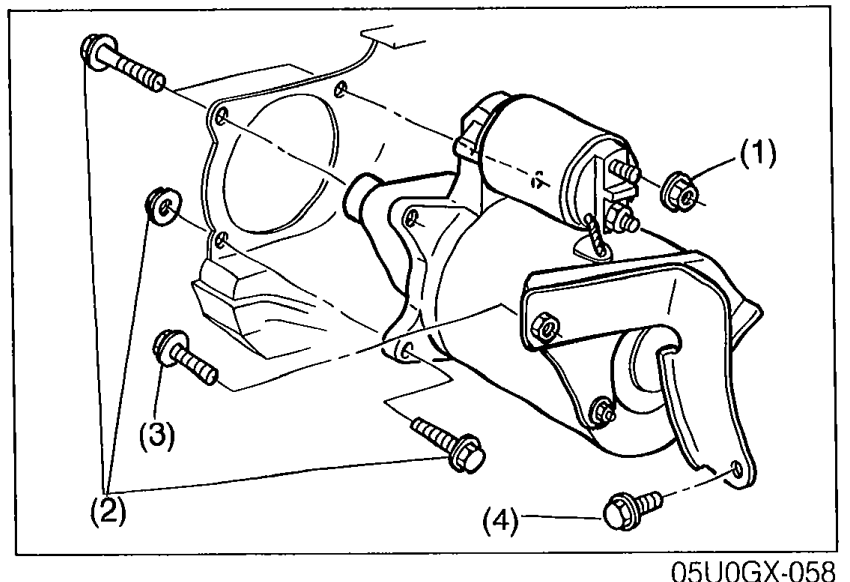

Starter removal / installation
- 1Disconnect the negative battery cable.
- 2Disconnect the wiring from the starter.
- 3Remove the starter bracket.
- 4Raise the front of the vehicle and support it with safety stands.
- 5Remove the bolts and the starter.
05U0GX-058 - 6Install in the reverse order of removal.
| Specification | Value |
|---|---|
| Tightening torque — Nut (1) | 10 - 12N·m |
| Tightening torque — Bolt, Nut (2) | 37 - 52N·m |
| Tightening torque — Bolt (3) | 16 - 23N·m |
| Tightening torque — Bolt (4) | 37 - 52N·m |
Tightening torque — Nut (1)
10 - 12N·m
Tightening torque — Bolt, Nut (2)
37 - 52N·m
Tightening torque — Bolt (3)
16 - 23N·m
Tightening torque — Bolt (4)
37 - 52N·m
