CHARGING SYSTEM

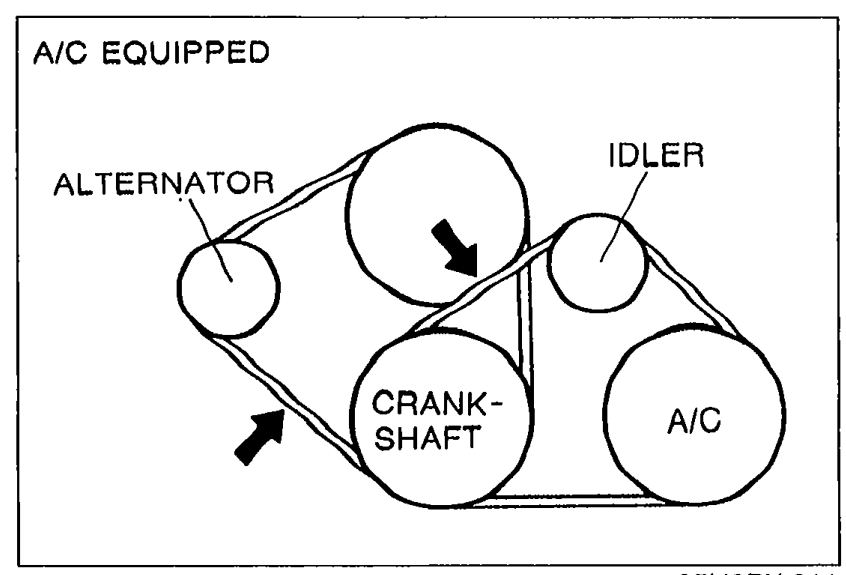

G-16prose procedureA/C-equipped routing diagram shown; P/S and A/C variants share spec rows.
Drive belt inspection (continued)
- 5Check the drive belt tension with a tension gauge.Belt tension can be measured between any pulleys.
05U0BX-011 - 6Install the air intake pipe.
Tension
Drive belt tension N (kg, lb)
Alternator
New491—589 (50—60, 110—132)
Used422—491 (43—50, 95—110)
P/S, P/S + A/C
New491—589 (50—60, 110—132)
Used422—491 (43—50, 95—110)
A/C
New491—589 (50—60, 110—132)
Used422—491 (43—50, 95—110)
Adjustment
CAUTION
If a new belt is used, adjust the belt deflection at the midpoint of new belt specification.
(1) Alternator belt

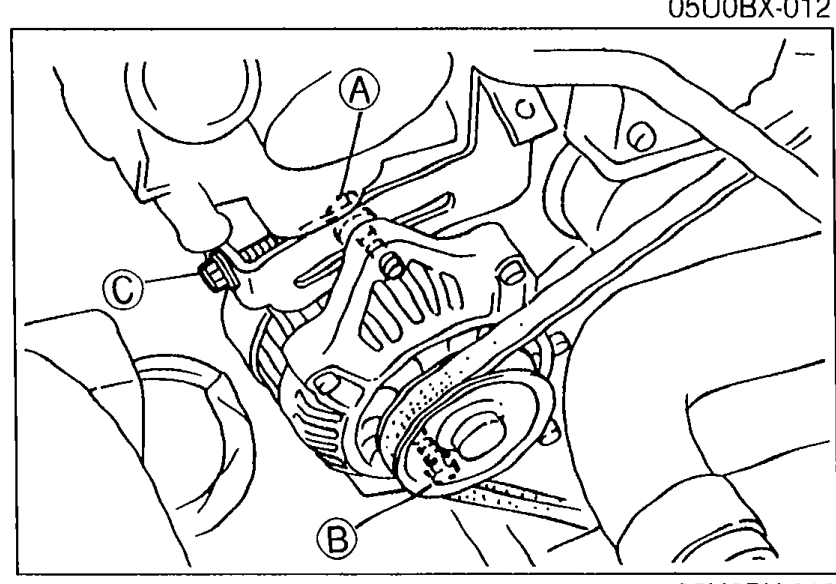

- 1If necessary, loosen the alternator bolts (A) and (B) and adjust the belt deflection by turning the adjusting bolt (C).
05U0BX-013
| Specification | Value |
|---|---|
| Tightening torque (A) — alternator bolt | 19-25N·m |
| Tightening torque (B) — alternator bolt | 37-52N·m |
Tightening torque (A) — alternator bolt
19-25N·m
Tightening torque (B) — alternator bolt
37-52N·m
(2) P/S belt, P/S + A/C belt

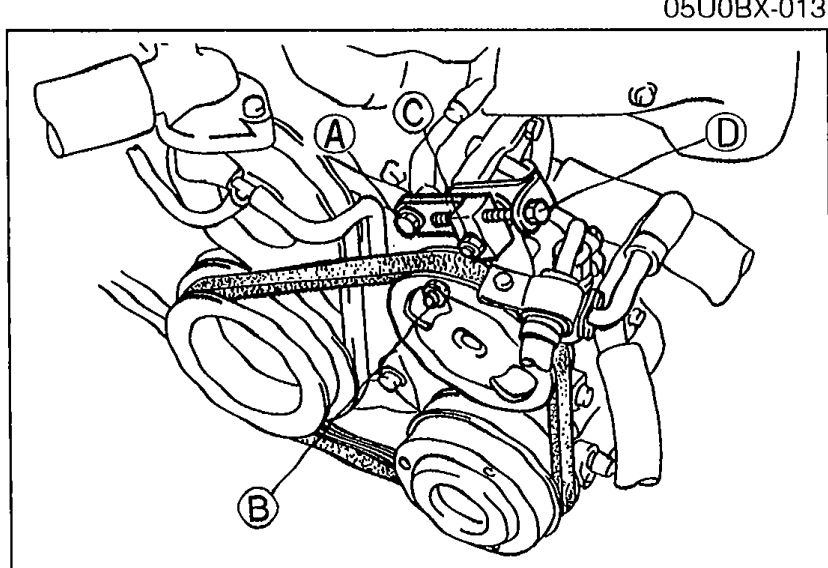

- 1If necessary, loosen the P/S oil pump bolts (A) and (B) and nut (C), and adjust the belt deflection by turning the adjusting bolt (D).
05U0BX-014
| Specification | Value |
|---|---|
| Tightening torque (A) — P/S oil pump bolt | 31-46N·m |
| Tightening torque (B) — P/S oil pump bolt | 36-54N·m |
| Tightening torque (C) — P/S oil pump nut | 19-25N·m |
Tightening torque (A) — P/S oil pump bolt
31-46N·m
Tightening torque (B) — P/S oil pump bolt
36-54N·m
Tightening torque (C) — P/S oil pump nut
19-25N·m
(3) A/C belt

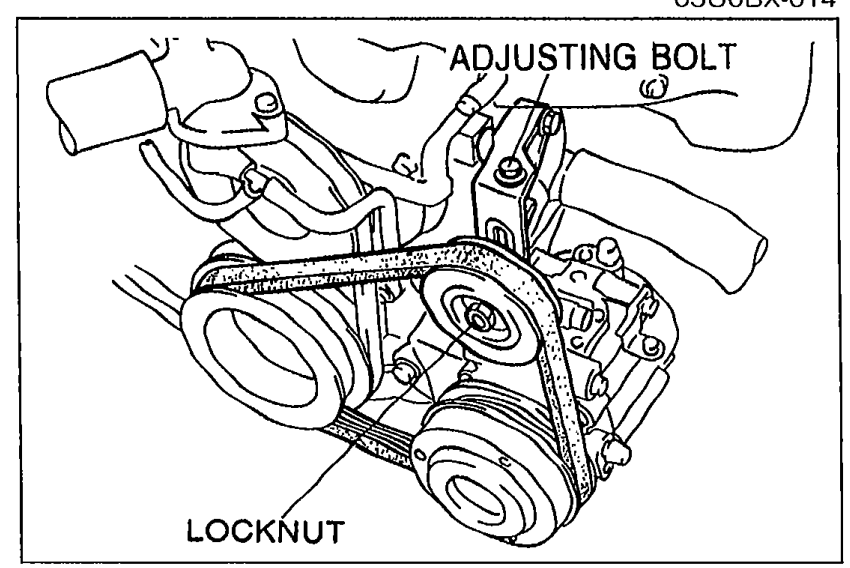

- 1If necessary, loosen the locknut and adjust the belt deflection by turning the adjusting bolt.
05U0BX-015
| Specification | Value |
|---|---|
| Tightening torque — A/C belt adjusting bolt/locknut | 37-52N·m |
Tightening torque — A/C belt adjusting bolt/locknut
37-52N·m
