STARTING SYSTEM - Brush / Starter Interlock Switch
G-29prose procedureBrush
If the brushes are worn beyond the wear limit or if the wear is near the limit, replace the brushes.
| Specification | Value |
|---|---|
| Standardbrush length | 17mm (0.67 in) |
| Wear limitbrush length | 11.5mm (0.45 in) |
Standardbrush length
17mm (0.67 in)
Wear limitbrush length
11.5mm (0.45 in)
STARTER INTERLOCK SWITCH
The clutch pedal must be depressed during starting for battery power to be supplied to the starter.
Inspection
Interlock switch inspection

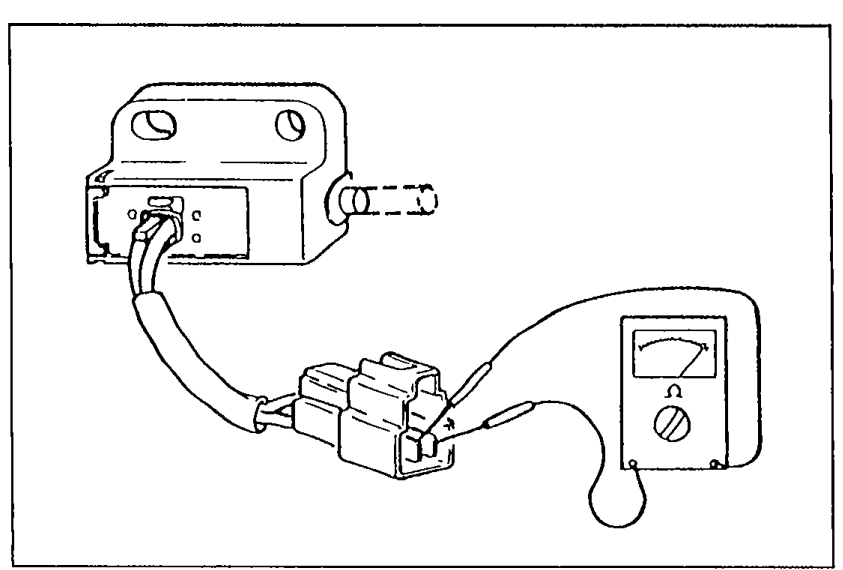

- 1Disconnect the interlock switch connector.
05U0GX-075 - 2Check continuity of the switch with an ohmmeter.
- 4If not as specified, replace the interlock switch.
Interlock switch continuity
Depressed
ContinuityYes
Released
ContinuityNo
