REAR AXLE

M-14prose procedure
Continued from M-13

Hub bolt

Press out the hub bolts.

Assembly note

Hub bolt

Press in new hub bolts.

Dust cover

Dust cover installation

  1. 1
    Mark the new dust cover as the removed one.

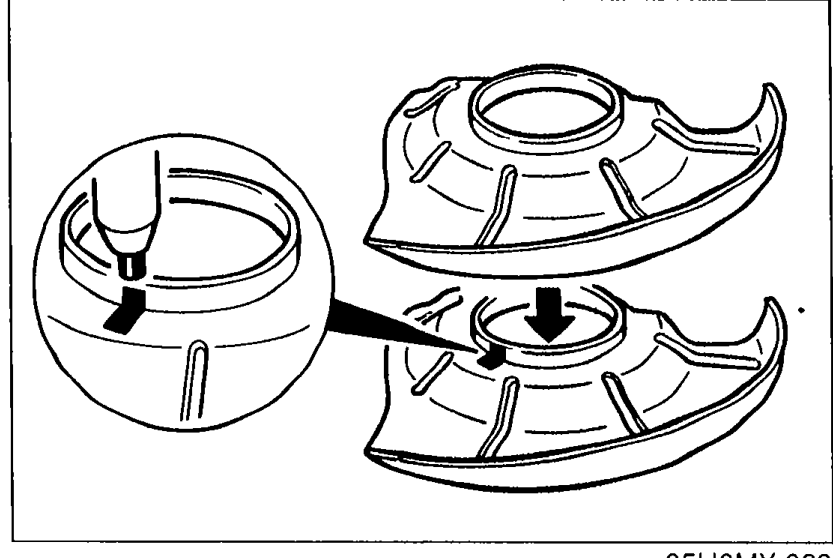

    Illustration of the new dust cover showing the punch mark being transferred from the removed dust cover to the new one. An arrow indicates the mark position.
    05U0MX-029
  2. 2
    Align the marks of the new dust cover and the knuckle.

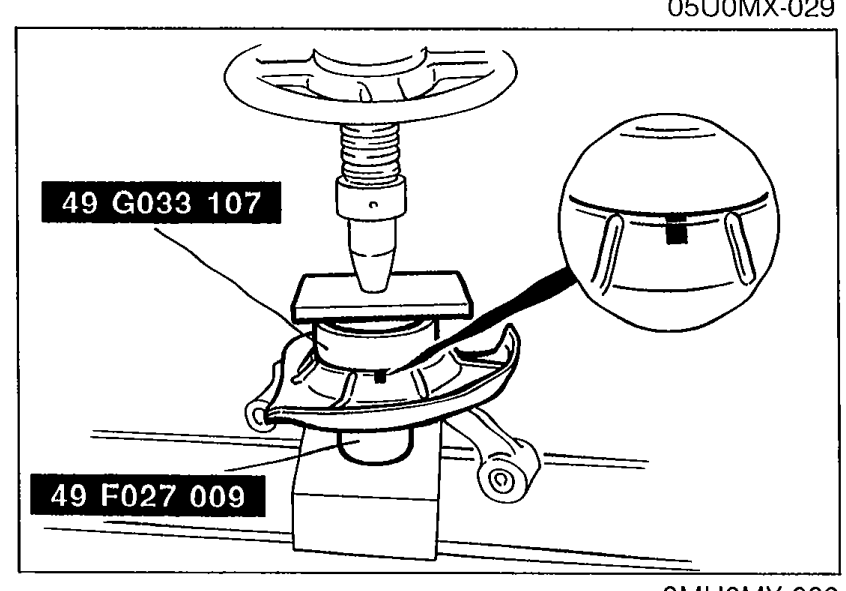

    Photograph showing the new dust cover being installed onto the knuckle using SSTs '49 G033 107' and '49 F027 009'. An arrow shows mark alignment.
    9MU0MX-622
  3. 3
    Install the new dust cover with the SST.

Wheel bearing

Press the new wheel bearing into the knuckle with the SST.
