DRIVESHAFT
M-20prose procedureBoots

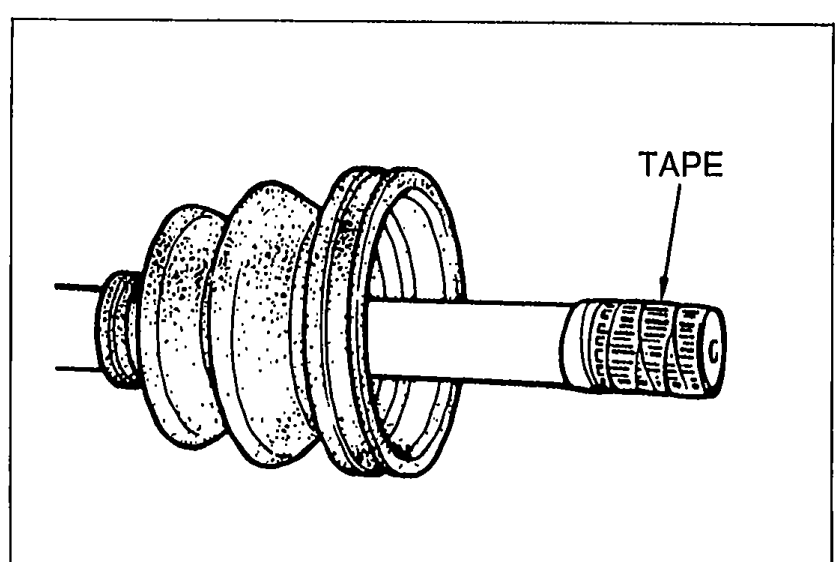

- 1Wrap the shaft splines with tape.
05U0MX-045 - 2Remove the boot.
Assembly note
Boots
Before putting the boot onto the shaft, wrap the shaft splines with tape.
NOTE
The shape of the ball-joint boots at the wheel side and the differential side differ; be careful not to install them incorrectly.
| Specification | Value |
|---|---|
| Outer diameter of large boot end — Differential side | 87.4mm (3.441 in) |
| Outer diameter of large boot end — Wheel side | 90.8mm (3.575 in) |
Outer diameter of large boot end — Differential side
87.4mm (3.441 in)
Outer diameter of large boot end — Wheel side
90.8mm (3.575 in)
Cage, inner ring, and balls

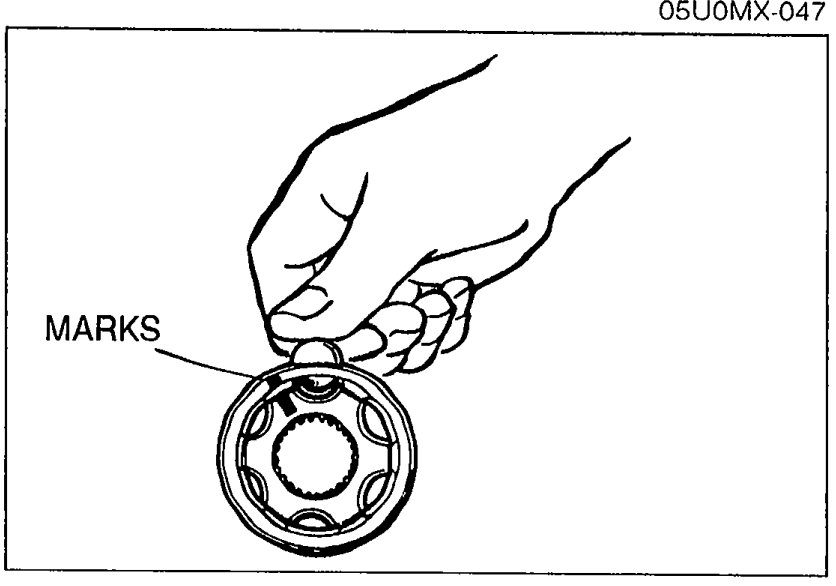

- 1Align the marks and install the balls to the inner ring.

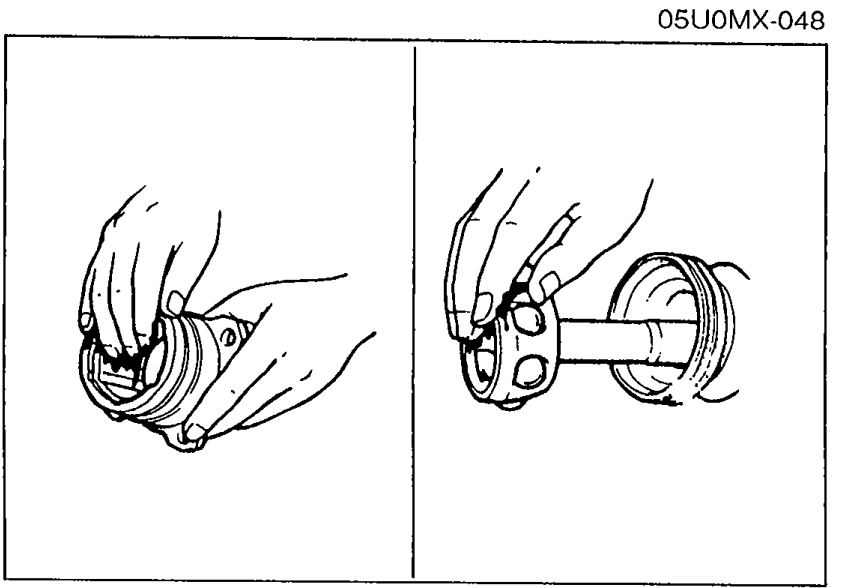

05U0MX-048 - 2Apply the specified grease (molybdenum disulfide) to the joints and boots.Do not use any other than the specified grease.
05U0MX-049
| Specification | Value |
|---|---|
| Total quantity — Differential side | 75—95g (2.65—3.35 oz) |
| Total quantity — Wheel side | 55—75g (1.94—2.65 oz) |
Total quantity — Differential side
75—95g (2.65—3.35 oz)
Total quantity — Wheel side
55—75g (1.94—2.65 oz)
