REAR AXLE

M-15prose procedure
Continued from M-14

Rear wheel hub assembly

Rear wheel hub assembly installation

  1. 1
    Apply grease to the wheel bearing inner race.
  2. 2
    Press the rear wheel hub assembly in with the SST.

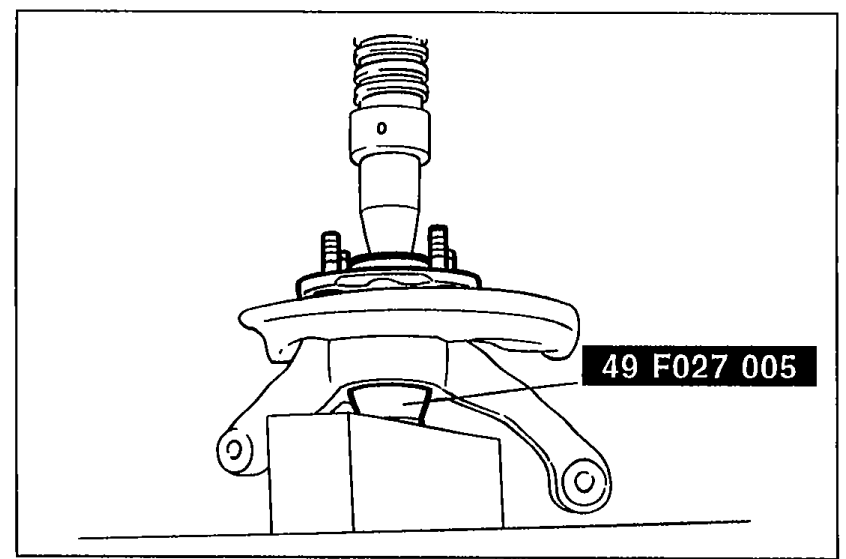

    Photograph showing the rear wheel hub assembly being pressed in to the knuckle using SST '49 F027 005'.
    05U0MX-031

Oil seal

Oil seal installation

  1. 1
    Apply grease to the new oil seal lip.
  2. 2
    Install the new oil seal with the SST.

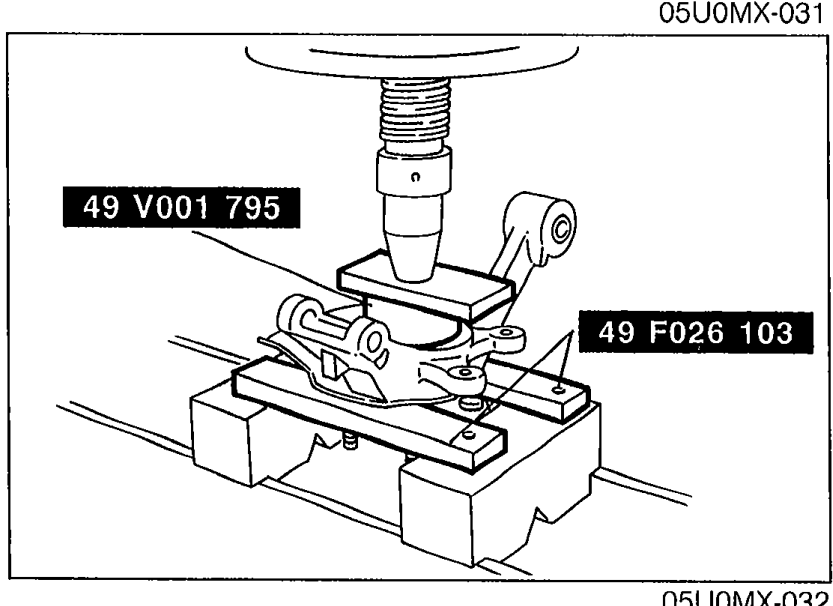

    Photograph showing the new oil seal being installed with SSTs '49 V001 795' and '49 F026 103' on a press fixture.
    05U0MX-032
