DIFFERENTIAL

M-36prose procedure
Continued from M-35

Differential mounting rubber

Differential mounting rubber removal

  1. 1
    Drill holes around the differential mounting rubber.
    Use a new mounting rubber when reassembling.

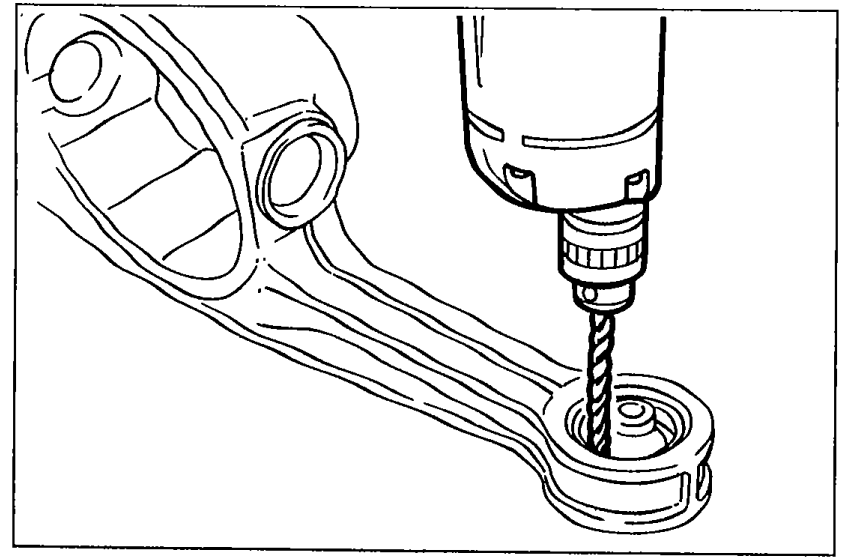

    Illustration showing a drill being used to drill holes around the differential mounting rubber.
    97U0MX-068
  2. 2
    Hit the edge of the differential mounting rubber to remove it.

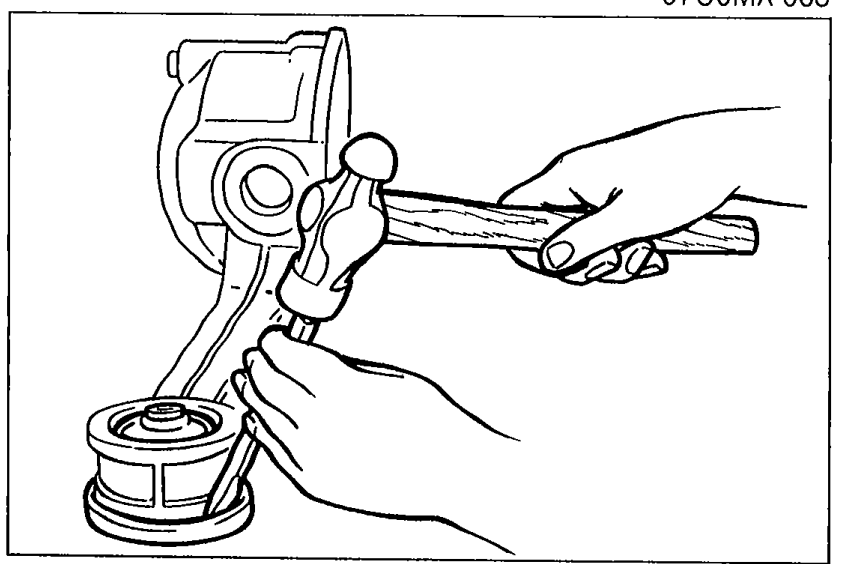

    Illustration showing the edge of the differential mounting rubber being hit with a tool to remove it.
    97U0MX-069

Assembly note

Differential mounting rubber

Press in the new differential mounting rubber with the SST.
Press forcedifferential mounting rubber
2,000 (2)kg (tons)

Oil seal (Output shaft)

Apply lithium based grease to the new oil seal lip and install it with the SST.

Adjustment of pinion height

  1. 1
    Install the bearing outer race (front bearing) with the SST.

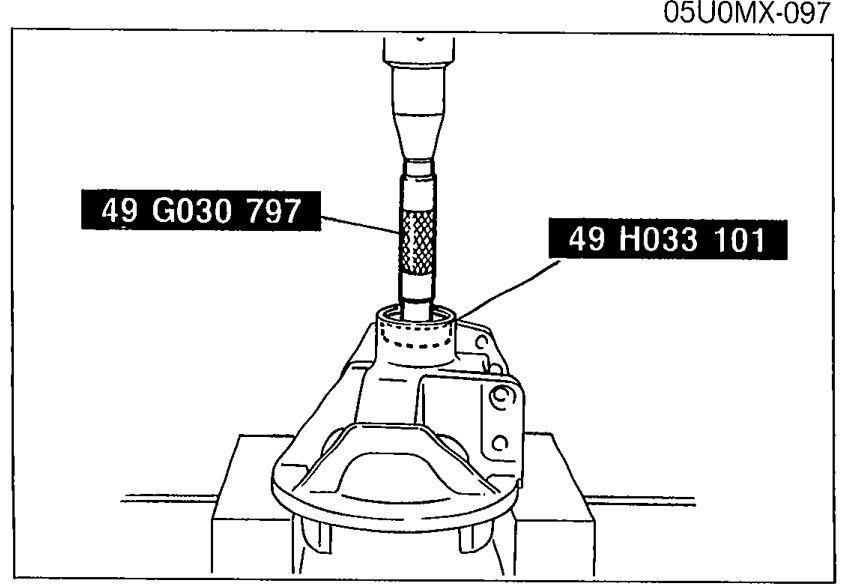

    Illustration showing SST 49 G030 797 and SST 49 H033 101 being used to install the bearing outer race (front bearing) into the differential carrier.
    05U0MX-098
