FRONT AXLE
M-6prose procedureInspection
Wheel bearing play
- 1Remove the wheel, brake caliper assembly, and disc plate, referring to Removal note below.

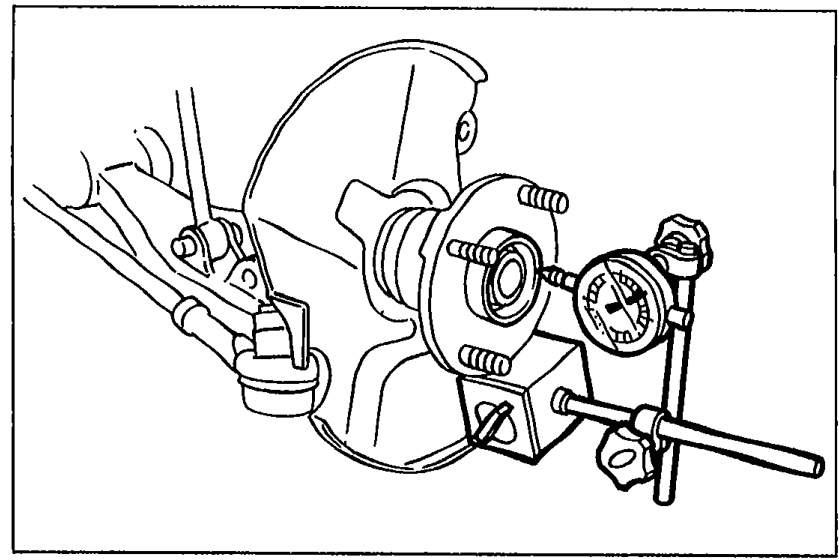

- 2Position a dial indicator against the wheel hub. Push and pull the wheel hub by hand in the axial direction and measure the wheel bearing play. If the bearing play exceeds specification, check and adjust the locknut torque or replace the wheel hub assembly if necessary.
05U0MX-010
| Specification | Value |
|---|---|
| Maximum wheel bearing play | 0.05 mm (0.002 in) |
Maximum wheel bearing play
0.05 mm (0.002 in)
Removal note
Brake caliper assembly
NOTE
For easier installation, do not depress the brake pedal after removing the brake caliper assembly.
Suspend the brake caliper assembly with a rope.
Tie-rod end
Loosen the nut and disconnect the tie-rod end with the SST.
Lower arm
Loosen the nut and disconnect the lower arm with the SST.
Upper arm
Loosen the nut and disconnect the upper arm with the SST.
