WHEEL ALIGNMENT
R-10prose procedureRear Camber Adjustment Directions
Positive
Left wheel Front camCounter-clockwise
Left wheel Rear camClockwise
Right wheel Front camClockwise
Right wheel Rear camCounter-clockwise
Negative
Left wheel Front camClockwise
Left wheel Rear camCounter-clockwise
Right wheel Front camCounter-clockwise
Right wheel Rear camClockwise
NOTE
Turning the front cam one graduation changes the camber about 15' and the toe-in about 2.8mm (0.11 in). Turning the rear cam one graduation changes the camber about 6' and the toe-in about 2.8mm (0.11 in).
If the cam cannot be turned far enough to make the adjustment, begin again at adjustment of the toe-in using the other cam.
Rear camber adjustment (continued)

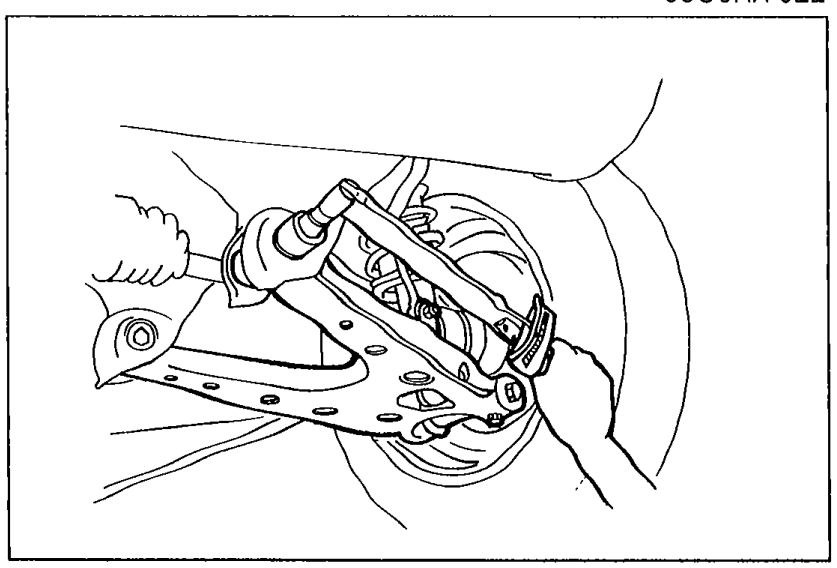

- 3Tighten the nuts.
| Specification | Value |
|---|---|
| Tightening torque (cam nuts) | 73 - 95N·m |
Tightening torque (cam nuts)
73 - 95N·m
