WHEEL ALIGNMENT
R-8prose procedureNOTE
If the cam cannot be turned far enough to make the adjustment, begin again at adjustment of the caster using the other cam.
Camber adjustment (continued)

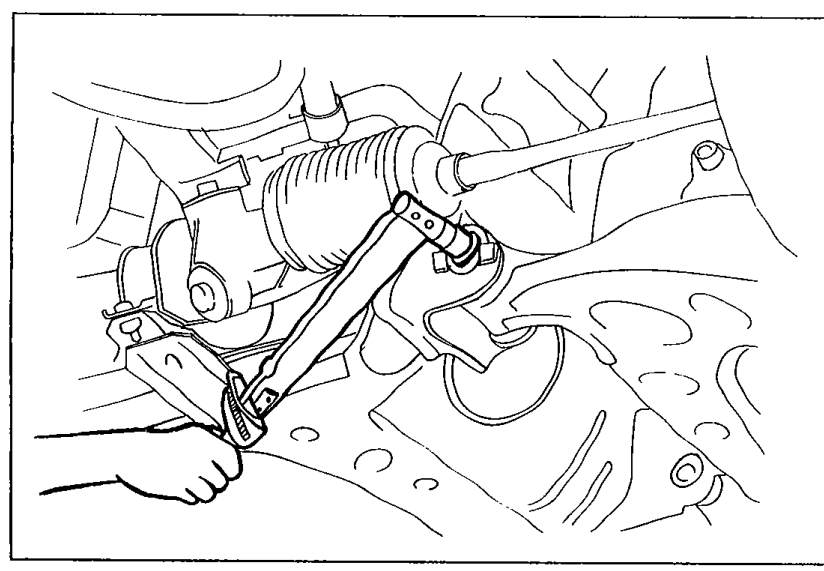

- 3Tighten the nuts.
05U0RX-016 - 4Adjust the toe-in.
| Specification | Value |
|---|---|
| Tightening torque (cam nuts) | 73 - 95N·m |
Tightening torque (cam nuts)
73 - 95N·m
Toe-in
Toe-in adjustment

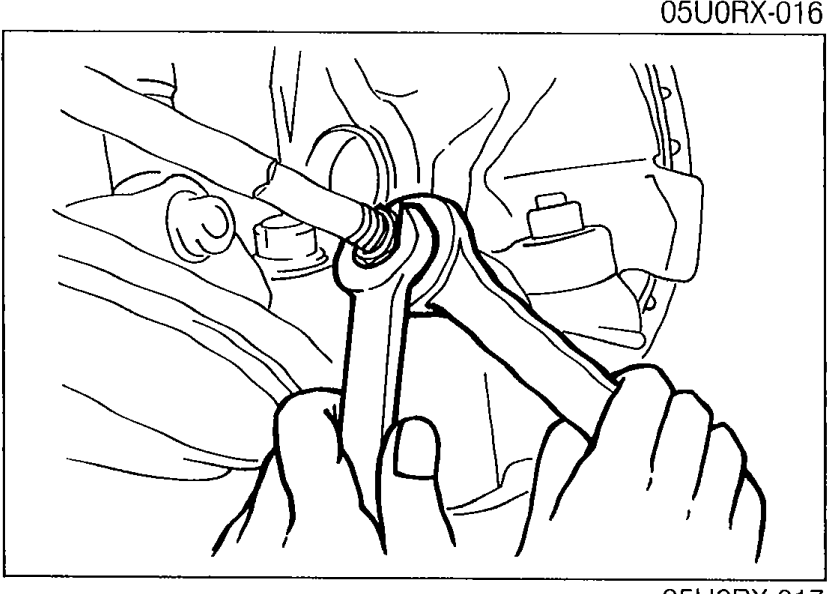

- 1Remove the steering gear boot clamp.
- 2Loosen the left and right tie-rod locknuts, and turn the tie-rods by the same amount.
05U0RX-017 - 3Tighten the tie-rod locknuts to the specified torque.
- 4Verify that the boot is not twisted, and install the boot clamp.
CAUTION
The left and right tie-rods are both right threaded. To increase the toe-in, turn the right tie-rod toward the front of the vehicle, and turn the left tie-rod by the same amount toward the rear.
One turn of the tie-rod (one side) changes the toe-in by about 7mm (0.28 in).
Adjust the toe-in after adjusting the steering angle.
| Specification | Value |
|---|---|
| Tightening torque (tie-rod locknut) | 34 - 39N·m |
Tightening torque (tie-rod locknut)
34 - 39N·m
