FRONT SUSPENSION (DOUBLE-WISHBONE) - Shock Absorber and Spring

R-13prose procedure

Continued from R-12

Removal note

Shock absorber and spring

Shock absorber and spring - Removal note

1

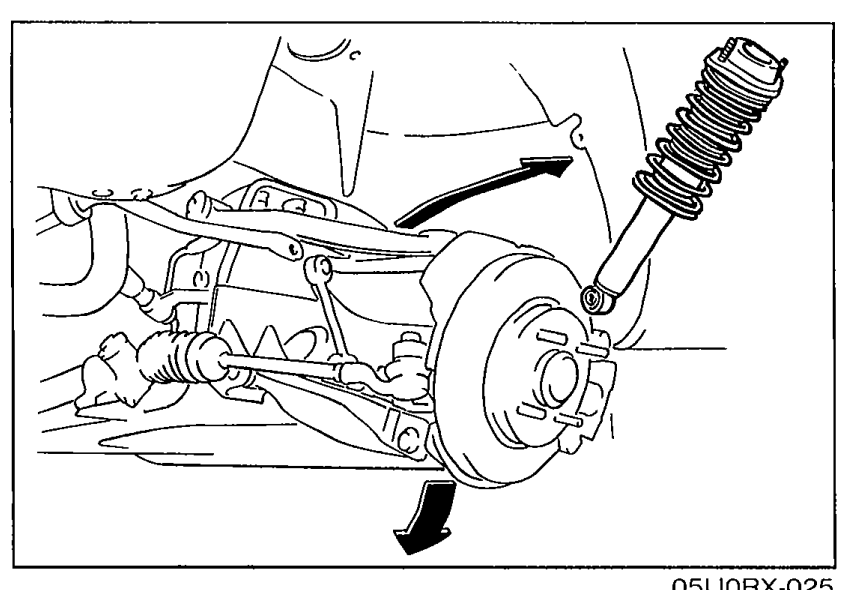

Loosen the lower arm bolts.
05U0RX-025
2
Lower the lower arm to remove the shock absorber.
Do not lower the arm excessively, which may damage the brake hose.

Disassembly / Inspection / Assembly

Shock Absorber and Spring - Disassembly / Inspection / Assembly

1
Disassemble in the order shown in the figure, referring to Disassembly Note.
05U0RX-026
2
Inspect all parts and repair or replace as necessary.
3
Assemble in the reverse order of disassembly, referring to Assembly Note.
4
Tighten all nuts and bolts to the specified torques, referring to the figure.

Specification	Value
Mounting plate nut3.2-4.7 m-kg, 23-34 ft-lb	≈31 - 46N·m

Mounting plate nut3.2-4.7 m-kg, 23-34 ft-lb

31 - 46N·m

Parts DiagramFig. fig2

#	Part Name	Notes
1	Cap	—
2	Mounting plate	—
3	Bound stopper	Inspect for damage
4	Coil spring	SST; Disassembly Note .......... page R-14; Assembly Note .......... page R-14
5	Shock absorber	Inspect for oil leakage and abnormal noise
