FRONT SUSPENSION (DOUBLE-WISHBONE) - Lower Arm Ball Joint Notes & Inspection

R-16prose procedure
Continued from R-15

Removal note

Lower arm ball joint

Lower arm ball joint - Removal note

  1. 1

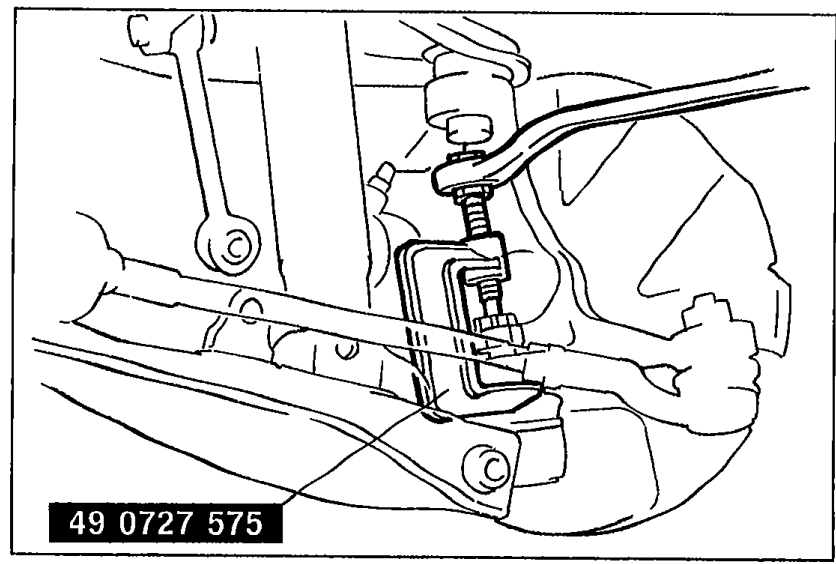

    Separate the ball joint from the knuckle with the SST.
    SST 49 0727 575 (Puller, socket joint) installed to separate the lower arm ball joint from the knuckle.
    05U0RX-033

Ball joint dust boot

Ball joint dust boot - Removal note

  1. 1

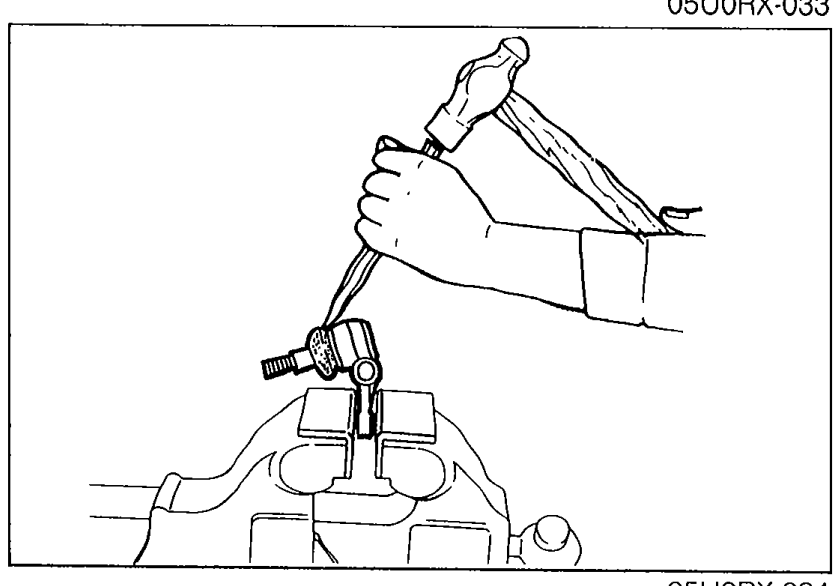

    Remove the dust boot with a chisel.
    Do not damage the ball joint stud.
    Chisel being used to remove the ball joint dust boot. Hand holding chisel against the boot/ball joint.
    05U0RX-034

Installation note

Ball joint dust boot

Ball joint dust boot - Installation note

  1. 1
    Liberally coat the inside of the new dust boot with grease.
  2. 2

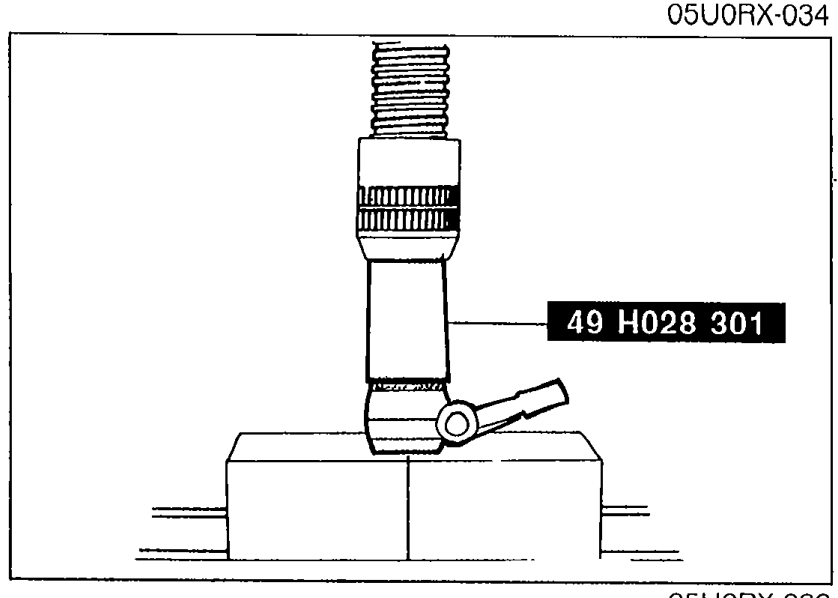

    Press the dust boot onto the ball joint with the SST.
    SST 49 H028 301 (Installer, dust boot) pressing a new dust boot onto the ball joint stud.
    05U0RX-036

Inspection

Lower arm ball joint

Ball joint rotation torque

  1. 1
    Shake the ball joint stud 5 times.
  2. 2

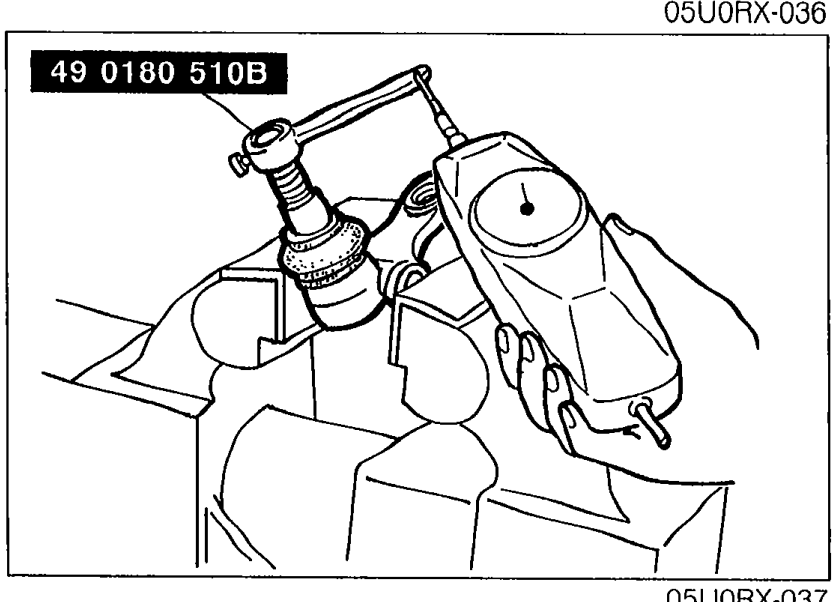

    Connect the SST to the ball stud, and measure the rotation torque with a pull scale.
    SST 49 0180 510B (Attachment) connected to the lower arm ball joint stud for rotation-torque measurement.
    05U0RX-037
Rotation5-15 cm-kg, 4.3-13 in-lb
0.5-1.5N·m
Pull scale reading0.5-1.5 kg, 1.7-3.3 lb
4.9-14.7N
