WHEEL ALIGNMENT
R-7prose procedureCater
Cater is adjusted by turning the front and/or rear adjusting cam bolt at the lower arm.
CAUTION
Adjust the caster before adjusting the camber.
Caster adjustment

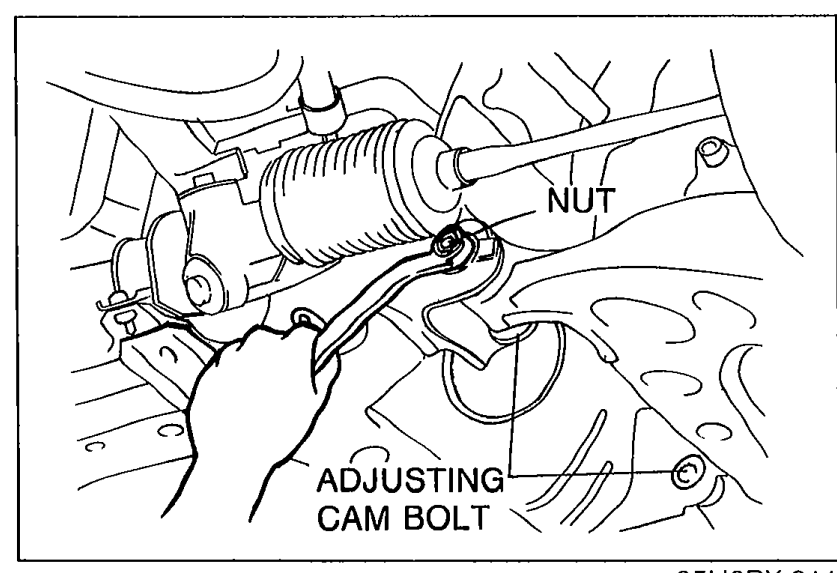

- 1Loosen the front and/or rear cam nut.

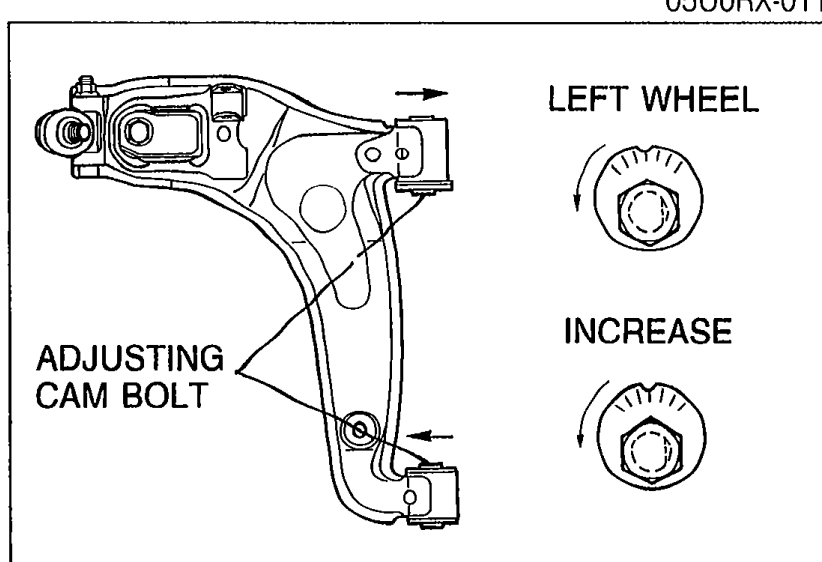

05U0RX-011 - 2Turn the front and/or rear adjusting cam bolt to provide the correct caster angle.
05U0RX-012 - 3Adjust the camber and the toe-in.
Caster Adjustment Directions
Increase
Left wheel Front camCounter-clockwise
Left wheel Rear camCounter-clockwise
Right wheel Front camClockwise
Right wheel Rear camClockwise
Decrease
Left wheel Front camClockwise
Left wheel Rear camClockwise
Right wheel Front camCounter-clockwise
Right wheel Rear camCounter-clockwise
NOTE
Turning the front cam one graduation on the scale changes the caster angle about 22' and the camber about 25'. Turning the rear cam one graduation changes the caster angle about 22' and the camber about 2'.
Camber
Camber is adjusted by turning the front and rear adjusting cam bolts at the lower arm.
CAUTION
Adjust the camber after adjusting the caster.
Camber adjustment
- 1Loosen the front and rear cam nuts.

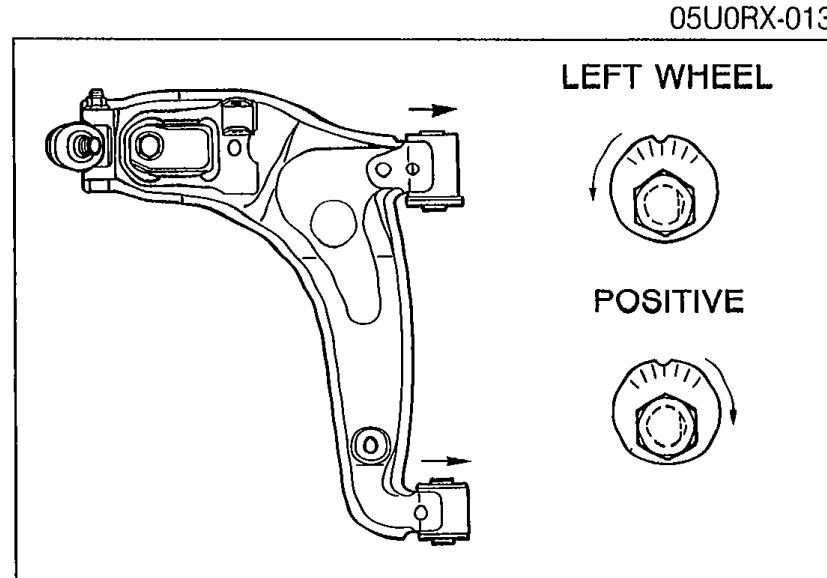

- 2Turn the front and rear adjusting cam bolts the same amount in the opposite direction to provide the correct camber angle.
05U0RX-014
Camber Adjustment Directions
Positive
Left wheel Front camCounter-clockwise
Left wheel Rear camClockwise
Right wheel Front camClockwise
Right wheel Rear camCounter-clockwise
Negative
Left wheel Front camClockwise
Left wheel Rear camCounter-clockwise
Right wheel Front camCounter-clockwise
Right wheel Rear camClockwise
NOTE
Turning the front cam one graduation changes the camber about 25' and the caster about 22'. Turning the rear cam one graduation changes the camber about 2' and the caster about 22'.
