TRANSMISSION - Disassembly note (Extension housing, Transmission case) / On-vehicle replacement Oil seal (rear)
J-14prose procedureDisassembly note
Extension housing
Extension housing disassembly

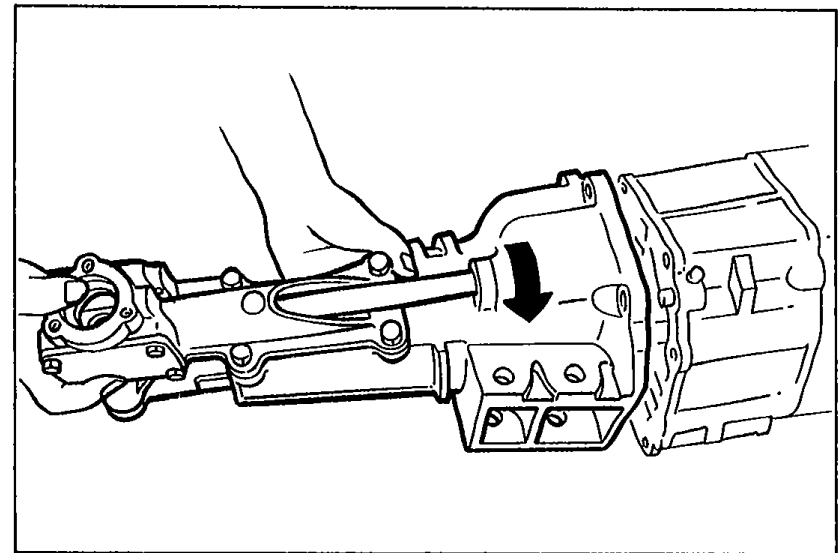

- 1Turn the extension housing to remove it.
05U0JX-012
Transmission case
Transmission case disassembly

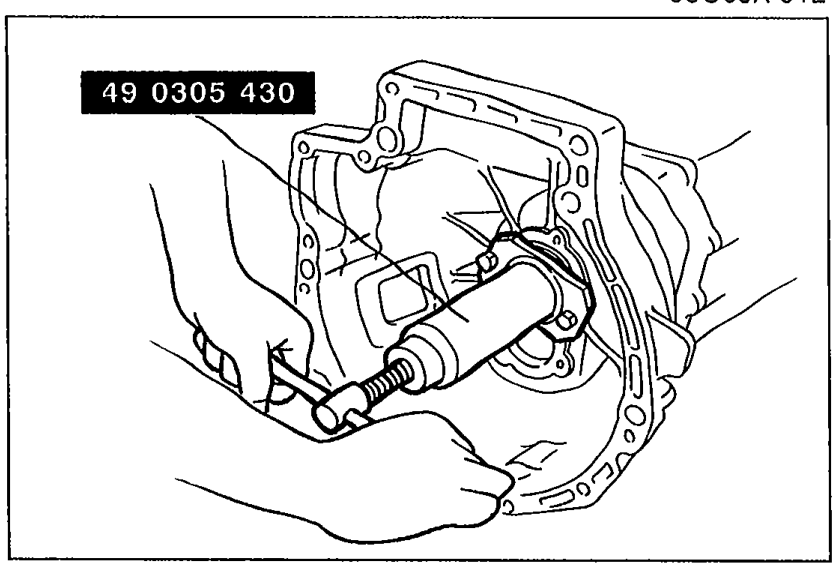

- 1Remove the transmission case from the intermediate housing and gear assembly with the SST.
9BU0J1-013
On-vehicle replacement
Oil seal (rear)
CAUTION
Do not damage the mainshaft splines.
Oil seal (rear) on-vehicle replacement
- 1Raise the vehicle and support it with safety stands.

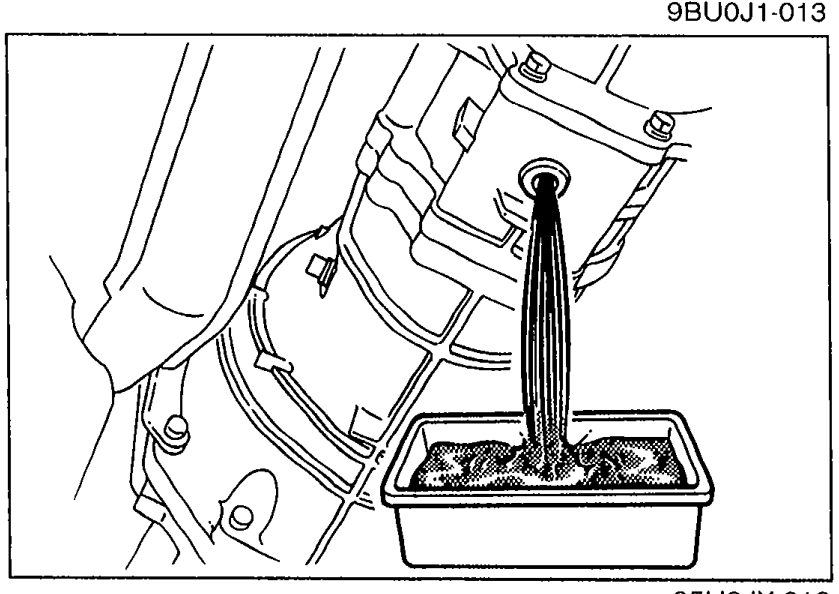

- 2Drain the transmission oil into a suitable container.
05U0JX-013 - 3Remove the exhaust pipe.
- 4Remove the propeller shaft. (Refer to Section L.)
- 5Remove the oil seal from the extension housing.
- 6Apply transmission oil to outer periphery.

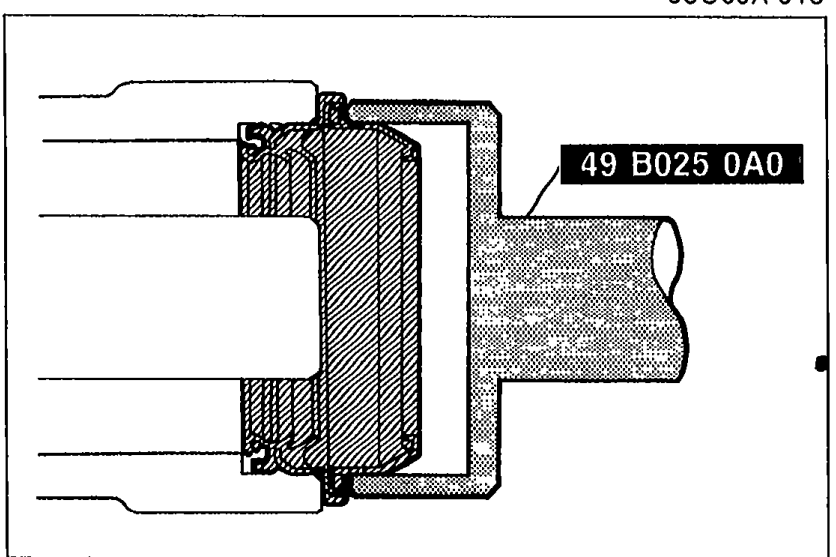

- 7Install a new oil seal with the SST.
05U0JX-014 - 8Install the propeller shaft. (Refer to Section L.)
- 9Install the exhaust pipe.

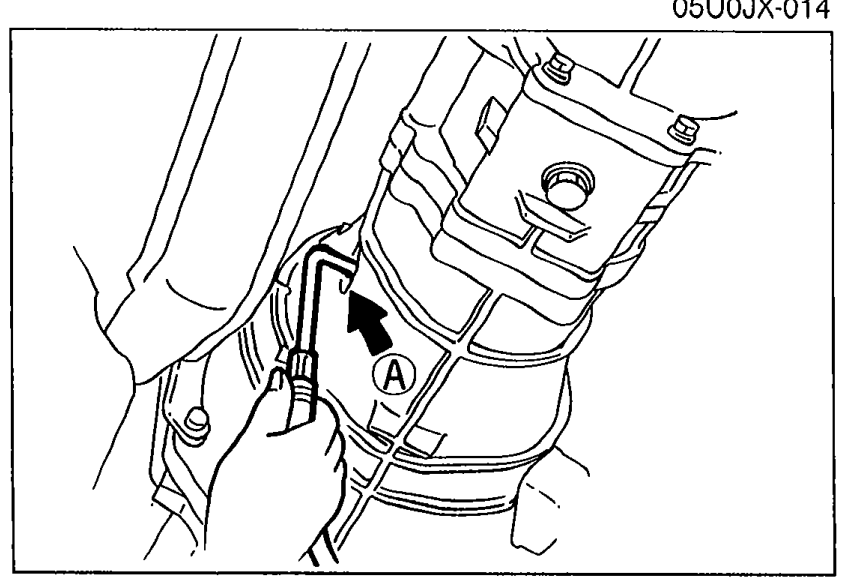

- 10Add the specified oil from check plug (A) port until the level reaches the bottom of the check plug hole. (Refer to page J-8.)
