Disassembly note / Bearing Housing Parts

J-20prose procedure

Continued from J-19

Disassembly note

Clutch hub assembly (3rd/4th)

Clutch hub assembly (3rd/4th) disassembly

1

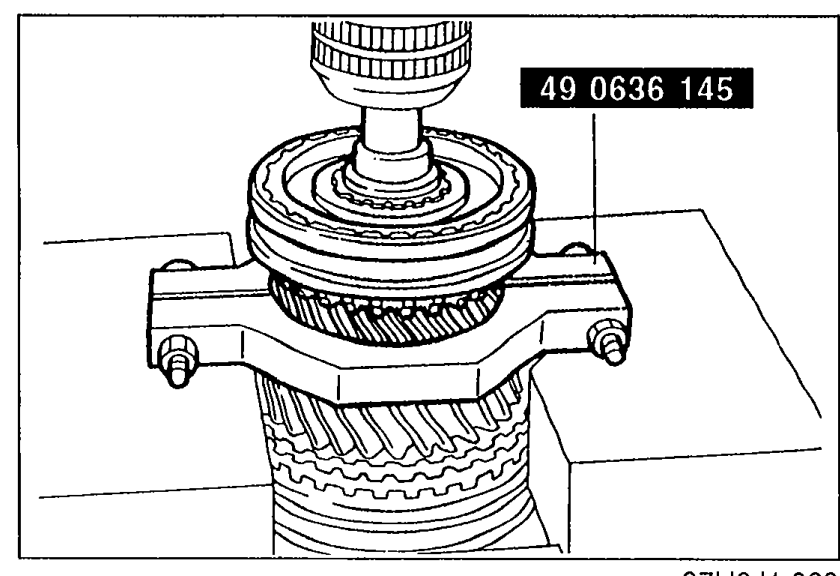

Position the SST between 2nd and 3rd gears.
Hold the mainshaft with one hand so that it does not fall.
97U0JI-028
2
Press the mainshaft out of the clutch hub assembly (3rd/4th) and 3rd gear.

Clutch hub assembly (1st/2nd)

Clutch hub assembly (1st/2nd) disassembly

1

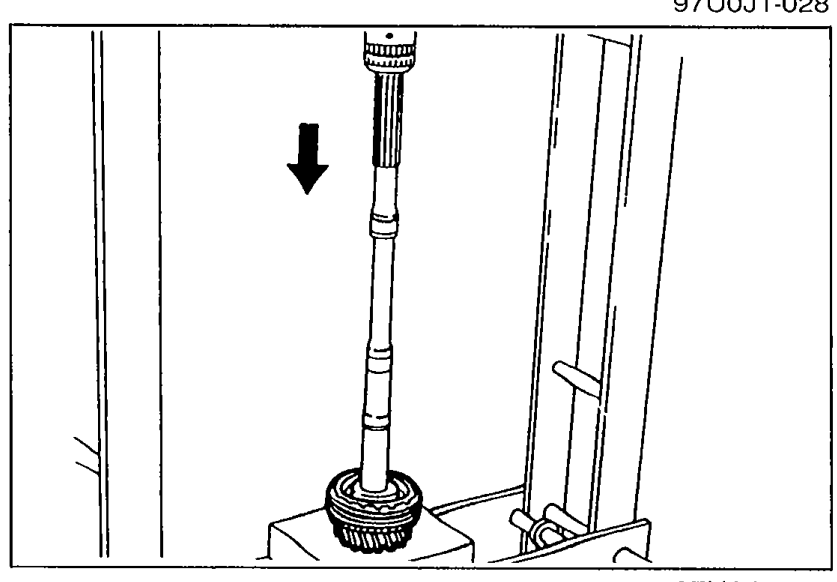

Press the mainshaft out of the clutch hub assembly (1st/2nd) and 2nd gear.
Hold the mainshaft with one hand so that it does not fall.
97U0JI-029

Bearing Housing Parts

Disassemble in the order shown in the figure, referring to Disassembly Note.

Parts DiagramFig. fig3

Parts diagram

#	Part Name	Notes
1	Snap ring	REPLACE
2	Adjustment washer	SELECTIVE
3	Reverse idler gear	Inspection ... page J-24
4	Thrust washer	—
5	Reverse idler gear shaft	Disassembly Note ... page J-21; Inspection ... page J-24
6	Bearing cover	—
7	Mainshaft front bearing	Disassembly Note ... page J-21; Inspection ... page J-24
8	Adjustment shim	SELECTIVE
9	Countershaft center bearing	Disassembly Note ... page J-21; Inspection ... page J-24
10	Adjustment shim	SELECTIVE
11	Bearing housing	—
