TRANSMISSION
J-44prose procedureAdjustment shim
After measuring dimensions (A) and (B) shown in the figure, use an adjustment shim(s), as specified below, of the thickness corresponding to the value of (A) minus (B), so that bearing end play will be within specification.
| Specification | Value |
|---|---|
| Bearing end play | 0—0.1 (0—0.004)mm (in) |
| Adjustment shim thickness | 0.10 (0.004), 0.15 (0.006), 0.30 (0.012)mm (in) |
Bearing end play
0—0.1 (0—0.004)mm (in)
Adjustment shim thickness
0.10 (0.004), 0.15 (0.006), 0.30 (0.012)mm (in)
Release fork

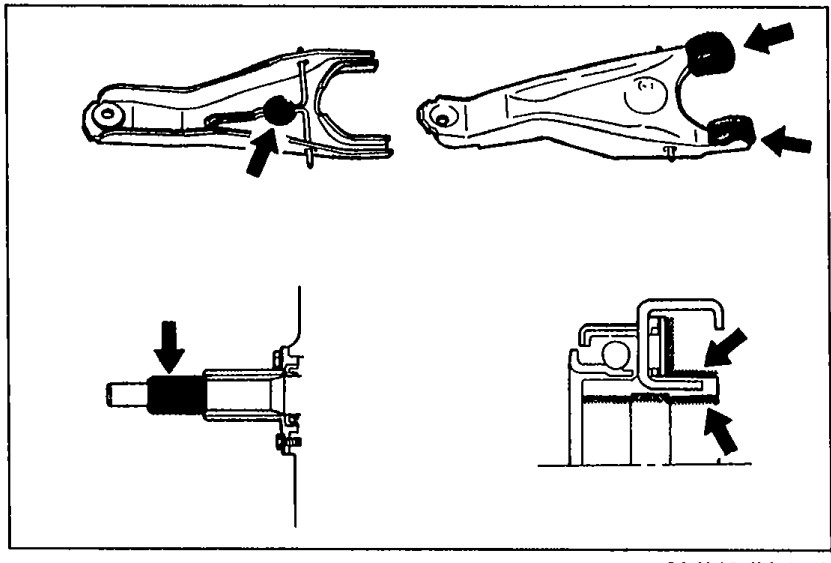

- 1Apply Mori white TA No.2 or equivalent organic molybdenum grease to the shaded areas of the release bearing and release fork.
9MU0JX-110 - 2Install the release bearing and release fork.
