Transmission Case Parts (continued) / Assembly note

J-43prose procedure

Continued from J-42

Parts DiagramFig. page-0374_fig1

Parts diagram

#	Part Name	Notes
1	Oil seal	Assembly Note, page J-43
2	Snap ring	—
3	Steel ball	—
4	Speedometer drive gear	—
5	Snap ring	—
6	Transmission case	—
7	Extension housing	Assembly Note, page J-43
8	Main drive gear bearing	Assembly Note, page J-43
9	Snap ring	—
10	Countershaft front bearing	Assembly Note, page J-43
11	Snap ring	—
12	Adjustment shim	Assembly Note, page J-44
13	Gasket	—
14	Front cover	—
15	Speedometer driven gear	—
16	Neutral switch	—
17	Back-up light switch	—
18	Boot	—
19	Release fork	Assembly Note, page J-44
20	Release bearing	Assembly Note, page J-44

Assembly note

Oil seal

1
Apply transmission oil to outer periphery.
2

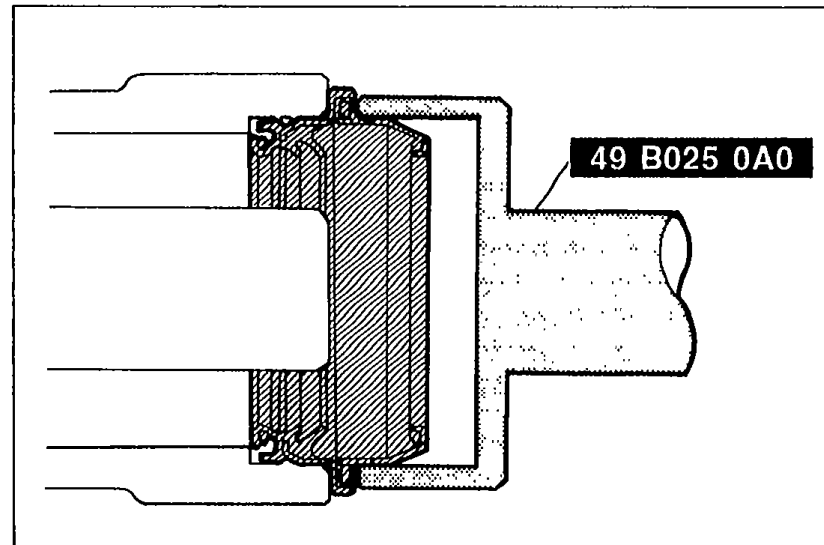

Install a new oil seal with the SST.
05U0JX-058

Extension housing

1
Apply sealant to the contact surfaces of the bearing housing and transmission case.
2

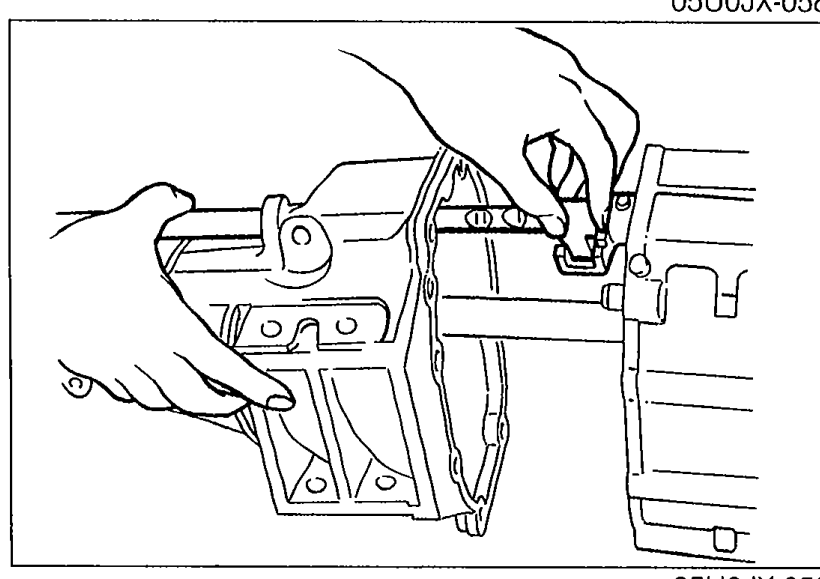

Align the inner shift lever and shift rod end groove, and install the extension housing.
05U0JX-059
3
Apply sealant to the bolt threads, and install the bolts.

Specification	Value
Tightening torque (extension housing bolts)	≈157 - 226N·m

Tightening torque (extension housing bolts)

157 - 226N·m

Main drive gear bearing

Drive on the main drive gear bearing with the SST, and secure it with a new snap ring.

Countershaft front bearing

Drive on the countershaft front bearing with the SST, and secure it with a new snap ring.
