TRANSMISSION OIL

J-8prose procedure

M/T transmission oil

INSPECTION

Transmission oil inspection

  1. 1
    Remove check plug (A).

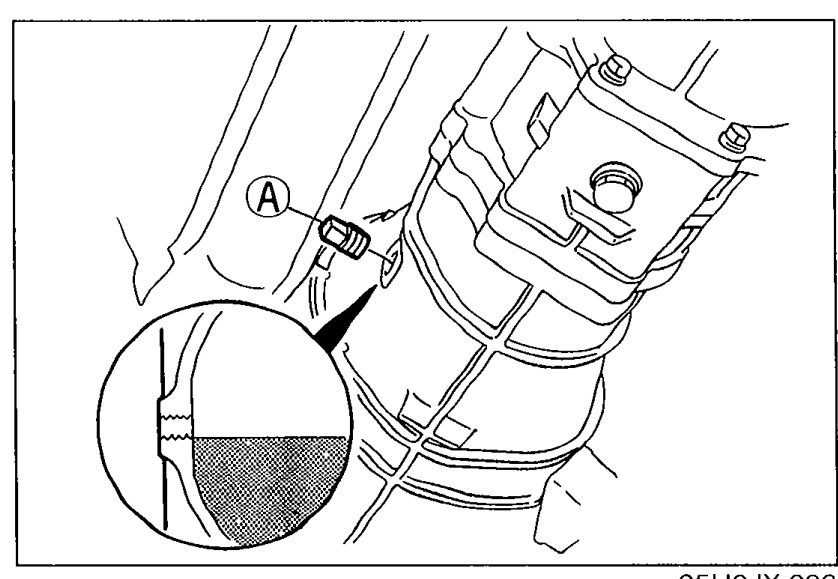

    Transmission case showing check plug (A) with magnified inset of the check plug hole at correct oil level (oil at the bottom of the hole).
    05U0JX-006
  2. 2
    Verify that the oil is at the bottom of the check plug hole. If it is low, add the specified oil from check plug (A).
  3. 3
    Wipe clean and apply sealant to the plug threads before installing.
Tightening torque (A)Check plug
25 - 39N·m

REPLACEMENT

Transmission oil replacement

  1. 1
    Remove the plugs ((A) and (B) with washer).

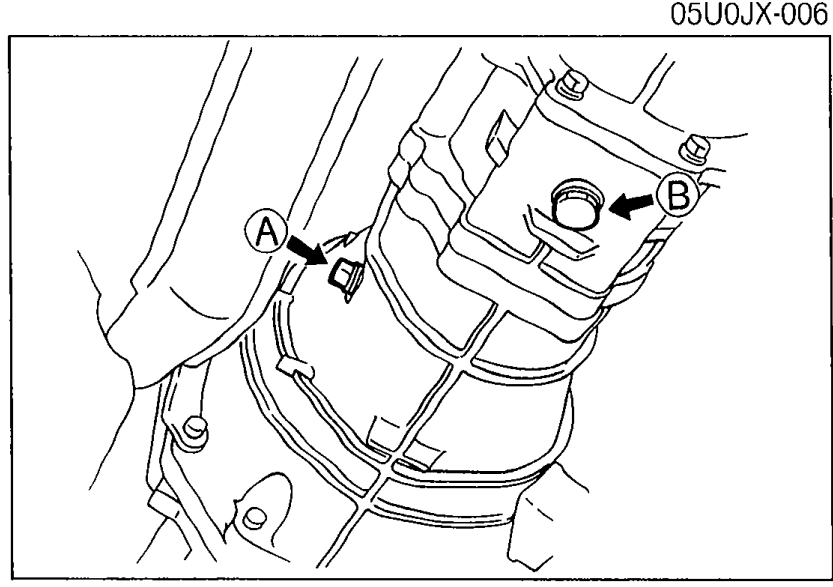

    Transmission case showing positions of plugs (A) check plug and (B) drain plug.
    9BU0J1-006
  2. 2
    Drain the oil into a suitable container.

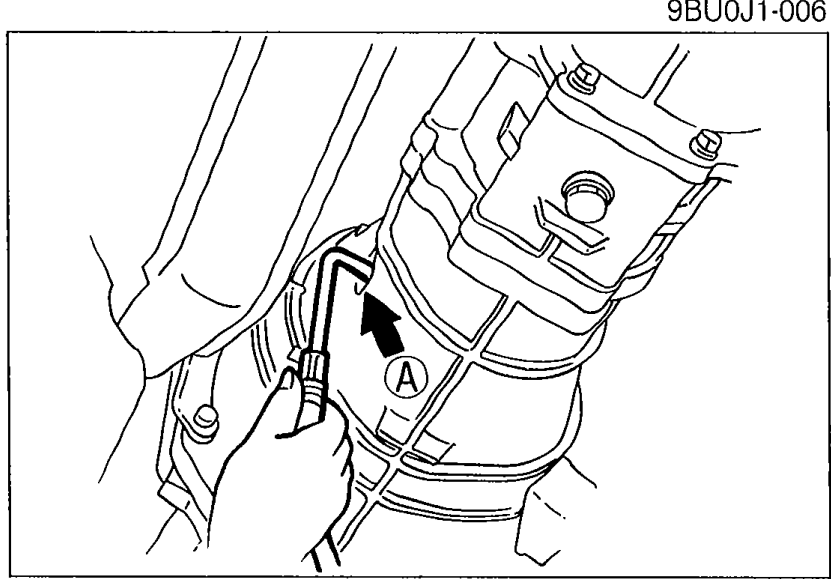

    Drain plug (A) being removed with arrow indicating oil drain flow downward.
    05U0JX-007
  3. 3
    Wipe all plugs clean.
  4. 4
    Apply sealant to plug thread (A).
  5. 5
    Install the drain plug (B) with new washer).
  6. 6
    Add the specified oil from check plug (A) port until the level reaches the bottom of the check plug hole.

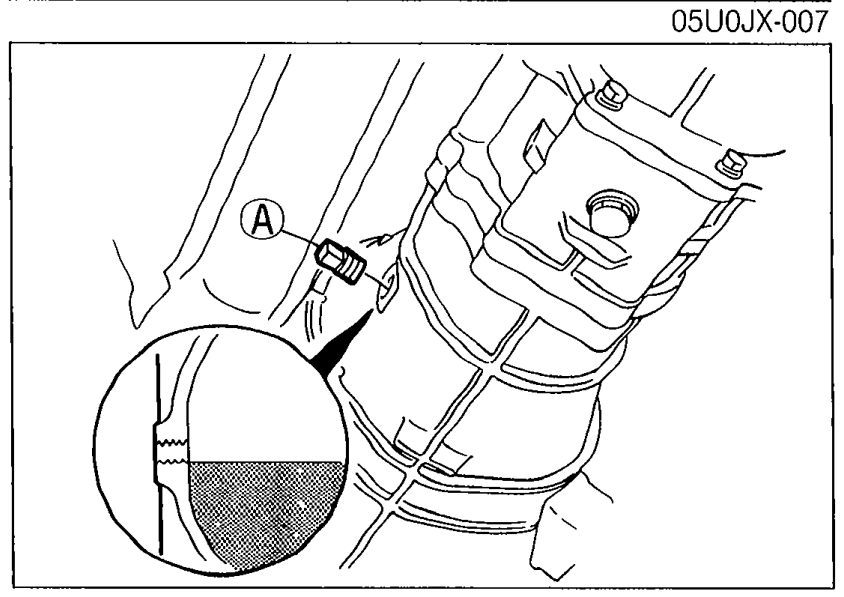

    Transmission case with check plug (A) reinstalled, with magnified inset showing correct oil level reaching the bottom of the check plug hole.
    9BU0J1-008
  7. 7
    Install plug (A).
Tightening torque (B)Drain plug
39 - 59N·m
Tightening torque (A)Check plug
25 - 39N·m
Specified oil — API service
GL-4 or GL-5
All-season
SAE 75W-90
Above 10°C (50°F)
SAE 80W-90
