TRANSMISSION - Assembly: Washer selection, Intermediate housing, Roll pin
J-41prose procedureCAUTION
The total thickness of the front and rear washers should be 5.9—6.0mm (0.2323—0.2362 in).
4. The following washer thicknesses are available.
Available washer thicknesses
2.2mm (0.0866 in)
Thickness B3.2mm (0.1260 in)
2.7mm (0.1063 in)
Thickness B3.7mm (0.1457 in)
3.0mm (0.1181 in)
Thickness B
Intermediate housing

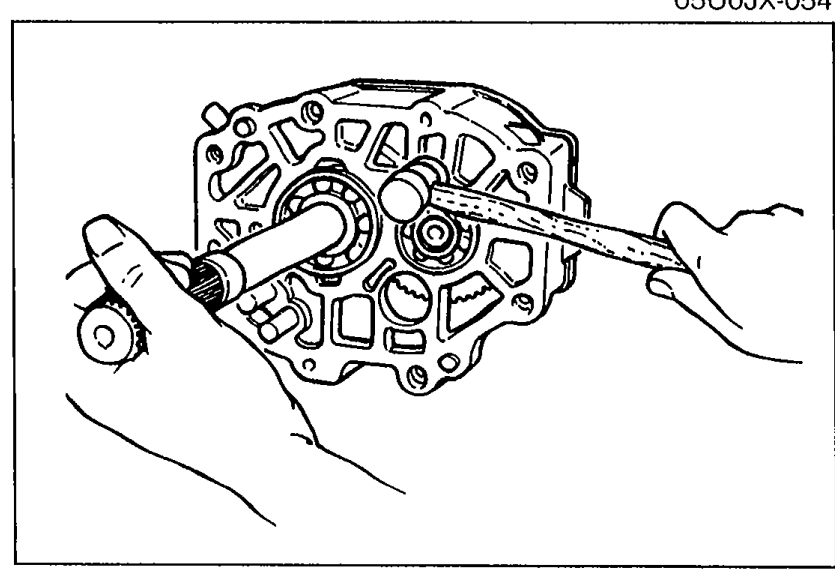

- 1Apply sealant to the contacting surfaces of the intermediate housing and bearing housing.
97U0J1-060 - 2Mount the intermediate housing to the bearing housing by tapping it lightly with a plastic hammer.
Roll pin
CAUTION
Install the roll pin with the seam facing forward.
Install a new roll pin into each shift rod end.
