TRANSMISSION - Installation note

J-46prose procedure
Continued from J-45

Installation note

Transmission

Tilt the engine by pushing up on the front of oil pan with a wooden block and a jack for easy installation of the transmission.

Power plant frame (PPF)

Power plant frame (PPF) installation

  1. 1

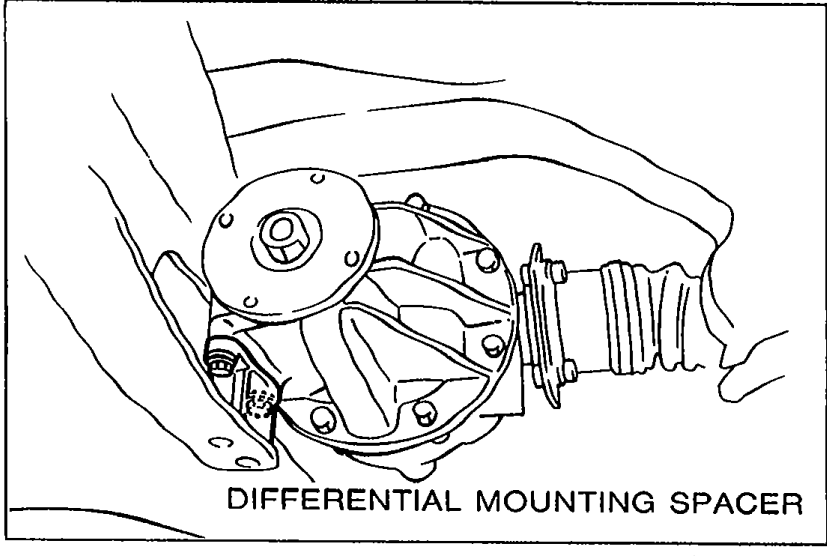

    Install the differential mounting spacer.
    Tightening torque: 37—52 N·m (3.8—5.3 m-kg, 27—38 ft-lb)
    Photo of the differential mounting spacer installed at the differential nose.
    05U0MX-078
  2. 2
    Support the transmission with a jack so that it is level.
  3. 3
    Position the PPF and snugly tighten the transmission-side bolts by hand.
  4. 4

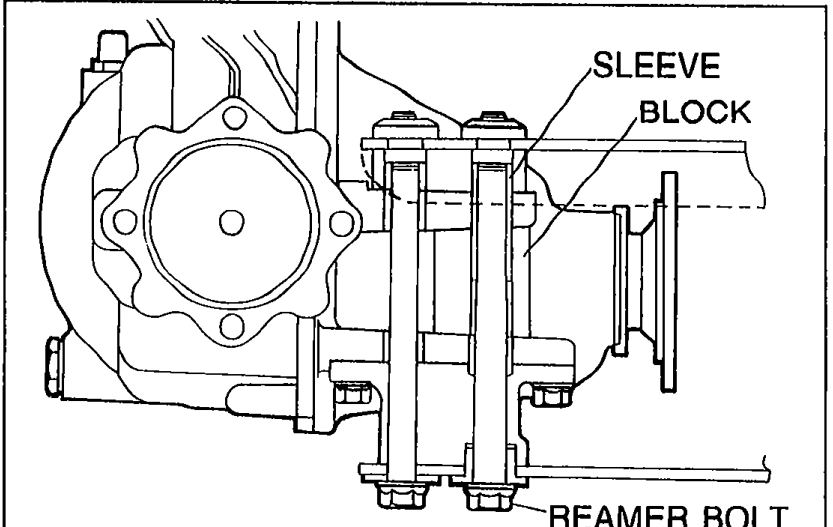

    Verify that the sleeve is installed into the block.
    The reamer bolt is installed in the forward hole.
    Detail of the sleeve, block and reamer bolt arrangement. Labels point to SLEEVE, BLOCK and REAMER BOLT.
    05U0MX-079
  5. 5
    Install the spacer and bolts, then snugly tighten them.
  6. 6

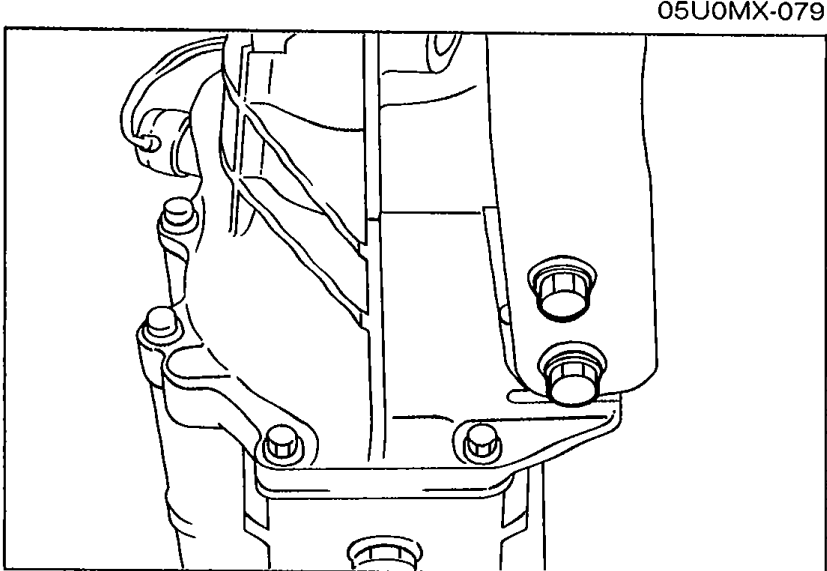

    Snugly install the power plant frame bracket.
    Photo of the power plant frame bracket installed at the transmission side, with the transmission-side bolts in place.
    05U0MX-080
  7. 7
    Tighten the transmission-side bolts.
    Tightening torque: 104—123 N·m (10.6—12.6 m-kg, 77—91 ft-lb)
  8. 8

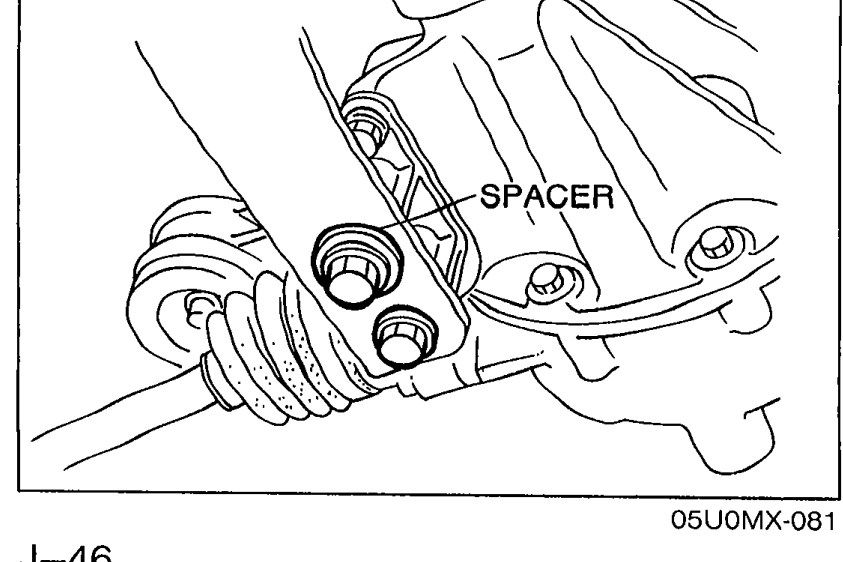

    Tighten the differential-side bolts.
    Tightening torque: 104—123 N·m (10.6—12.6 m-kg, 77—91 ft-lb)
    Photo of the differential-side bolts being tightened, with SPACER labelled.
    05U0MX-081
Differential mounting spacerStep 1
37 - 52N·m
Transmission-side boltsStep 7
104 - 123N·m
Differential-side boltsStep 8
104 - 123N·m
