Assembly note - Clutch hub assembly

J-32prose procedure
Continued from J-31

Assembly note

Clutch hub assembly

  1. 1

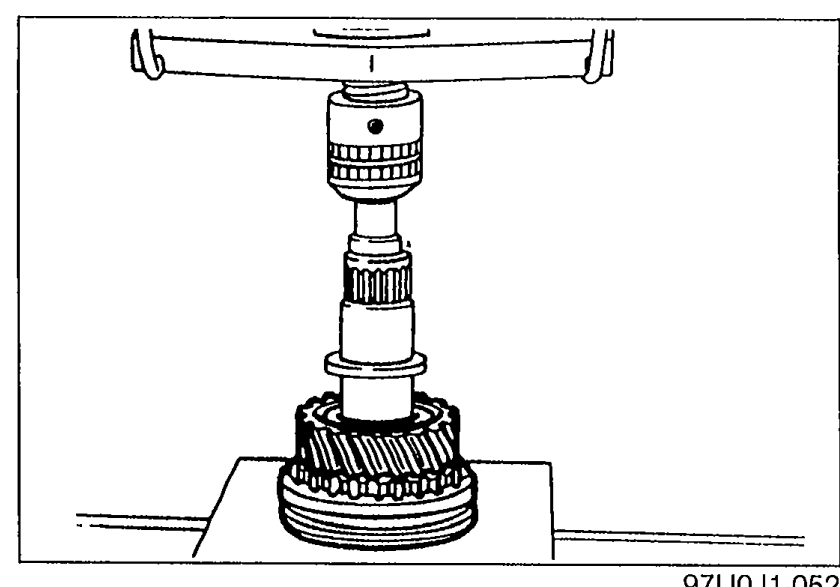

    Set the 2nd gear and the 1st/2nd clutch hub assembly on the mainshaft, then press in the mainshaft.
    Pressing the mainshaft into the 2nd gear and 1st/2nd clutch hub assembly seated on a press fixture.
    97U0J1-052
  2. 2

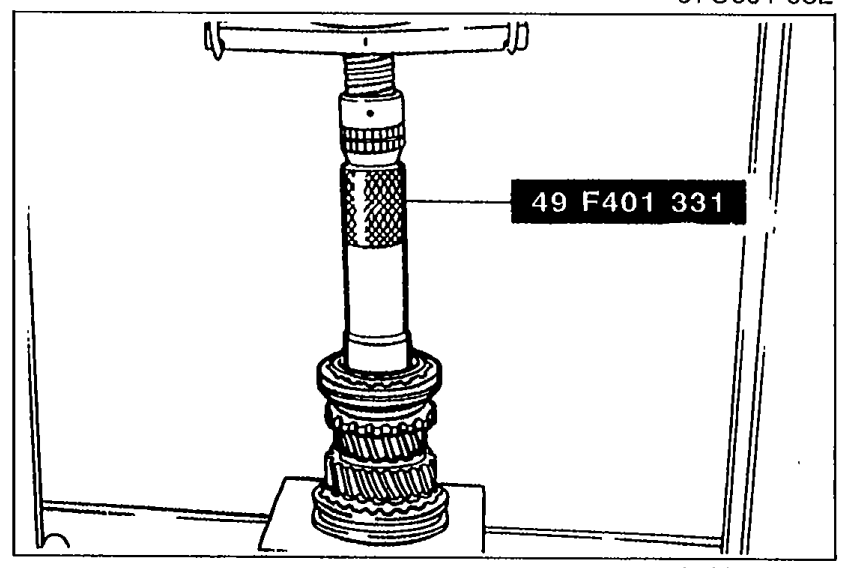

    Set the 3rd gear and 3rd/4th clutch hub assembly on the mainshaft, then press on the 3rd/4th clutch hub assembly with the SST.
    Pressing the 3rd/4th clutch hub assembly onto the mainshaft (with 3rd gear in place) using SST 49 F401 331.
    97U0J1-053
  3. 3

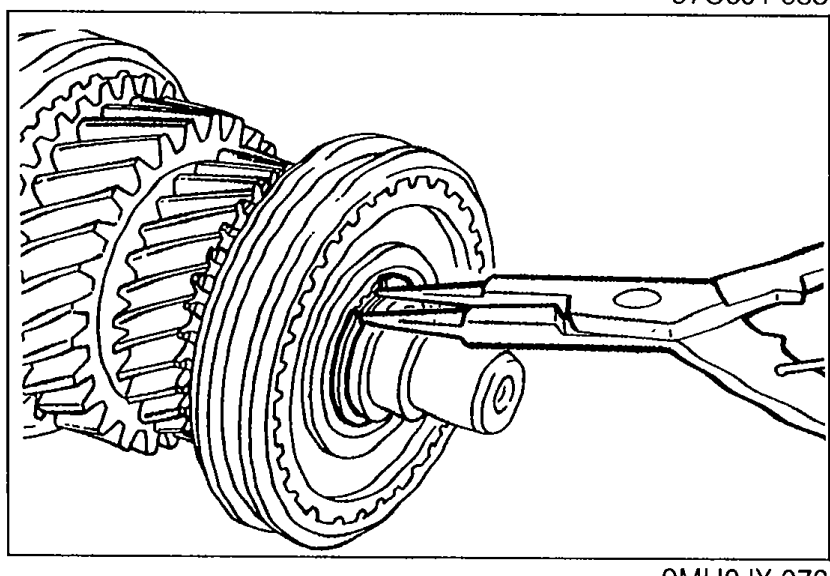

    Install a new snap ring on the front of the mainshaft.
    Installing a new snap ring on the front of the mainshaft using snap ring pliers.
    9MU0JX-073
  4. 4

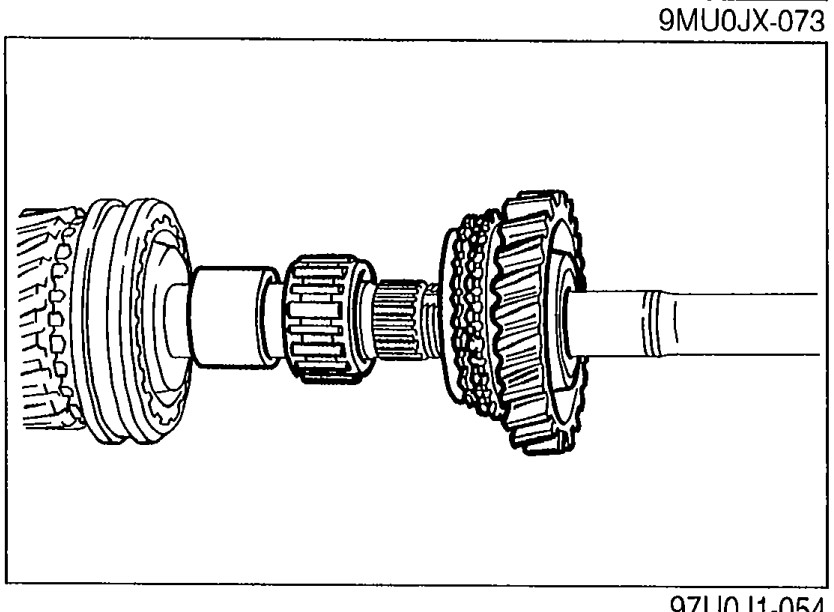

    Install the inner race, needle bearing, and 1st gear.
    Installing the inner race, needle bearing, and 1st gear onto the rear of the mainshaft.
    97U0J1-054
