Assembly note

J-28prose procedure
Continued from J-27

Assembly note

Oil seal

  1. 1
    Apply transmission oil to outer periphery.
  2. 2
    Install a new oil seal with the SST.

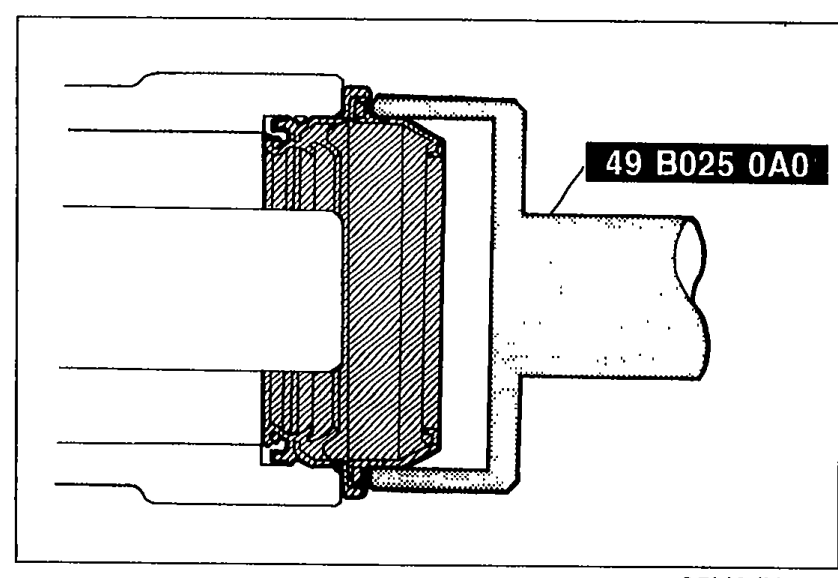

    SST (part 49 B025 0A0) being used to install a new oil seal into the extension housing. Shows the cylindrical seal installer pressing into the seal area.
    05U0JX-027

Rod cover

  1. 1
    Apply transmission oil to rubbers on the rod cover.
  2. 2
    Install the rod cover with the mark facing forward.

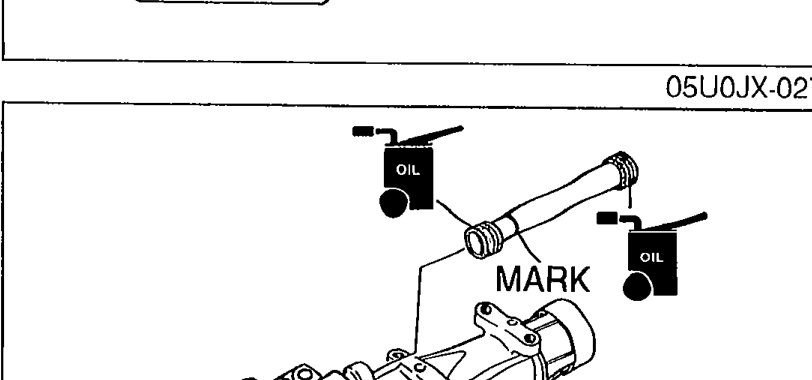

    Rod cover installation showing the rod cover being placed onto the transmission case with MARK arrow indicating proper forward orientation.
    05U0JX-028

Roll pin

Install a new roll pin into the control lever end.

Select-lock spindle, spring, and spring cap

  1. 1
    Install the select-lock spindle, spring, and spring cap.

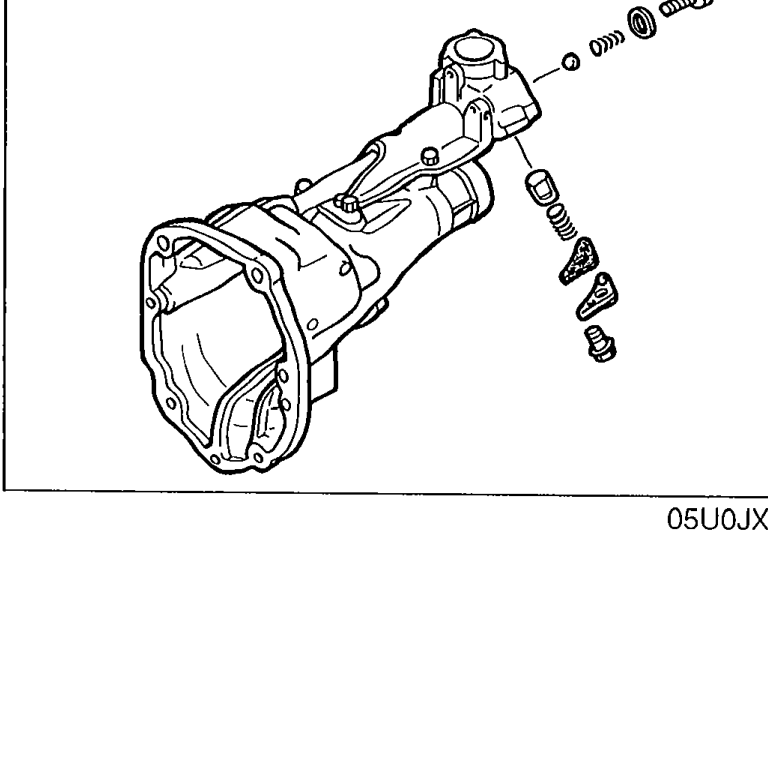

    Select-lock spindle, spring, and spring cap being installed into the extension housing. Shows the components in exploded position relative to their mounting hole.
    05U0JX-030
  2. 2
    Push the select-lock spindle down by pushing on the control rod.
Tightening torque (select-lock spindle)
76 - 108N·m
