Bearing Housing Parts

J-29parts diagram
Assemble in the order shown in the figure, referring to Assembly Note.
Parts DiagramFig. fig1
Parts diagram
#Part NameNotes
1Bearing housing—
2Adjustment shimAssembly Note. page J-30
3Countershaft center bearingAssembly Note. page J-29
4Adjustment shimAssembly Note. page J-30
5Mainshaft front bearingAssembly Note. page J-30
6Bearing cover—
7Reverse idler gear shaftAssembly Note. page J-30
8Thrust washer—
9Reverse idler gear—
10Adjustment washerAssembly Note. page J-30
11Snap ring—
Bearing cover bolt
177 - 255N·m
Reverse idler gear shaft bolt
86 - 127N·m

Assembly note

Countershaft center bearing

  1. 1
    Press the countershaft center bearing into the bearing housing with a suitable pipe.

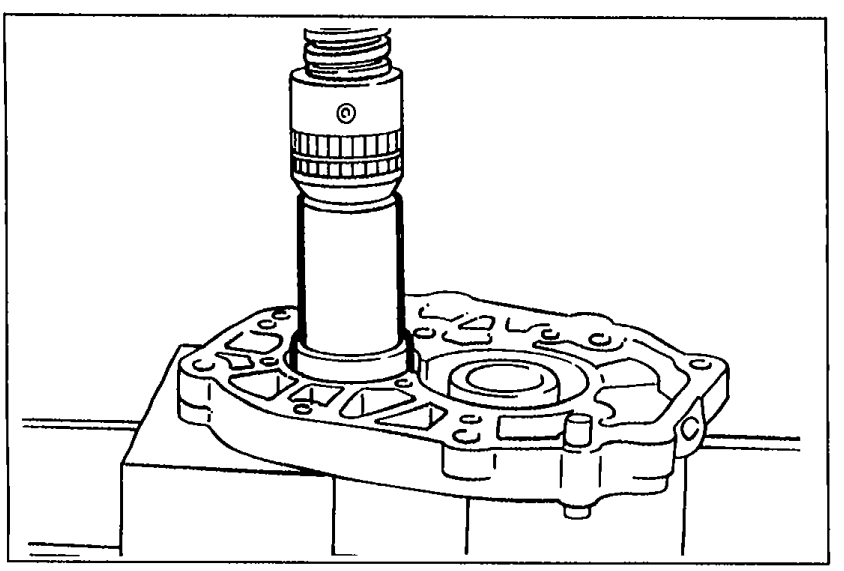

    Illustration showing the countershaft center bearing being pressed into the bearing housing using a suitable pipe. The bearing housing is held in a vise and a tubular driver is used over the bearing.
    05U0JX-032
