BRAKE SYSTEM — Inspection (Disc pad / Disc plate)
P-20prose procedureInspection
Check the following and repair or replace parts as necessary.
Disc pad
Inspection — Disc pad
- 1Oil or grease on facing.
05U0PX-039 - 2Abnormal wear or cracks.
- 3Deterioration or damage by heat.

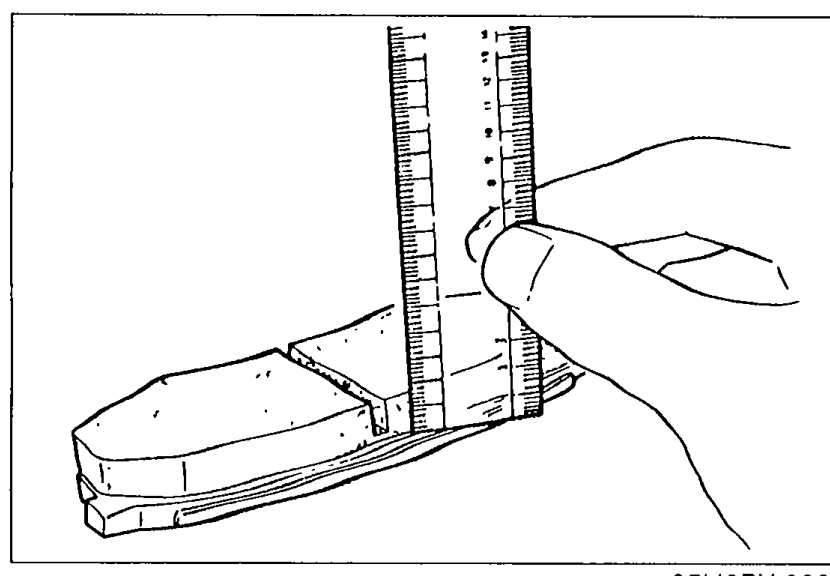

- 4Remaining lining thickness.
| Specification | Value |
|---|---|
| Thicknessmin. | 1.0mm (0.04 in) |
Thicknessmin.
1.0mm (0.04 in)
Disc plate
Inspection — Disc plate

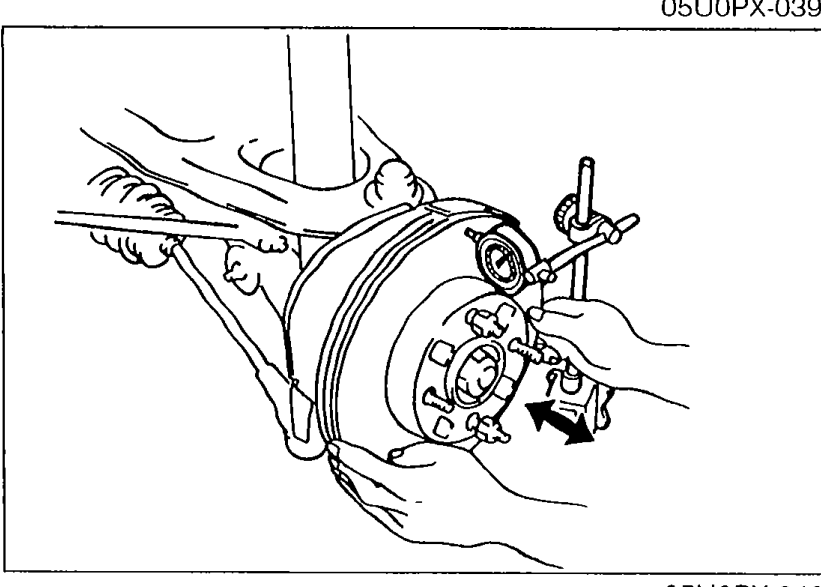

- 1Runout.
05U0PX-040 - 2Wear and damage.
05U0PX-041
| Specification | Value |
|---|---|
| Runoutmax. | 0.1mm (0.004 in) |
Runoutmax.
0.1mm (0.004 in)
CAUTION
• There must be no wheel bearing looseness.

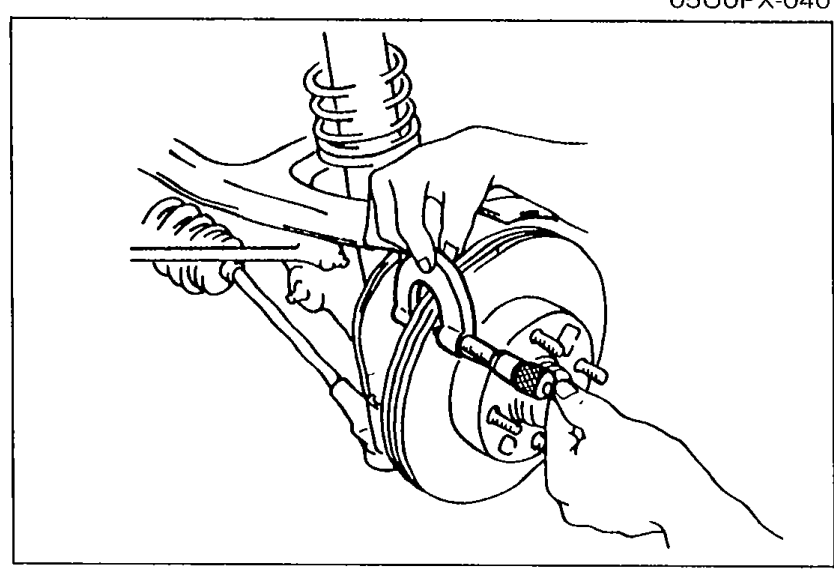

• The measurement must be taken at the outer edge of the disc plate surface.
| Specification | Value |
|---|---|
| Thickness — Standard | 18mm (0.71 in) |
| Thickness — Minimum | 16mm (0.63 in) |
Thickness — Standard
18mm (0.71 in)
Thickness — Minimum
16mm (0.63 in)
