BRAKE SYSTEM - CALIPER

P-25parts diagram

CALIPER

Disassembly / Inspection / Assembly

1. Disassemble in the order shown in the figure, referring to Disassembly Note.
2. Install in the reverse order of removal.
Parts DiagramFig. fig1
Parts diagram
#Part NameNotes
1Dust sealREPLACE. Inspect for damage and poor sealing
2PistonDisassembly ... below. Assembly ... page P-26. Inspect for wear and rust
3Manual adjustment gear—
4Snap ring—
5Adjusting bolt—
6O-ringREPLACE
7Connecting link—
8Piston sealSST REPLACE
9Spring—
10Operating lever—
11Cap and bleeder screw—
12Caliper bodyInspect for damage and cracks

Disassembly note

Piston

Piston Disassembly

  1. 1

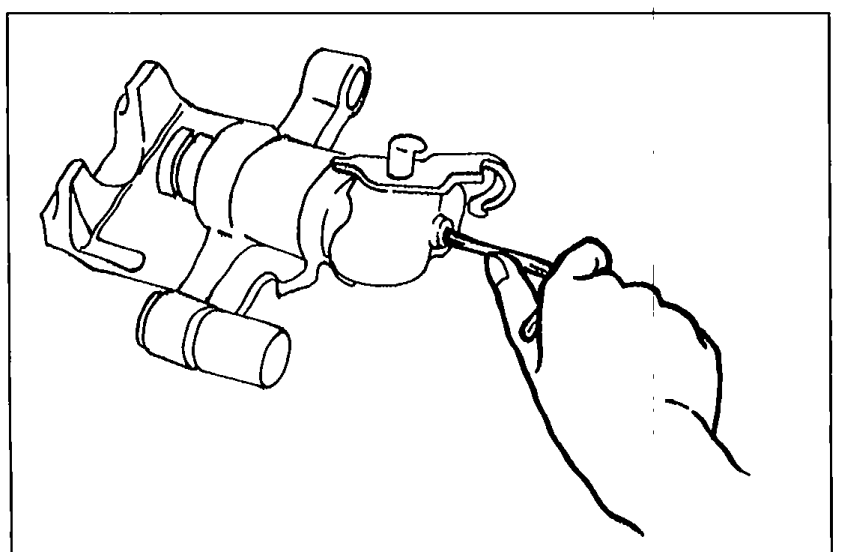

    Turn the adjustment gear clockwise with an Allen wrench to remove the piston from it. (Turn the adjustment gear until it turns easily.)
    Illustration showing a hand using an Allen wrench to turn the adjustment gear clockwise to remove the piston from the caliper.
    05U0PX-052
