BRAKE SYSTEM — Rear brake Inspection (Disc pad / Disc plate)
P-24prose procedureInspection
Check the following and repair or replace parts as necessary.
Disc pad
Inspection — Disc pad
- 1Oil or grease on facing.
05U0PX-048 - 2Abnormal wear or cracks.
- 3Deterioration or damage by heat.

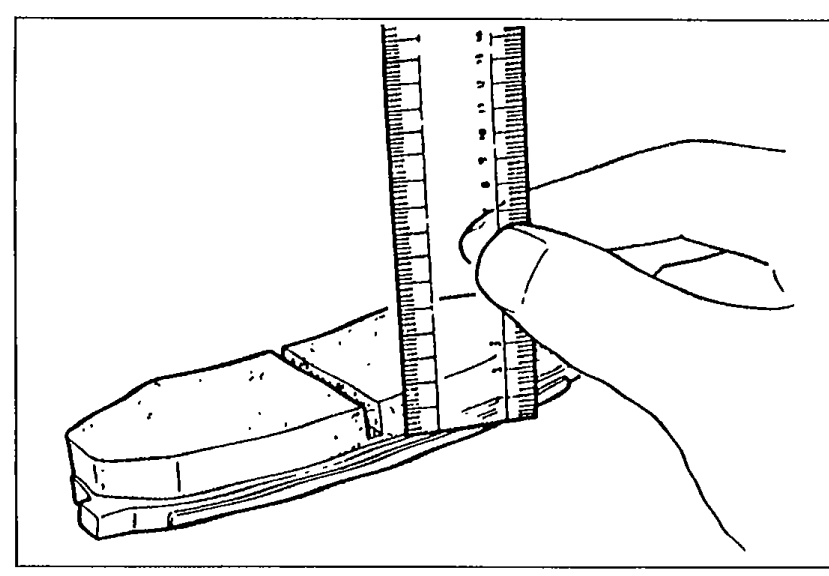

- 4Remaining lining thickness.
| Specification | Value |
|---|---|
| Thicknessmin. | 1.0mm (0.04 in) |
Thicknessmin.
1.0mm (0.04 in)
Disc plate
Inspection — Disc plate

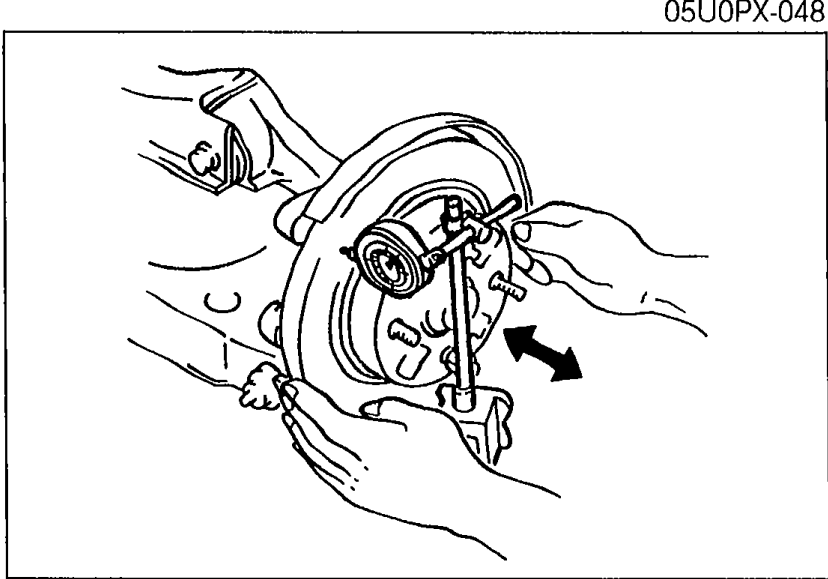

- 1Runout.
05U0PX-049 - 2Wear or damage.
05U0PX-050
| Specification | Value |
|---|---|
| Runoutmax. | 0.1mm (0.004 in) |
Runoutmax.
0.1mm (0.004 in)
CAUTION
• There must be no wheel bearing looseness.
• The measurement must be taken at the outer edge of the disc plate surface.

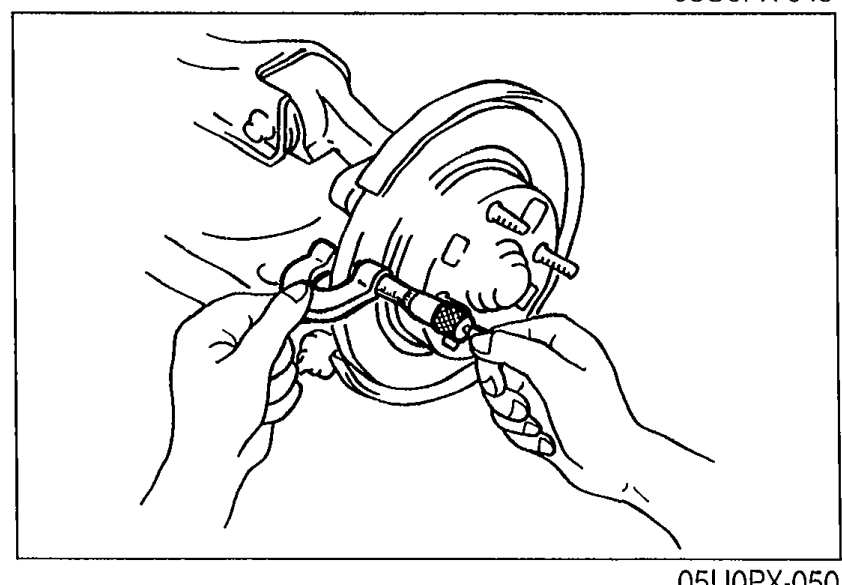

| Specification | Value |
|---|---|
| Thickness — Standard | 9.0mm (0.35 in) |
| Thickness — Minimum | 7.0mm (0.28 in) |
Thickness — Standard
9.0mm (0.35 in)
Thickness — Minimum
7.0mm (0.28 in)
