BRAKE SYSTEM - CALIPER (continued)

P-26prose procedure

Continued from P-25

Piston Disassembly (continued)

2

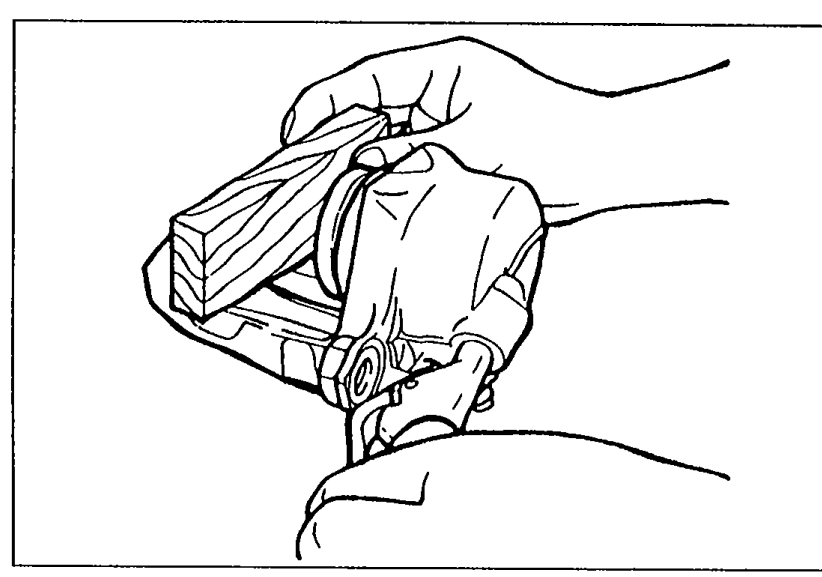

Place a piece of wood in the caliper; then blow compressed air through the hole to force the piston out of the caliper.
05U0PX-053

CAUTION

Blow the compressed air slowly to prevent the piston from popping out.

Assembly

Piston

Piston Assembly

1

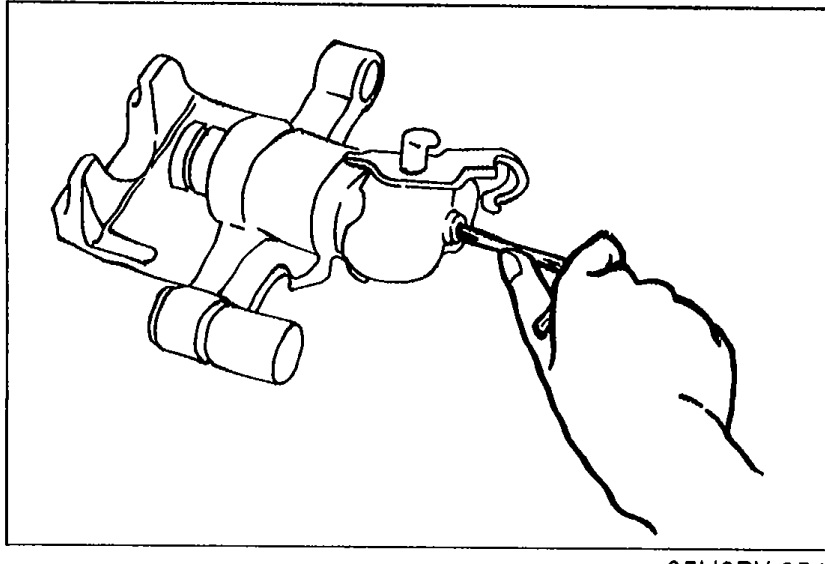

Insert the piston into the caliper and turn the adjustment gear counterclockwise with an Allen wrench to pull the piston in fully. (Turn the adjustment gear until it stops.)
05U0PX-054
