BRAKE SYSTEM
P-8prose procedurePedal play
Pedal play check
- 1Depress the pedal a few times to eliminate the vacuum in the system.

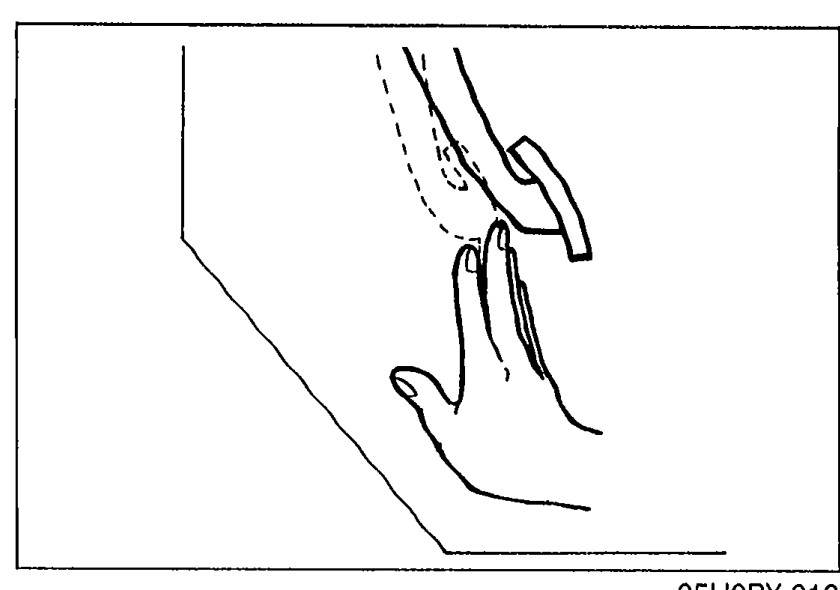

05U0PX-012 - 2Lightly depress the pedal by hand until resistance is felt, and check the free play.
| Specification | Value |
|---|---|
| Free play | 4—7mm (0.16—0.28 in) |
Free play
4—7mm (0.16—0.28 in)
Adjustment
- 1Loosen locknuts (D) and turn rod (C) to adjust the free play.

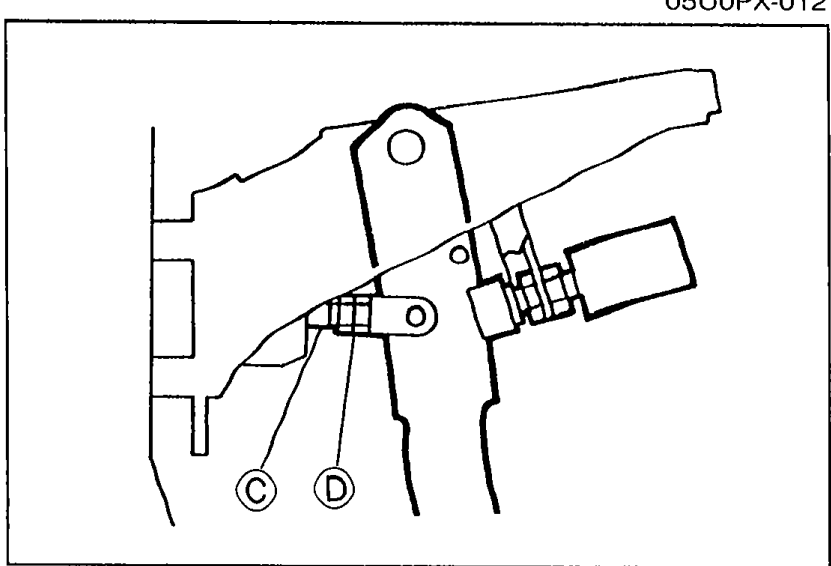

05U0PX-013 - 2Tighten locknuts (D).
Pedal-to-floor clearance
Check that the distance from the floor panel to the center of the upper surface of the pedal pad is as specified when the pedal is depressed with a force of 589 N (60 kg, 132 lb).
| Specification | Value |
|---|---|
| Pedal-to-floor clearanceWithout carpet | 95mm (3.74 in) |
Pedal-to-floor clearanceWithout carpet
95mm (3.74 in)
If the distance is less than specified, inspect for air in the brake system.
