TRUNK LID
S-17prose procedureRemoval Note
Balance spring
Balance spring removal

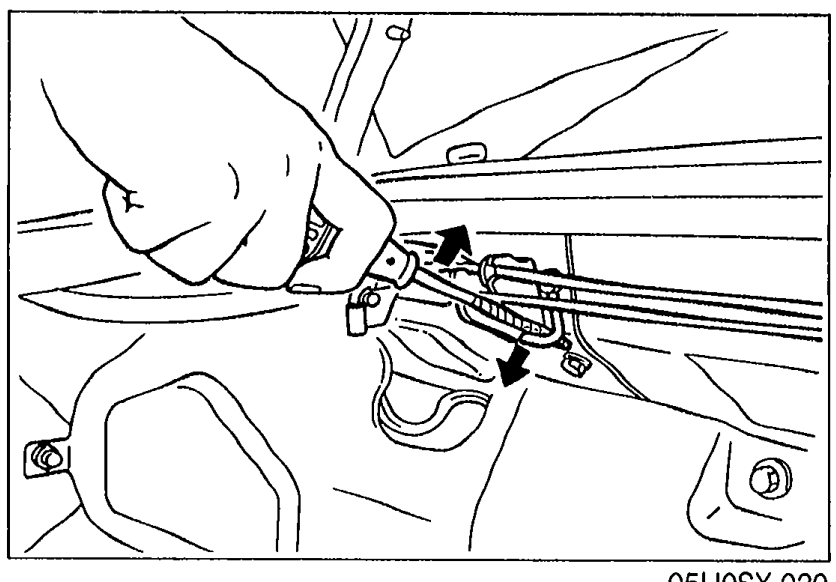

- 1Lift the balance spring with a protected screwdriver.Use care when removing the balance spring; personal injury could result.
05U0SX-020 - 2Remove the balance spring.
Adjustment
Trunk lid
Loosen the trunk lid mounting nuts and adjust as shown.
| Specification | Value |
|---|---|
| Trunk-to-body gap (Sec. A-A) | 5 ± 1.2 (0.2 ± 0.05)mm (in) |
| Trunk-to-body gap (Sec. B-B) | 5 ± 1.2 (0.2 ± 0.05)mm (in) |
Trunk-to-body gap (Sec. A-A)
5 ± 1.2 (0.2 ± 0.05)mm (in)
Trunk-to-body gap (Sec. B-B)
5 ± 1.2 (0.2 ± 0.05)mm (in)
Balance spring
Slide the balance spring to the desired position as described below with a protected screwdriver.
Balance spring set position
Standard
HingeLeft side
Set position a
Set position bO
Standard
HingeRight side
Set position aO
Set position b
Increase
HingeLeft side
Set position aO
Set position b
Increase
HingeRight side
Set position a
Set position b
Decrease
HingeLeft side
Set position a
Set position bO
Decrease
HingeRight side
Set position a
Set position bO
NOTE
O: Indicated position
WARNING
Use care when moving the balance spring; personal injury could result.
