Mazda MX-5 NA silhouetteMX-5 NA

CONVERTIBLE TOP

S-65prose procedure
Continued from S-64

Installation Note

Top fabric

Top fabric installation

  1. 1
    Remove the original double-sided adhesive tape from the front header.
  2. 2
    Degrease the front header with ethyl alcohol.
  3. 3
    Install new double-sided adhesive tape to the front header.

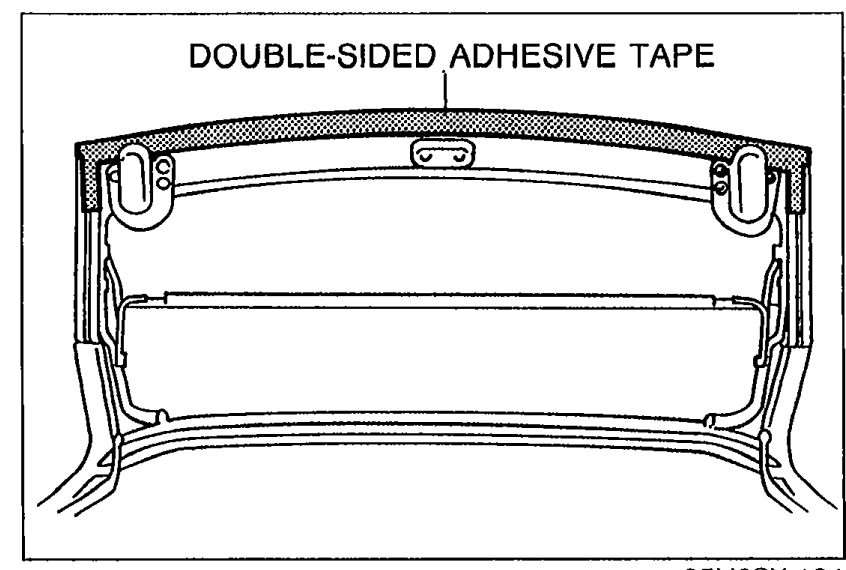

    Illustration of the convertible top front header with a horizontal strip labeled 'DOUBLE-SIDED ADHESIVE TAPE' applied along the upper edge of the header bar.
    05U0SX-134
  4. 4
    Thread the cables into the top fabric.

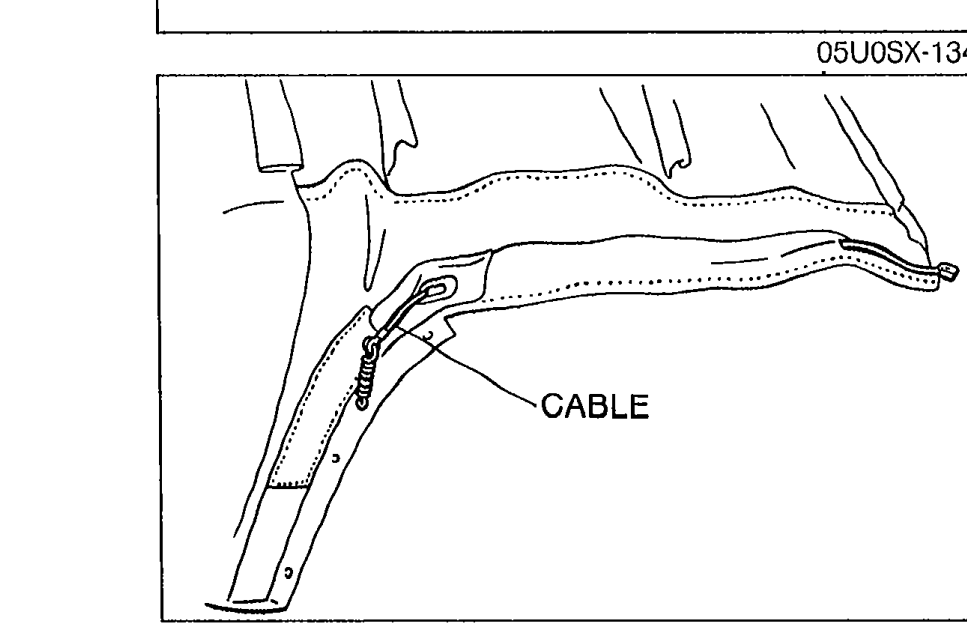

    Illustration showing the convertible top fabric with a cable being threaded through its sewn channel; the cable is labeled 'CABLE'.
    05U0SX-135
  5. 5
    Place the link assembly over the top fabric.
    Install the top fabric to the bows, beginning from the rear bow. Perform Steps 6, 7, and 8.

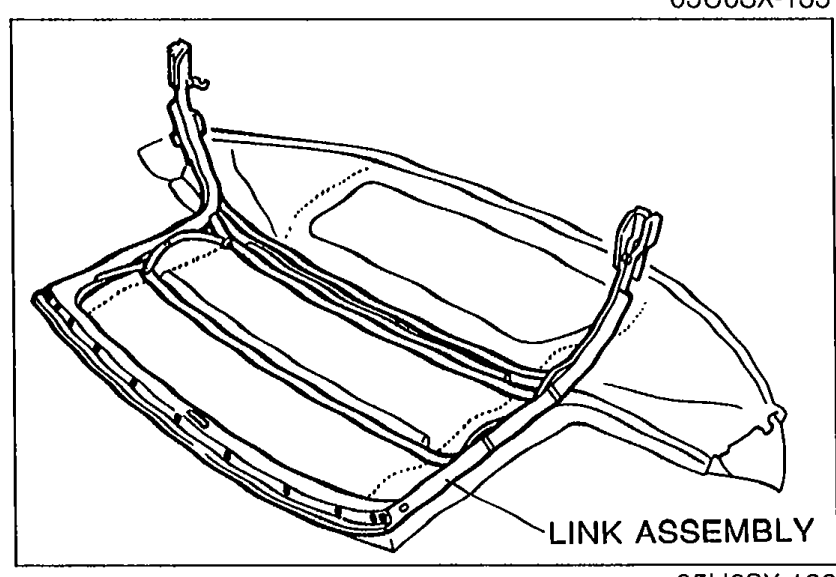

    Illustration of the convertible top with the link assembly being placed over the top fabric; the link assembly is labeled 'LINK ASSEMBLY'.
    05U0SX-136
  6. 6
    Roll the top fabric over the bow retainer.

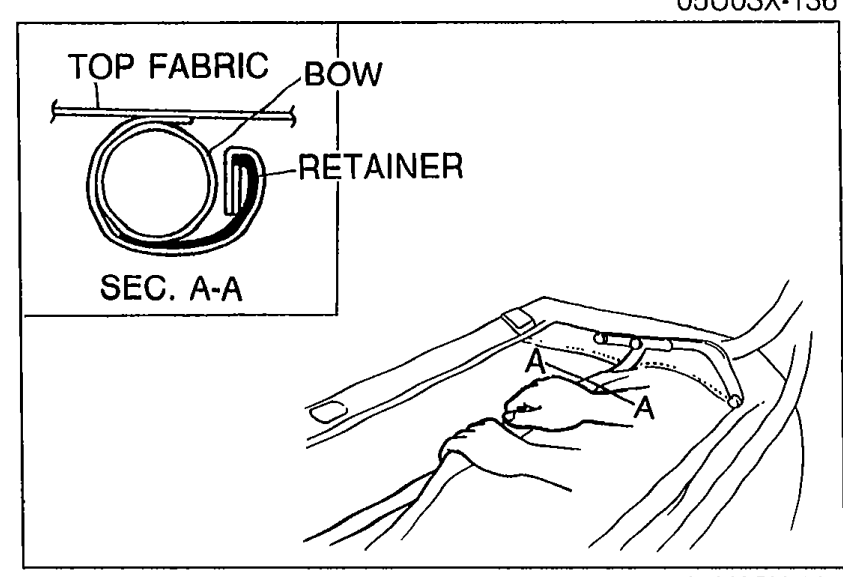

    Sectional view A-A at top showing TOP FABRIC, BOW, and RETAINER cross-section, with a lower illustration of a hand rolling the top fabric over the bow retainer.
    05U0SX-137
  7. 7
    Hang the end of the top fabric on the bow retainer.
  8. 8
    Clamp the top fabric to the bow with protected water pump pliers.
    Pull the top fabric by hand to verify that it is held securely.

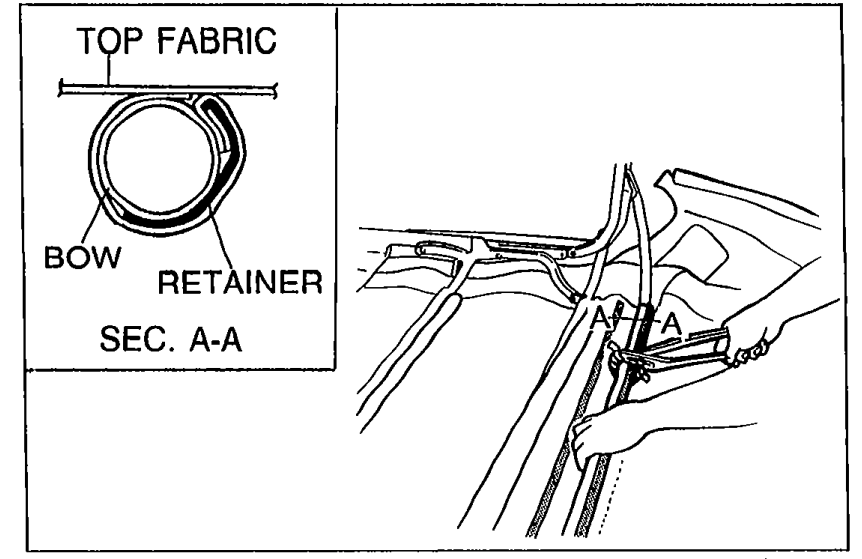

    Sectional view A-A showing TOP FABRIC clamped over BOW with RETAINER underneath; lower illustration depicts pliers clamping the fabric to the bow.
    05U0SX-138
  9. 9
    Affix the top fabric to the rear bow with the Velcro.
