WINDSHIELD — PREPARATION / COMPONENTS / Removal / Installation

S-38parts diagram
Continued from S-37

PREPARATION

SST

COMPONENTS

Removal / Installation

Removal / Installation

  1. 1
    Remove in the order shown in the figure.

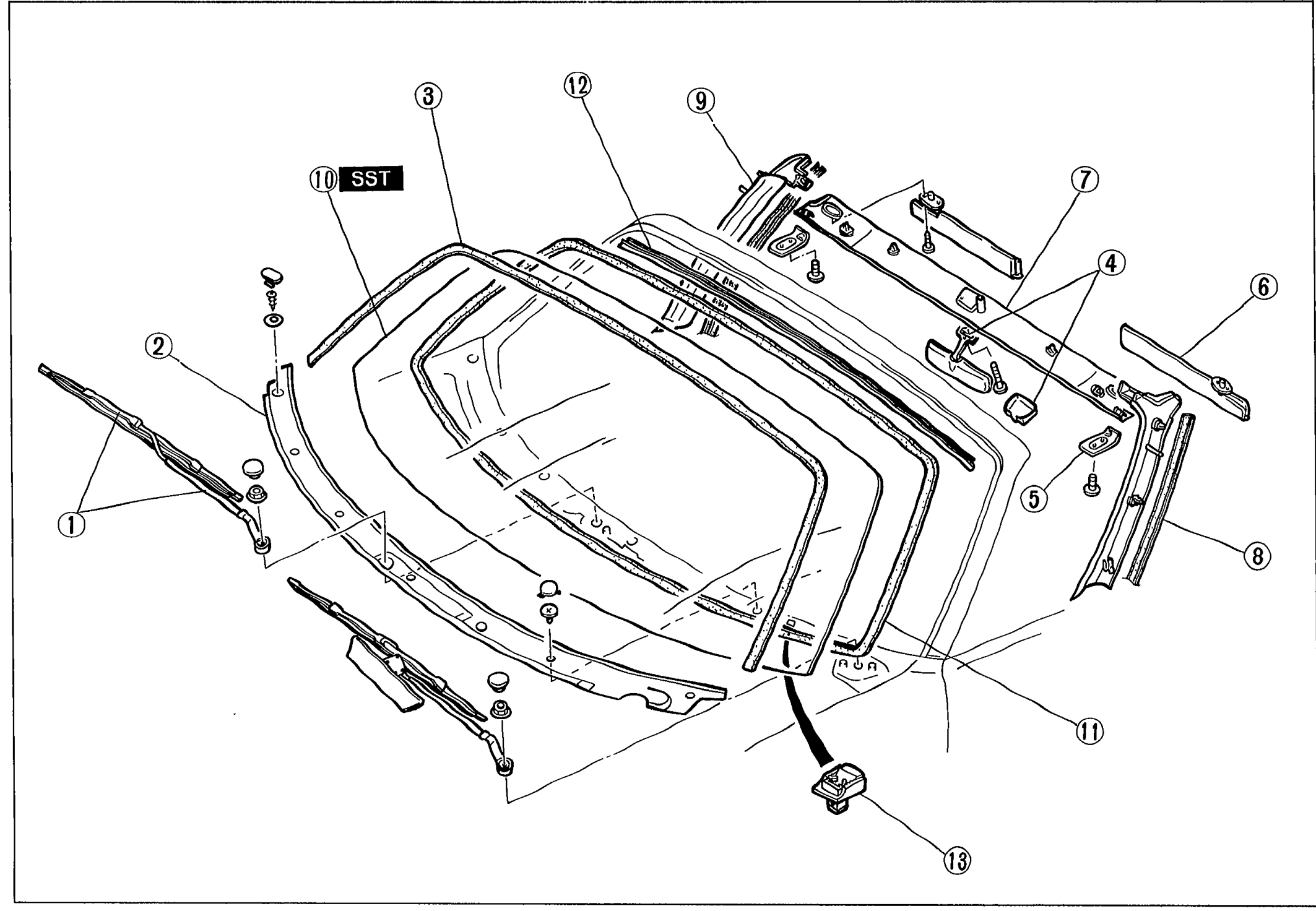

    Exploded view of the windshield assembly seen from the cabin side, showing balloon callouts 1-13 for wiper arm and blade, cowl grille, windshield molding, rearview mirror and cover, striker, sunvisor, front header trim, weatherstrip, A-pillar trim, windshield glass, dam, upper protector, and spacer. An SST tag at the upper-left indicates use of the 49 0305 870A tool.
    05U0SX-063
  2. 2
    Install in the reverse order of removal.

Component callouts

1
ComponentWiper arm and blade
ReferenceAdjustment ...... page S-36
2
ComponentCowl grille
Reference
3
ComponentWindshield molding
ReferenceInstallation Note page S-28
4
ComponentRearview mirror and cover
Reference
5
ComponentStriker
Reference
6
ComponentSunvisor
Reference
7
ComponentFront header trim
ReferenceRemoval Note .. page S-54
8
ComponentWeatherstrip
Reference
9
ComponentA-pillar trim
ReferenceRemoval Note ... page S-54
10
ComponentWindshield
ReferenceRemoval Note .. page S-39, Installation Note page S-39
11
ComponentDam
Reference
12
ComponentUpper protector
Reference
13
ComponentSpacer
Reference
