REAR WINDOW GLASS (DETACHABLE HARD TOP) — PREPARATION / COMPONENTS / Removal / Installation
S-42parts diagramDetachable hard top model only.
PREPARATION
SST
COMPONENTS
Removal / Installation
NOTE
Use the SST (49 0305 870A) to remove and install the rear window glass.
Removal / Installation
- 1Remove in the order shown in the figure.
05U0SX-073 - 2Install in the reverse order of removal.

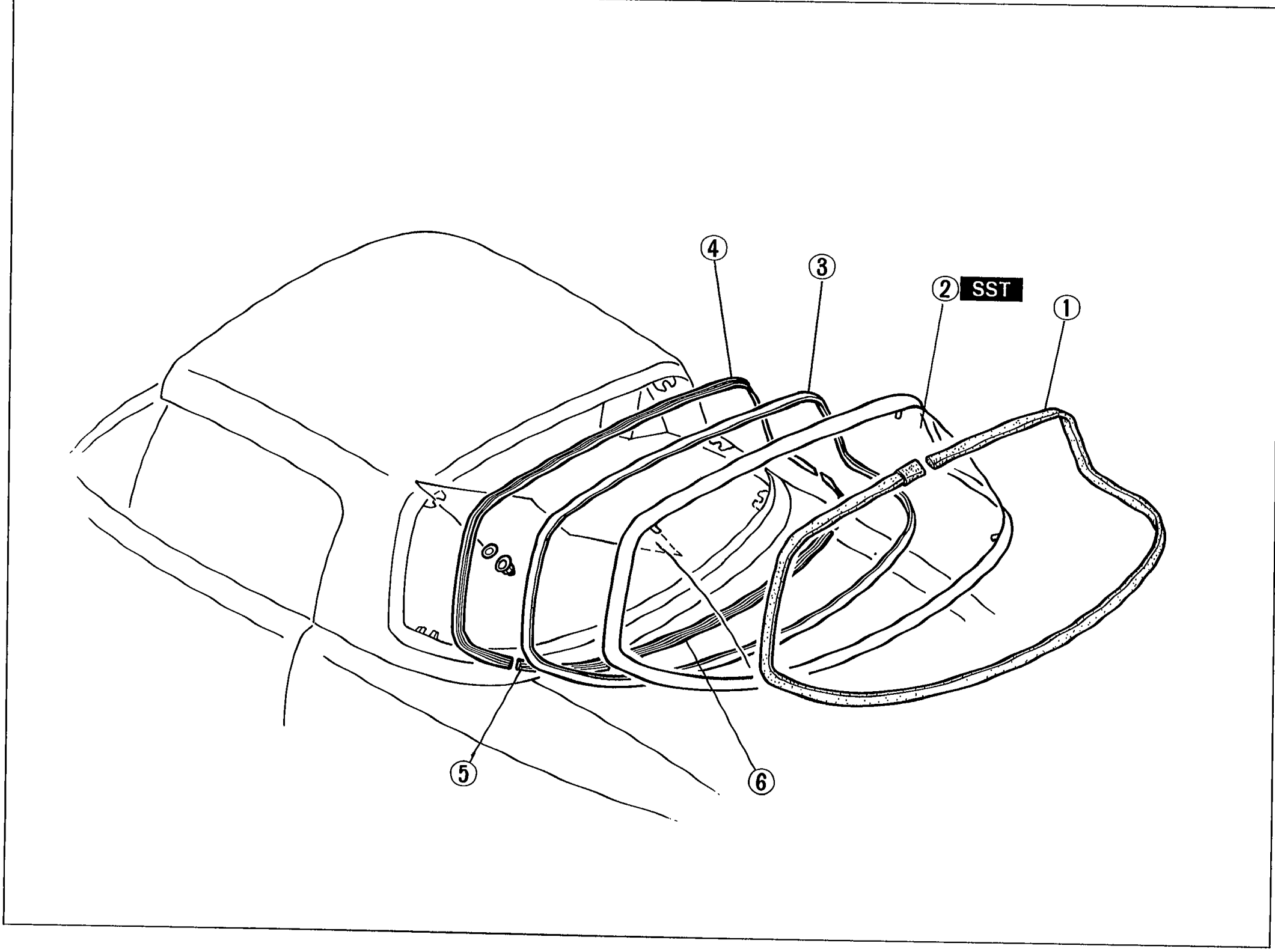

Component callouts
1
ComponentRear window molding
ReferenceInstallation Note .................. page S-29
2
ComponentRear window glass
ReferenceRemoval Note ................. page S-43; Installation Note ................. page S-43
3
ComponentDam
Reference
4
ComponentUpper protector
Reference
5
ComponentLower protector
Reference
6
ComponentSide protector
Reference
