WINDSHIELD WIPER AND WASHER — Disassembly / Assembly

S-37parts diagram
Continued from S-36

Disassembly / Assembly

  1. 1
    Disassemble in the order shown in the figure.

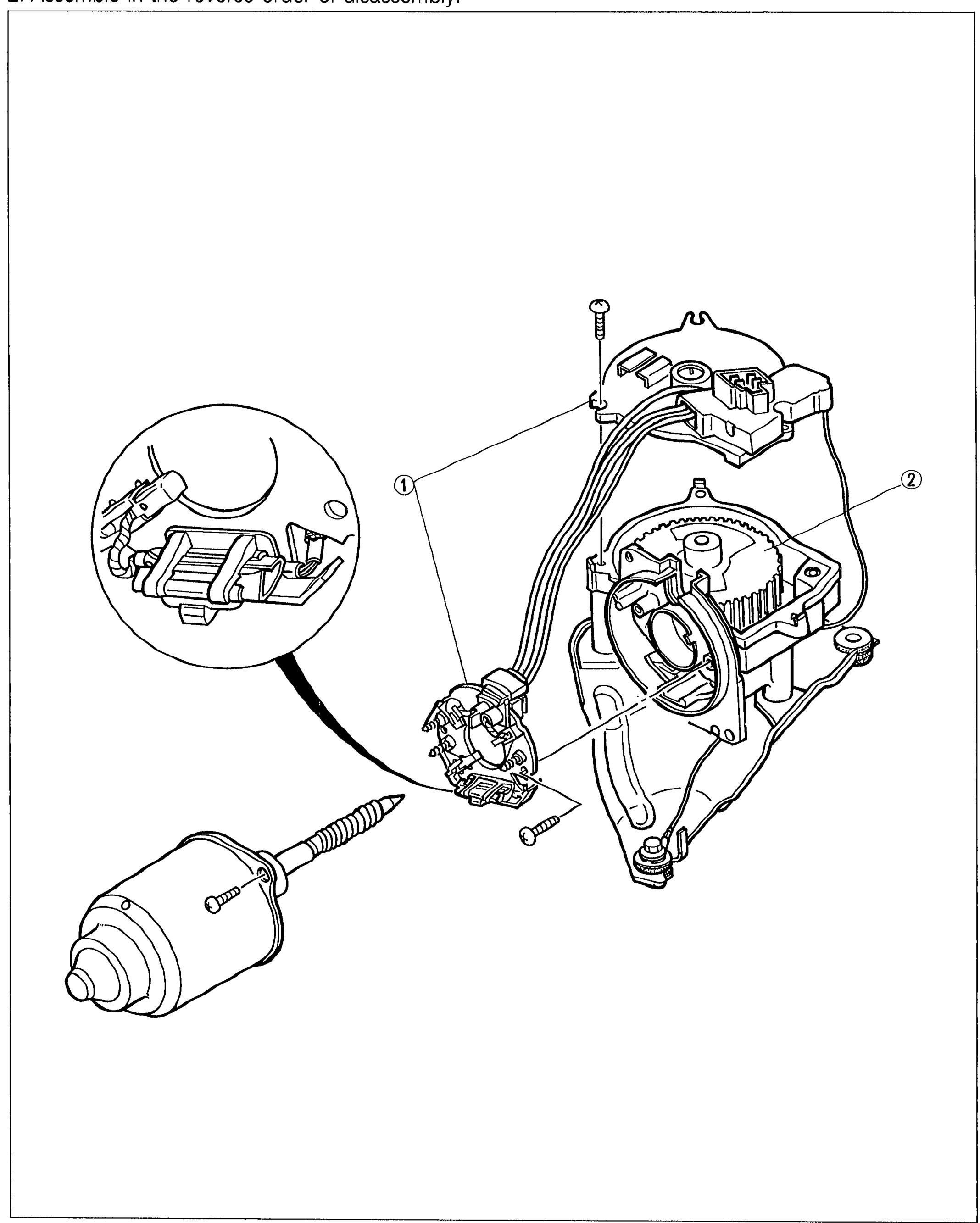

    Exploded view of the wiper motor showing the motor housing on the right with a gear cover removed exposing the gear shaft (callout 2), and the motor body with armature/brush plate holder (callout 1) pulled away to the left. A magnified inset at left shows the brush-plate-holder detail with brush springs and contacts.
    05U0SX-061
  2. 2
    Assemble in the reverse order of disassembly.

Component callouts

1
ComponentBrush plate holder
2
ComponentMotor gear shaft
